Product Details:
|
| Voltage: | 24V, 48V, 72V | Specification: | UL, CE, ISO9001, CCC, RoHS |
|---|---|---|---|
| Gearbox Diameter: | 42mm | Torque: | 2.4-120Kgf.cm |
| Speed(RPM): | 1.6-1620RPM | Continuous Current(A): | 0.01-1A |
| High Light: | 110V Brushless Geared Motor,Nema 23 Brushless Geared Motor,240V Brushless Gear Motor |
||

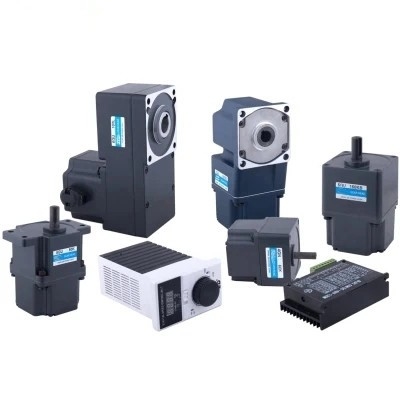

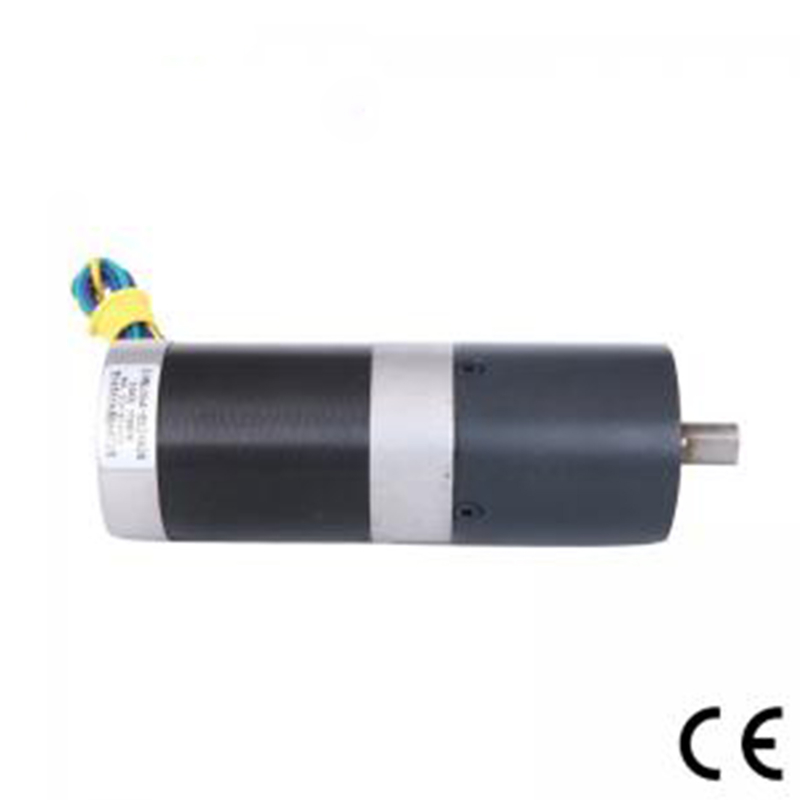

Low Noise Nema 23 Brushless Geared Motor 24 V 48V 110V 240V Customizable
Our team of engineers have decades of experience in designing and manufacturing Stepper, Brushless,and Worm, gears. This assures the optimum gear motor design for many gear motor application.
a Gearbox Brushless Motor motor is considered to be a high performance motor that is capable of providing large amounts of torque over a vast speed range (500 – 15,000 RPM). Per customer request, these motors can be wound to match a specific voltage, current and speed requirement. Other options include cabling, connectors and numerous shaft configurations.This creates a compact, gearmotor which makes a great choice for applications where high torque and space are important.
Electrical Specification:
| Model | ||
| Motor Part | 57BL05A-052AG26 | |
| Resistance | OHMS | 0.35 |
| Nominal Voltage | VDC | 24 |
| No-load Speed | Rpm | 4500±10% |
| No-load Current | Apms | 1 |
| Rated Speed | Rpm | 3000± 200 |
| Rated Torque | N.m | 0.33 |
| Torque Constant | N.m/A | 0.062 |
| Back EMF constant | V/kRPM | 6.5 |
| MOTOR SPECIFICATIONS WITH PLANETARY GEAR | ||
| Rated Torque | N.m | 6.1 |
| Rated Speed | Rpm | 115± 10% |
| Ratio | 26:1 | |
Wiring Diagram:
| FUNCTION | COLOR | |
| +5V | RED |
UL1007 26AWG |
| HALL A | YELLOW | |
| HALL B | GREEN | |
| HALL C | BLUE | |
| GND | BLACK | |
| PHASE A | YELLOW |
UL1015 20AWG |
| PHASE B | GREEN | |
| PHASE C | BLUE |
Mechanical Dimension
Planetary Gearbox 56mm
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder Metallurgy | Ball Bearings | ≤450 | ≤200 | ≤1000 | ≤0.03 | ≤0.1 | ≤1.5 |
| Number Of Gearbox Trains | 1 | 2 |
| Reduction Ratio |
1/6 |
1/15,1/18,1/26,1/47,1/66 |
| Length(mm) |
41.3 |
59.6 |
| Weight(g) |
491.0 |
700.0 |
Mechanical Dimension
Often ask questions:
Q: What are your main products?
A: We currently produce brushed DC motors, brushed DC gear motors, planetary DC gear motors, brushless DC motors, stepper motors, AC motors and high precision planetary gearboxes. You can view the specifications of the above motors on our website and you can email us to recommend the motors required according to your specifications.
Q: How to choose the right motor?
A: If you have pictures or drawings of the motor to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, motor working mode, required life and noise level, please feel free to let us know so that we can recommend A suitable motor according to your requirements.
Q: Do you have a custom service for your standard motors?
A: Yes, we can customize according to your requirements for voltage, speed, torque and shaft size/shape. If you need to solder additional wires/cables to the terminals or need to add connectors, capacitors or EMCs, we can also manufacture.
Q: Do you have a separate motor design service?
A: Yes, we would like to design the motor separately for the customer, but there may be some die development costs and design costs.
Q: What is your delivery time?
A: Generally speaking, it takes 15-30 days for our regular standard products and longer for our custom products. But we are very flexible about the delivery time, which will depend on the specific order.
