Product Details:
|
| Max Torque(N.m): | 24 | Working Temperature(℃): | -40~80 |
|---|---|---|---|
| Rated Output Torque(N.m): | ≤16 | Torque: | 2.4-120Kgf.cm |
| Speed(RPM): | 1.6-1620RPM | Continuous Current(A): | 0.01-1A |
| High Light: | Brushless Precision Gear Motor,CE Precision Gear Motor,1620RPM Brushless DC Motor |
||

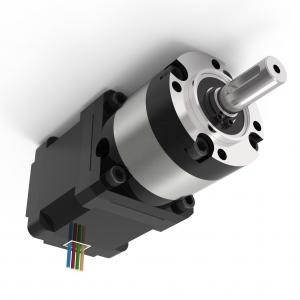

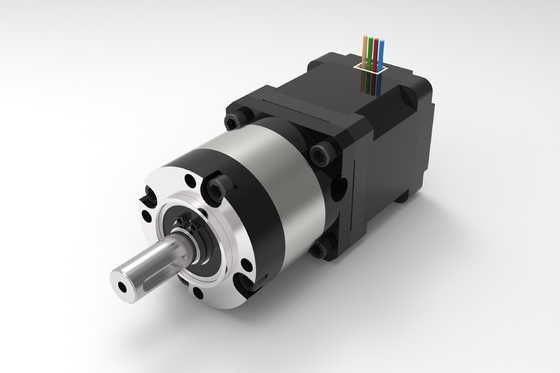

Low Noise DC Precision Gear Motor Brushless DC Motor 20000h Long Service Life
Application of Precision Gear Motor:
(Servo motor, stepper motor, bldc motor, brushless motor, electric motor, gear motor)
Solar utility, solar tracker, medical equipment, industrial automation, automobile, printing equipment,
robots, AGV, agricultural machinery, automation production line etc.
Competitive Advantages:
► ODM &OEM ► Noise Test ► Life Test
► Low noise, low backlash, high efficiency ► Water-proof Test ► High-low temperature test
► 20000h long working life ► Impact Test ► Air-tight test
► 100% quality checked and guaranteed ► Salt Spray Test
1.Genaral Specification of 42mm bldc motor:
| item | value |
| Warranty | 3months-1year |
| Place of Origin | China |
| Brand Name | GSKA |
| Model Number | 42mm Brushless dc motor |
| Usage | BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME |
| Certification | CE, RoHS |
| Torque | 0.56N.m |
| Protect Feature | Waterproof |
| Speed(RPM) | 4000Rpm |
| Shape | Square |
| phase | 3 |
| Voltage | 24V |
| Poles | 8-poles |
| Hall effect angle | 120degree electrical angle |
| Power | 77.5W |
2. Electrical Specification of brushless dc motor:
| Model | |||||
| Specification | Unit | 42BLS01 | 42BLS02 | 42BLS03 | 42BLS04 |
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles | 8 | |||
| Rated Voltage | VDC | 24 | |||
| Rated Speed | Rpm | 4000 | |||
| Rated Torque | N.m | 0.0625 | 0.125 | 0.185 | 0.25 |
| Rated Current | Amps | 1.8 | 3.3 | 4.8 | 6.3 |
| Rated Power | W | 26 | 52.5 | 77.5 | 105 |
| Peak Torque | N.m | 0.19 | 0.38 | 0.56 | 0.75 |
| Peak Current | Amps | 5.4 | 10.6 | 15.5 | 20 |
| Back E.M.F | V/Krpm | 4.1 | 4.2 | 4.3 | 4.3 |
| Torque Constant | N.m/A | 0.039 | 0.04 | 0.041 | 0.041 |
| Rotor Inertia | g.c㎡ | 24 | 48 | 72 | 96 |
| Body Length | mm | 41 | 61 | 81 | 100 |
| Weight | Kg | 0.3 | 0.45 | 0.65 | 0.8 |
| Sensor | Honeywell | ||||
| Insulation Class | B | ||||
| Degree of Protection | IP30 | ||||
| Storage Temperature | -25～+70℃ | ||||
| Operating Temperature | -15～+50℃ | ||||
| Working Humidity | 85% RH | ||||
| Working Environment | Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust | ||||
| Altitude | 1000 meters or less | ||||
3.Advantages of 4000rpm bldc motors:
A BLDC motor with three coils on the stator will have six electrical wires (two to each coil) extending from these coils. In most implementations three of these wires will be connected internally, with the three remaining wires extending from the motor body (in contrast to the two wires extending from the brushed motor described earlier). Wiring in the BLDC motor case is more complicated than simply connecting the power cell’s positive and negative terminals; we will look more closely at how these motors work in the second session of this series. Below, we conclude by looking at the advantages of by BLDC motors.
4.Applications of brushless motor:
We can expect to see BLDC motors used in a wider range of applications in the future. For example, they will probably be widely used to drive service robots—small robots that deliver services in fields other than manufacturing. One might think that stepper motors would be more suitable in this type of application, where pulses could be used to precisely control positioning. But BLDC motors are better suited to controlling the force. And with a stepper motor, holding the position of a structure such as a robot arm would require a relatively large and continuous current. With a BLDC motor, all that would be required is a current proportionate to the external force—allowing for more power-efficient control. BLDC motors may also be replacing simple brushed dc motors in golf carts and mobility carts. In addition to their better efficiency, BLDC motors can also deliver more precise control—which in turn can further extend battery life.
BLDC motors are also ideal for drones. Their ability to deliver precision control makes them especially suited for multirotor drones, where the drone’s attitude is controlled by precisely controlling the rotational speed of each rotor.
5.Customized of brushless electric motor:
Often ask questions:
Q: What are your main products?
A: We currently produce brushed DC motors, brushed DC gear motors, planetary DC gear motors, brushless DC motors, stepper motors, AC motors and high precision planetary gearboxes. You can view the specifications of the above motors on our website and you can email us to recommend the motors required according to your specifications.
Q: How to choose the right motor?
A: If you have pictures or drawings of the motor to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, motor working mode, required life and noise level, please feel free to let us know so that we can recommend A suitable motor according to your requirements.
Q: Do you have a custom service for your standard motors?
A: Yes, we can customize according to your requirements for voltage, speed, torque and shaft size/shape. If you need to solder additional wires/cables to the terminals or need to add connectors, capacitors or EMCs, we can also manufacture.
Q: Do you have a separate motor design service?
A: Yes, we would like to design the motor separately for the customer, but there may be some die development costs and design costs.
Q: What is your delivery time?
A: Generally speaking, it takes 15-30 days for our regular standard products and longer for our custom products. But we are very flexible about the delivery time, which will depend on the specific order.
