Product Details:
|
| Feature: | High Torque Low Rpm | Error: | ±5% |
|---|---|---|---|
| Rated Output Torque(N.m): | ≤16 | Torque: | 2.4-120Kgf.cm |
| Speed(RPM): | 1.6-1620RPM | Continuous Current(A): | 0.01-1A |
| High Light: | Biaxial Worm Brushless DC Gear Motor,Low Noise Brushless Gear Motor,DC12V Brushless Gear Motor |
||

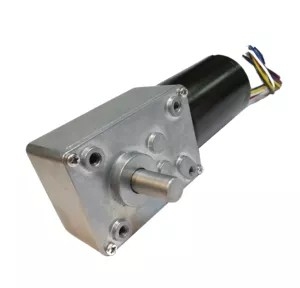

Low Noise Biaxial Worm Brushless DC Gear Motor Voltage: DC12V
Cause analysis of oil leakage of reducer:
the reducer inside and outside the pressure difference: the reducer operation process, friction heating and the influence of the ambient temperature, the temperature of the reducer rises, if there is no air vent or air vent blocked, the pressure inside the machine gradually increases, the higher the temperature inside the machine, the greater the pressure difference with the outside world, the lubricating oil under the action of the pressure difference, from the gap leakage.
The structure design of the reducer is unreasonable
1) The cover plate of the inspection hole is too thin, and it is easy to deform after tightening the bolt, so that the joint surface is uneven and oil leaks from the contact gap;
2) In the process of the deceleration mechanism, the casting is not annealed or aged, and the internal stress is not eliminated. Therefore, deformation is bound to occur, resulting in clearance and leakage;
3) There is no return tank on the box body, and the lubricating oil accumulates in the shaft seal, end cover, joint surface and so on. Under the action of pressure difference, it leaks outwards from the gap;
4) The structure design of shaft seal is unreasonable. The early reducer mostly used the oil ditch, felt ring type shaft seal structure, the assembly makes the felt compressed deformation, and the joint surface gap sealed. If the contact between the journal and the seal is not very ideal, the seal will fail in a short time due to the poor compensation performance of the felt. Although there are oil return holes in the oil ditch, it is easy to block, and the oil return function is difficult to play
Specification:
Voltage: DC12V
No-load Speed: 8rpm,14rpm,20rpm,40rpm,80rpm,130rpm,235rpm
Voltage: DC24V
No-load Speed: 16rpm,27rpm,40rpm,80rpm,160rpm,260rpm,470rpm
Error: ±5%
Wiring:
Datasheet:
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Often ask questions:
Q: What are your main products?
A: We currently produce brushed DC motors, brushed DC gear motors, planetary DC gear motors, brushless DC motors, stepper motors, AC motors and high precision planetary gearboxes. You can view the specifications of the above motors on our website and you can email us to recommend the motors required according to your specifications.
Q: How to choose the right motor?
A: If you have pictures or drawings of the motor to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, motor working mode, required life and noise level, please feel free to let us know so that we can recommend A suitable motor according to your requirements.
Q: Do you have a custom service for your standard motors?
A: Yes, we can customize according to your requirements for voltage, speed, torque and shaft size/shape. If you need to solder additional wires/cables to the terminals or need to add connectors, capacitors or EMCs, we can also manufacture.
Q: Do you have a separate motor design service?
A: Yes, we would like to design the motor separately for the customer, but there may be some die development costs and design costs.
Q: What is your delivery time?
A: Generally speaking, it takes 15-30 days for our regular standard products and longer for our custom products. But we are very flexible about the delivery time, which will depend on the specific order.
