Product Details:
|
| Insulation Resistance: | 100MΩ Min.,500VDC | Dielectric Strength: | 500VDC For One Minute |
|---|---|---|---|
| Rated Output Torque(N.m): | ≤16 | Torque: | 2.4-120Kgf.cm |
| Speed(RPM): | 1.6-1620RPM | Continuous Current(A): | 0.01-1A |
| High Light: | 24V Brushless DC Gear Motor,0.11N Brushless DC Gear Motor,OEM Brushless Gear Motor |
||

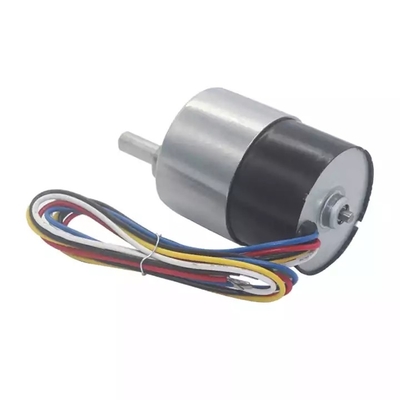

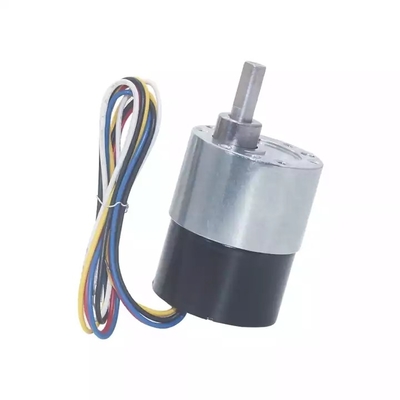

M 2500rpm 3 Phase Brushless DC Gear Motor Gearbox 24V 0.11N OEM
Control of reducer oil leakage countermeasures:
1. Improve the breathable cap and check hole cover plate: the internal pressure of the reducer is greater than the external atmospheric pressure is one of the main reasons for oil leakage. If we try to make the internal and external pressure balanced, oil leakage can be prevented. Although the reducer has a breathable cap, the air vent is too small, which is easy to be blocked by pulverized coal and oil. Moreover, every time you refuel, you should open the cover plate of the inspection hole, which will increase the possibility of oil leakage once opened, so that the originally non-leaking place will also leak. For this reason, an oil cup type breathable cap was made, and the original thin cover of the inspection hole was changed into 6 mm thick, and the oil cup type breathable cap was welded to the cover plate. The diameter of the air vent was 6 mm, which was convenient for ventilation and realized the uniform pressure. In addition, when refueling, the oil was refueled from the oil cup, without opening the cover of the inspection hole, which reduced the chance of oil leakage.
2. Free flow: To make the excess lubricating oil thrown on the bearing by the gear not accumulate at the shaft seal, the excess lubricating oil must flow back to the oil pool in a certain direction, that is, to achieve free flow. The specific method is to open an oil return groove tilted to the machine in the center of the bearing seat, and also open a gap at the straight mouth of the end cover. The gap is opposite to the oil return groove, so that the excess lubricating oil flows back to the oil pool through the gap and the oil return groove.

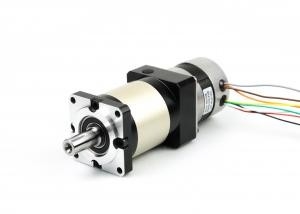

You Can Choose The Below Motor Type To Assemble JK Planetary Gearbox :
| Motor Series | Motor Size | Motor Power | Motor Rated Speed |
| Brushless dc motor | Nema17 | 26w | 4000rpm |
| 52.5w | |||
| 77.5w | |||
| 105w | |||
| Nema23 | 23w | 4000rpm | |
| 46w | |||
| 92w | |||
| 138w | |||
| 184w | |||
| Nema24 | 94w | 3000rpm | |
| 188w | |||
| 283w | |||
| 377w | |||
| Above only for representative products, products of special request can be made according to the customer request. | |||
PLANETARY-GEARBOX General Situation:
| SERIE | STAGE | RATIO | BACKLASH | EFFICENCE | NOISE | RATED LOAD | MAX LOAD |
| PG42 | 1 | 1:3 1:4 1:5 1:10 | ≤15 arcmin | 96% | ≤40db | 12 Nm | 18 Nm |
| 2 | 1:15 1:20 1:30 1:40 1:50 | ≤25 arcmin | 92% | ≤40db | 20 Nm | 30 Nm | |
| PG57 | 1 | 1:3 1:4 1:5 1:10 | ≤15 arcmin | 96% | ≤45db | 20 Nm | 30 Nm |
| 2 | 1:15 1:20 1:30 1:40 1:50 | ≤25 arcmin | 92% | ≤45db | 40 Nm | 60 Nm |
Genaral Specification of bldc motor:
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm＠450g |
| End play | 0.08mm＠450g |
| Max.radial force | 75N ＠20mm form the flange |
| Max.axial force | 15N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ Min.,500VDC |
Specification of JK57BLS motor:
| Model | ||||||
| Specification | Unit | 57BLS005 | 57BLS01 | 57BLS02 | 57BLS03 | 57BLS04 |
| Number Of Phase | Phase | 3 | ||||
| Number Of Poles | Poles | 4 | ||||
| Rated Voltage | VDC | 36 | ||||
| Rated Speed | Rpm | 4000 | ||||
| Rated Torque | N.m | 0.055 | 0.11 | 0.22 | 0.33 | 0.44 |
| Rated Current | Amps | 1.2 | 2 | 3.6 | 5.3 | 6.8 |
| Rated Power | W | 23 | 46 | 92 | 138 | 184 |
| Peak Torque | N.m | 0.16 | 0.33 | 0.66 | 1 | 1.32 |
| Peak Current | Amps | 3.5 | 6.8 | 11.5 | 15.5 | 20.5 |
| Back E.M.F | V/Krpm | 7.8 | 7.7 | 7.4 | 7.3 | 7.1 |
| Torque Constant | N.m/A | 0.074 | 0.073 | 0.07 | 0.07 | 0.068 |
| Rotor Inertia | g.c㎡ | 30 | 75 | 119 | 173 | 230 |
| Body Length | mm | 37 | 47 | 67 | 87 | 107 |
| Weight | Kg | 0.33 | 0.44 | 0.75 | 1 | 1.25 |
| Sensor | Honeywell | |||||
| Insulation Class | B | |||||
| Degree of Protection | IP30 | |||||
| Storage Temperature | -25～+70℃ | |||||
| Operating Temperature | -15～+50℃ | |||||
| Working Humidity | ≤85% RH | |||||
| Working Environment | Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust | |||||
| Altitude | 1000 meters or less |
|||||
Often ask questions:
Q: What are your main products?
A: We currently produce brushed DC motors, brushed DC gear motors, planetary DC gear motors, brushless DC motors, stepper motors, AC motors and high precision planetary gearboxes. You can view the specifications of the above motors on our website and you can email us to recommend the motors required according to your specifications.
Q: How to choose the right motor?
A: If you have pictures or drawings of the motor to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, motor working mode, required life and noise level, please feel free to let us know so that we can recommend A suitable motor according to your requirements.
Q: Do you have a custom service for your standard motors?
A: Yes, we can customize according to your requirements for voltage, speed, torque and shaft size/shape. If you need to solder additional wires/cables to the terminals or need to add connectors, capacitors or EMCs, we can also manufacture.
Q: Do you have a separate motor design service?
A: Yes, we would like to design the motor separately for the customer, but there may be some die development costs and design costs.
Q: What is your delivery time?
A: Generally speaking, it takes 15-30 days for our regular standard products and longer for our custom products. But we are very flexible about the delivery time, which will depend on the specific order.
