Product Details:
|
| Motor Speed: | 60r/min | Total Weight Of Vibration Part: | 13.75kg ± 0.25kg |
|---|---|---|---|
| Power Voltage: | 220V | Total Mass Of Two Arms: | 2.25 ± 0.25 Kg |
| Vibration Frequency: | 60 Times /60 S ± 2 S | Falling Distance: | 15mm Soil 0.3mm |
| Motor Power: | 70W | Ustomized Support: | OEM |
| High Light: | Cement Mortar Shaking Table,60r/min Shaking Table |
||

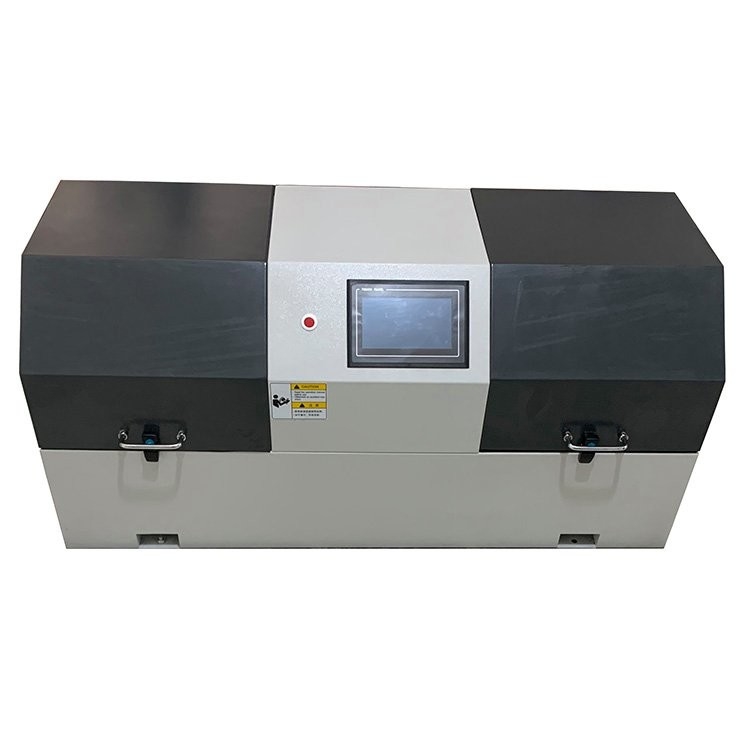

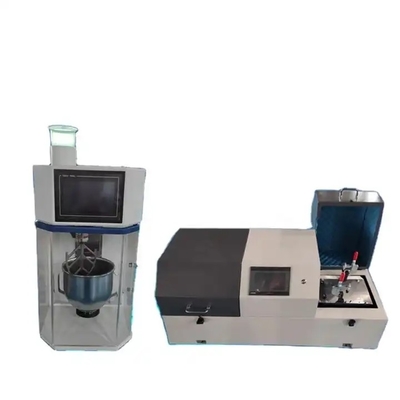

Laboratory New Standard Cement Mortar Shaking Table Touch Screen
Basic structure:
The vibrating table is composed of a table plate and a CAM that makes it jump. The platform plate is provided with a fixed test mold and a locking mechanism for the touch, and is connected with two stabilizing swing arms. The CAM is controlled by the controller to rotate according to certain requirements and make the platform plate rise steadily to a certain height after free fall, and the protrude head in its central position just impinges with the stop.
Technical requirement:
1, vibration platform amplitude: 15.0㎜±0.3㎜.
2, vibration time of 60 times: 60s±2s.
3, the total mass of the table (including swing arm, mold sleeve and locking mechanism) : 13.75㎏±0.25㎏, and the measured data mark on the side of the table.
4, the total mass of the two arm rod and the cross ribs: 2.25kg + 0.25kg.
5, the center of the table to the center of the arm shaft distance: 800㎜±1㎜.
6, when the head in the stop, the table surface level, the height of any corner of the four corners of its average height difference is not more than 1㎜.
7. The working face of the protruding head is spherical, and the contact with the stop is point contact.
8. The head and stop are made of fully hardened steel with Rockwell hardness ≥58HRC.
9. The CAM is supported by steel with Rockwell hardness ≥45HRC.
10. The locking mechanism can press the mold sleeve and test mold when it is locked.
|
Product model:
|
GS-20H
|
|
Motor speed:
|
60r/min
|
|
Motor power:
|
70W
|
|
Total weight of vibration part:
|
13.75kg ± 0.25kg
|
|
Falling distance:
|
15mm soil 0.3mm
|
|
Power voltage:
|
220V
|
|
Vibration frequency:
|
60 times /60S ± 2S
|
|
Total mass of two arms and their cross ribs
|
2.25 kg ± 0.25 kg
|
|
Distance from the center of the table to the center of the arm shaft
|
800mm ± 1mm
|
|
Motor model:
|
90TDY060-T
|
FQA:
Q1: What's your guarantee?
A: The product warranty is 12 months, but lifetime service. Non-consumable parts will be provided free of charge in the event of performance
failure due to non-human damage within 12 months.
Q2: How to provide video?
A:Yes. If needed, our engineers will record a special video for you.
Q3:Is your company a trading company or a factory?
A: Yes, we are manufacturing plant and trade (integration). 10 years focused on the field of test instruments. 5 years of export experience, warmly welcome to visit the factory.
Q4: After the order is placed, when will it be shipped?
A: Usually about 15 days. If we have stock, we can arrange shipment within 10 days. Please note that our production lead time depends on the specific project and the number of projects.
Q5:What about after-sales service and product quality?
A:The warranty is 12 months. After warranty, professional after-sales service team will provide perfect technical support. Help customers to solve the problems encountered in the process of use, professional and timely handling problems and complaints. Each instrument must be inspected and tested for 100% quality at the time of shipment and delivery. Product use training, each of our products provide video training to show you how to install and operate. Engineers will go abroad for training and maintenance.
Q6:How about the packaging of the equipment?
A: Before the machine is put into the standard export wooden box, the bubble film is covered first, which not only has good shock absorption and impact resistance, but also has the advantages of non-toxic, odorless, moisture-proof corrosion and good transparency.
