Hardware Products Impact Value Test Machine Power Supply 60 / 50hz

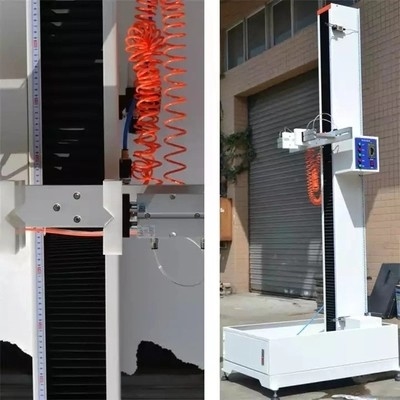

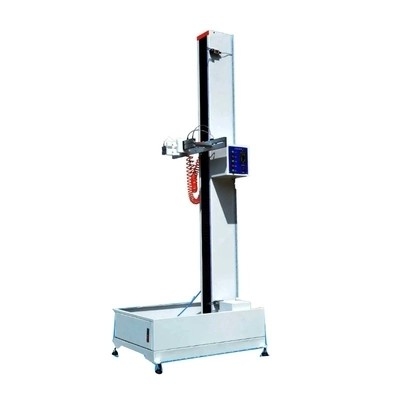

Large Image : Hardware Products Impact Value Test Machine Power Supply 60 / 50hz

Product Details:

Place of Origin:	Donggaun,china
Brand Name:	GSKA
Certification:	CE SGS ROHS UL
Model Number:	Drop Weight Impact Testing Machine

Payment & Shipping Terms:

Minimum Order Quantity:	negotiate
Price:	negotiate
Packaging Details:	The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time:	15-20working days after received deposit
Payment Terms:	L/C, T/T
Supply Ability:	150 Set / Sets per Month

Contact Now

Hardware Products Impact Value Test Machine Power Supply 60 / 50hz

Description

Place Of Origin:	Dongguan China	Control Mode:	Touch Screen Or PC Control
Impact Height:	300~1000mm	Weight:	75kg
LBrand Name:	GSKA	Impact Capacity:	20gf, 30gf, 50gf, 100gf (or Specified)
Drop Platform Area:	1000mmX1000mm	MOQ:	1 Set
High Light:	60hz Impact Value Test Machine , 50hz Impact Value Test Machine

Hardware Products Impact Value Test Machine Power Supply 60/50hz

Maintenance method:

1. After each test, the drop arm shall be dropped, so as not to deform the spring of the drop arm which has been reset for a long time, and affect the test effect. Before each drop, please first restore the position of the motor to stop rotating and then press the drop key;

2. After the installation of the new machine to the factory, appropriate low concentration oil must be added to the sliding rod. It is forbidden to add anti-rust oil or high concentration oil and a backlog of corrosive oil).

3. If there is too much dust in the oiling place for a long time, please lower the machine to the lower part, wipe the oil before, and then oiling the machine;

4. Drop testing machine is a mechanical equipment of impact force. When the new machine is used for more than 500 times, the screws must be fastened to avoid failure

5. The lifting shaft and chain of the testing machine need regular lubricating oil.

6. The oil of the gear reducer should be changed every six months.

7. All power supplies should be cut off when not working to ensure the cleaning of the lifting shaft.

8. Non-operator shall not operate the drop test machine at will

describe:

The process of automatic capture of drop hammer is as follows: Drop weight ascension, start the electromagnet, drive the capture set up at the same time, the release of drop hammer disconnect electromagnet, at the same time to impact test specimen, the hammer head collision sample after the play, the hammer body play speed is less than, the capture set and guide sleeve separation, capture set continue to fall, and then capture set lower part into the capture frame, hammer movement began, Until the tapered capture sleeve is clamped on the guide sleeve and guide column, * the whole hammer is clamped on the capture frame. When the test continues, the hammer is clamped by the capture sleeve, and the bottom cylinder is activated to push the guide sleeve and the capture sleeve to the height required for the next test.

Product Paramenters:

Model	GSKA-220A
Drop Height	300~1500mm Adjustable
Machine Dimensions	About 170012002315mm (LWH)
Display	LED digital screen
Max. Specimen Weight	80KG
Thickness of Ground Plate	10mm (Solid iron plate)
Size of Ground Plate	1700*1200mm
Max Size of Specimen	8008001000mm
Size of Arm supporter	16025010mm
Deviation of Drop Height	±10mm
Test Method	Face, edge and angle drop test
Transmission	Electronic
Horizontal Deviation of Impact Plate	≤1°
The Deviation of Horizontal Angle in Falling	≤1°
Voltage	AC 380V, 50Hz
Power	1.85KWA
Net Wight	300KG
**Design Criteria : ISTA-1A ISO 2248, JIS Z0202-87, GB/T4857.5-92

Hardware Products Impact Value Test Machine Power Supply 60 / 50hz 0

Customer Support Services:

Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair

FAQ:

1. How about your warranty?

Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.

2. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

3. What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.

4. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
