1000kn Compressive Strength Test Apparatus For Material Compression Test

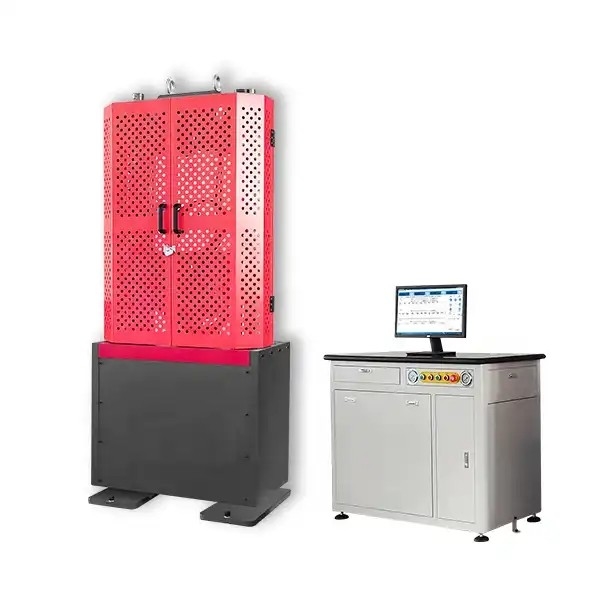

Large Image : 1000kn Compressive Strength Test Apparatus For Material Compression Test

Product Details:

Place of Origin:	Donggaun,china
Brand Name:	GSKA
Certification:	CE SGS ROHS UL
Model Number:	GSA47E

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiate
Packaging Details:	The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time:	15-20working days after received deposit
Payment Terms:	L/C, T/T
Supply Ability:	150 Set / Sets per Month

Contact Now

1000kn Compressive Strength Test Apparatus For Material Compression Test

Description

Warranty:	1 Years	Place Of Origin:	Guangdong, China
Max. Load:	300KN/600KN/1000KN	Elongation Resolution:	0.01mm
Max. Tensile Space:	300mm(excluding Piston Stroke)	Customized Support:	OEM, ODM
Load Accuracy:	±1%	Max. Piston Stroke Speed:	50mm/min

1000kn Compressive Strength Test Apparatus For Material Compression Test

product presentation:

Compressive strength testing machine is used for a variety of materials for instrument equipment static load, tensile, compression, bending, shearing, tearing, peeling and other mechanical properties test with mechanical testing machine, suitable for plastic sheet, pipe, profile, plastic film and rubber, wire and cable, steel, glass fiber and other materials of physical and mechanical properties test for material development, For physical property test, teaching research, quality control and other indispensable testing equipment, tension machine fixture as an important part of the instrument, different materials need different fixtures, is also an important factor of whether the test can be carried out smoothly and the accuracy of the test results.

Features:

1.Semi-open front hydraulic wedge clamps for easier loading and allowing rapid loading and unloading of specimens.
2.Rigid 4-column load frame construction providing superior axial and lateral stiffness
3.And minimum maintenance, low reaction at specimen failure.

4.With digital displacement transducer for the best positioning and measuring accuracy.
5.Hydraulic operated wedge grips available.
6.Including grip control system mounted direct at the machine.
7.Tooling for tension, compression, bend/flex, shear, and other tests.
8.With chrome plated columns for easy cleaning and longest life.

product standard:

Description	Parameters
Model	GSA47E	GSA48E	GSA49E
Max. load	300KN	600KN	1000KN
Load range	6KN-300KN	12KN-600KN	20KN-1000KN
Load accuracy	±1%
Elongation resolution	0.01mm
Piston stroke	250mm
Max. piston stroke speed	50mm/min
Elongation accuracy	±1%
Max. Tensile space	300mm(excluding piston stroke)
Max. Compression space	250mm(excluding piston stroke)
Display mode	PC
Clamping mode	Hydraulic
Operation mode	Manual
Flat sample thickness	0-15 mm
Clamping width	70mm	70mm	125mm
Round sample diameter	Φ10-φ32 mm	Φ13-φ40 mm	Φ13-φ60 mm
Compression plate size	170*170mm	170*170mm	204*204mm
Load frame dimensions	9007502200mm
Oil source dimensions	1200 x 550 x 1100mm

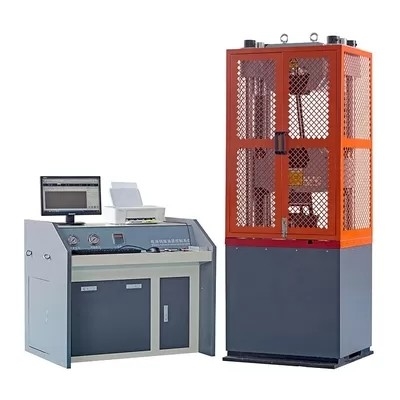

1000kn Compressive Strength Test Apparatus For Material Compression Test 0

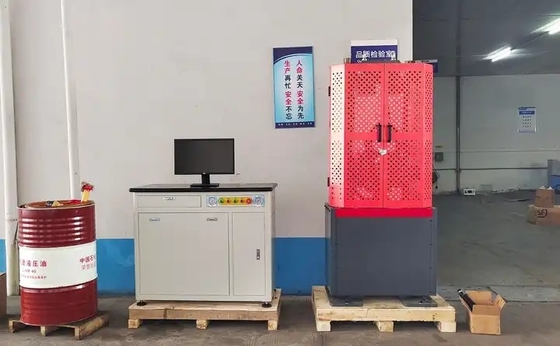

1000kn Compressive Strength Test Apparatus For Material Compression Test 1

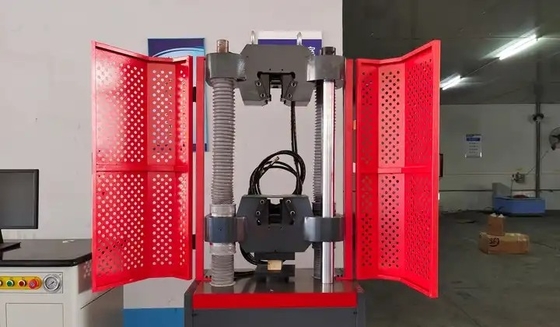

1000kn Compressive Strength Test Apparatus For Material Compression Test 2

FAQ:

1. Are you Manufacturer?Do you offer after-sales service?

A:How can I ask for that? And how about the warranty?
Yes, we are the one of professional and biggest Manufacturer for Customized Industrial Drying Oven, Hot Air Oven, Laboratory Oven, vacuum oven, Universal Tensile testing machine, Environmental Climatic chamber, Muffle furnace etc. in China .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What’s the delivery term?

A:For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?

A:Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4.How can I install and use the machine?

A:Once you have ordered the testing machines from us, we will send you the operation video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.
