Product Details:
|
| Warranty: | 1 Year | Humidity Range: | 20%-98%R.H |
|---|---|---|---|
| Temperature Fluctuation: | ≤±0.5℃ | Cooling Ratenside Dimension: | 80L~1000L (be Customized) |
| Temperature Range: | -40~+150 | Power: | Electronic |
| Humidity Deviation: | ± 2.5% RH | Place Of Origin: | Donggaun,china |
| High Light: | 600L Temperature And Humidity Test Chamber,UL Environmental Test Chamber |
||

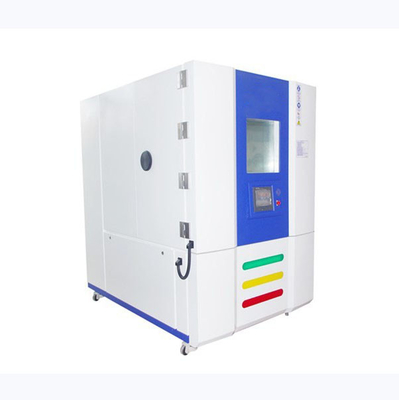

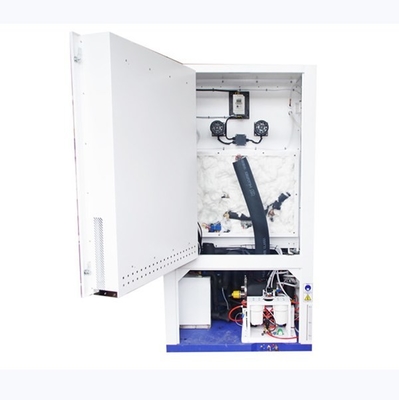

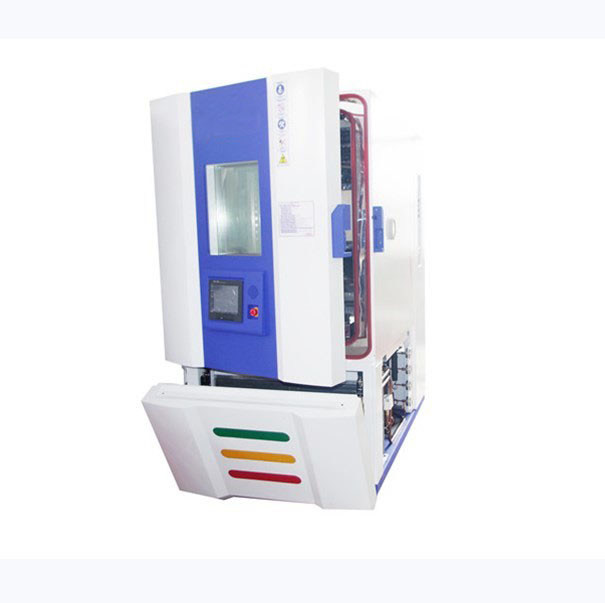

Temperature And Humidity Test Chamber , 600L Environmental Test Chamber -40C~150C
product presentation:
Temperature and humidity test chamber can also be called environmental test chamber or constant temperature and humidity chamber, constant temperature and humidity test chamber. The machine adopts high stability platinum PT-100 temperature resistant body, LCD Chinese and English touch screen/touch screen, with multiple groups of PID control function, equipped with RS-232C/485C and computer interface control, can simulate high temperature and high humidity/high temperature and low humidity/low temperature/high temperature/low temperature and other different environmental conditions. More with easy to operate and learn high accuracy programming control and fixed point control system, to provide the best test performance.
Product features:
1. Arc molding and fog surface line processing, high texture appearance, and the use of flat no reaction handle, easy to operate, safe and reliable;
2. Closed structure, strong circulating motor, low voice freezing device; With shockproof pad, so that the machine can keep quiet and stable during operation;
3. Has the power test function of the tested part (load test);
4. Philips lighting window lamp, built-in high temperature resistant defogging device, easy to observe the test of products in the box; With a variety of protective devices, safe and reliable performance.
5. Super thick insulation layer, observation window five layers of vacuum glass, cooling heat does not lose, to ensure the rapid and stable rise and fall.
| Properties | ||
| Model: GSA4060 | ||
| Test Space Volume(L) | 600L | |
| Temperature Test Parameters: | ||
| Test Space Dimension | 800W*800D*950Hmm | |
| External size |
1090W*1960D*1995Hmm
|
|
| Temp. Range | -40/+150℃ | |
| Temp. Constancy | 0.1-±0.5℃ | |
| Temp. Homogeneity | ±0.5-±2.0℃ | |
| Heating Rate | 3.0℃/min | |
| The temperature deviation | ≤2℃ | |
| Humidity control temperature range | 10℃~90℃ | |
| Humid. Range | 10-98%RH | |
| Humid. Constancy | ±1.0-±3.0%RH | |
| Temp. Constancy | ±5%RH(≤75%RH)；﹢2/﹣3%RH(≥75%RH) | |
| Temp. Homogeneity | ±3.0%RH | |
| Power | AC380V±10%, 50HZ, 3/N/PE | |
| Cooling Methods | Air-Cooled | |
| Installation Site |
|
|
|
|
|
|
|
|
|
|
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
A:-Yes, we are manufacturer
Chamber/Equipment/Machine/Cabinet . Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can
send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send
you new spare parts or provide on-site repair.
2. What’s the delivery term?
A: -If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a
special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
A:-Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. what about the products' quality?
A:-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national
authoritative third-party inspection agency.
5.what about the packing of equipment?
A:-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the
foam.
