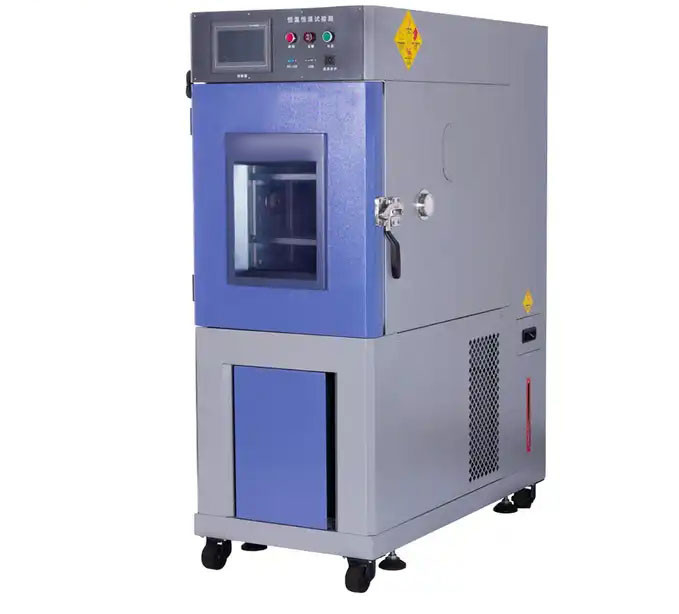

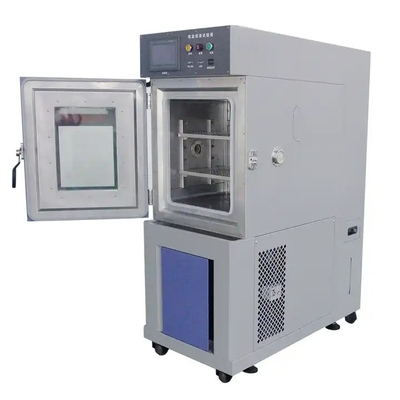

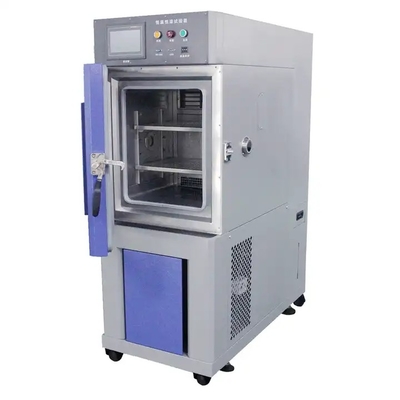

Air Cooled Temperature Test Chamber , 335 Litre Climatic Test Chamber

Air Cooled Temperature Test Chamber , 335 Litre Climatic Test Chamber
Air Cooled Temperature Test Chamber , 335 Litre Climatic Test Chamber Air Cooled Temperature Test Chamber , 335 Litre Climatic Test Chamber Air Cooled Temperature Test Chamber , 335 Litre Climatic Test Chamber

Large Image :  Air Cooled Temperature Test Chamber , 335 Litre Climatic Test Chamber

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: climatic chamber
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

Air Cooled Temperature Test Chamber , 335 Litre Climatic Test Chamber

Description
Warranty: 1 Year Product Name: Temperature Test Chamber
Internal Size: 580*765*750mm (W*D*H) Power Supply: 230V±10%,50Hz±1,60A, 3/N/PE, Earth Resistance < 4Ω
Max. Currency: 21A Test Space: 335 Litre
External Size: 870*1860*1800mm(W*D*H) Max. Power: 9.5KW
High Light:

21A Temperature Test Chamber

,

335 Litre Climatic Test Chamber

Air Cooled Temperature Test Chamber , 335 Litre Climatic Test Chamber



The box of climate experiment box is processed by CNC machine tool, which is beautiful and generous in shape, and adopts no reaction handle, easy to operate. Every year, the destruction of natural sunlight and moisture to the material will cause inestimable economic losses. The test chamber can be conducted by exposing the material to be tested in a controlled interactive cycle of sunlight and moisture, while increasing the temperature. When this product is used, water must be added to the tank, and then connected to the power supply, and then press the set key, at the same time observe the digital reading, set the required temperature value, when the set temperature exceeds the water temperature, heating off. At this time, the heater stops working. Because the water in the tank is static, there is a certain difference between the water temperature and the water temperature. After heating, the water temperature can be constant after constant temperature conversion. When the indicator light is on, it indicates that the heater has started to work. At this time, the selection button is moved to the measuring end to display the actual water temperature. When the water temperature reaches the water temperature you need, the constant temperature indicator light is on and the heating indicator light is off.


Products Tech Feature:

Test Space 335L
Internal size 580*765*750mm (W*D*H)
External size

W870mm*D1860mm*H1800mm(W*D*H)

Air Cooled Temperature Test Chamber , 335 Litre Climatic Test Chamber 0

Power supply 230V±10%,50Hz±1,60A, 3/N/PE, earth resistance < 4Ω
Max. Power 9.5KW
Max. Currency 21A
Cooling Method Air-Cooled(Cooling system)/(Optional water cooling )
Installation Site
  • Work station ground should be flat, good ventilation; no flammable article, corrosive gas or dust.

  • No strong electromagnetic radiation source nearby.

  • Close to drainage system ( within 2 meters for condensate water).

  • The ground bearing capacity not less than 10000kg/m2.

  • Prepare proper power supply and water supply.

  • If need water or gas supply, should be equipped with in advance;1.8.7 Ambient Temp: 5℃~25℃suggested, 25℃~35℃ function well;(for air-cooled model);5℃~40℃ function well (for water-cooled model)

  • Ambient Humid:≤85%RH.

  • Ambient Pressure:86KPa~106KPa.

  • Installation space assurances, as following.



Air Cooled Temperature Test Chamber , 335 Litre Climatic Test Chamber 1

A:100cm

B:80cm

C:150cm

D:80cm

E:60cm



Specifications:













Temp Test









Temp.Range:-70℃~+180℃

Note:



1.Test with no load, meeting GB/T5170 2008, if no other special notice.



2.Ambient Temp 25℃, good ventilation condition: function well if 35℃≥RT>25℃;Cool down rate and thermal load capacity will be affected by ambient low temperature.



Temp Fluctuation:±2℃
Temperature Uniformity:±0.5℃~±2℃
Temp Deviation :±0.1℃~±0.5℃
Heat Up Time:<45min(Room Temp.<+180℃)
Cooling Time:<50min(Room Temp→-70℃)



Test standard

1. GB/T 2423.1 Low Temp. Test 2.GJB 150.3 High Temp. Test
3.GB/T 2423.2 High Temp. Test 4.GJB 150.4 Low Temp. Test

Air Cooled Temperature Test Chamber , 335 Litre Climatic Test Chamber 2

1. Chamber door 2. Observation window
3. Control Pad 4. Work Lights
5. Cable port 6. Extensional control pad
7. Wheels 8. Power distribution board
Structure Mode Unitary.Test room is on the top, refrigerator is in the bottom; Power distribution control in the back; Main control panel in the front door, and the extended one is on the right-back side. Door opens from right to left. Air circulation channel and air conditioning system are at the back of test space:(centrifugal fan blade,air flow guiding device,heater,humidifier,Refrigeration heat exchanger,Temp and humidity sensing device.
Composition
  • Exterior material: Both sides static coated cold rolled steel
  • Interior material: SUS304 Stainless steel
  • Insulation material: Rigid polyurethane foam insulation layer

Load-bearing



  • Shelves load capacity:≤50Kg(averagely loaded)
  • Test case frame bearing capacity:≤20Kg(averagely loaded)
  • Test space total load weight(shelves and bottom)≤80kg
Chamber door
  • Single door with hinges on the left
  • Door size:580×750 mm(W×H)
  • Silicon rubber equipped and heating system inside for anti-condensation
Observation window Size:280×400mm(W×H), coated heating anti frost hollow glass
Cable ports 1 port with Φ100 mm on left and right sides, with screw caps and Soft silicone plugs.
Headlamp In the observation window
Shelves 2 shelves inside for samples; height adjustable
Drain Holes Condensate water drain holes for condensate water outside
Spill Port Located at the back of case for condensate water discharging
Mobile Castors Strong adjustable wheels
Separate Design Of Water/Electricity Humidity system and electric control system are separated for safety(patent no.:ZL201220245236.8)


Air Cooled Temperature Test Chamber , 335 Litre Climatic Test Chamber 3

Air Cooled Temperature Test Chamber , 335 Litre Climatic Test Chamber 4

Air Cooled Temperature Test Chamber , 335 Litre Climatic Test Chamber 5



FAQ:



1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?



A:-Yes, we are manufacturer



Chamber/Equipment/Machine/Cabinet . Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can



send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send



you new spare parts or provide on-site repair.



2. What’s the delivery term?



A: -If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a



special arrangement for you.



3. Do you accept customization service? Can I have my logo on the machine?



A:-Yes, of course. We can not only offer standard machines, but also customized



machines according to your requirements. And we can also put your logo on the machine



4. what about the products' quality?



A:-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national



authoritative third-party inspection agency.



5.what about the packing of equipment?



A:-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the



foam.
