PVC Heat Sealing Tester , PE Breathable Film Heat Sealing Tester

PVC Heat Sealing Tester , PE Breathable Film Heat Sealing Tester
PVC Heat Sealing Tester , PE Breathable Film Heat Sealing Tester PVC Heat Sealing Tester , PE Breathable Film Heat Sealing Tester PVC Heat Sealing Tester , PE Breathable Film Heat Sealing Tester

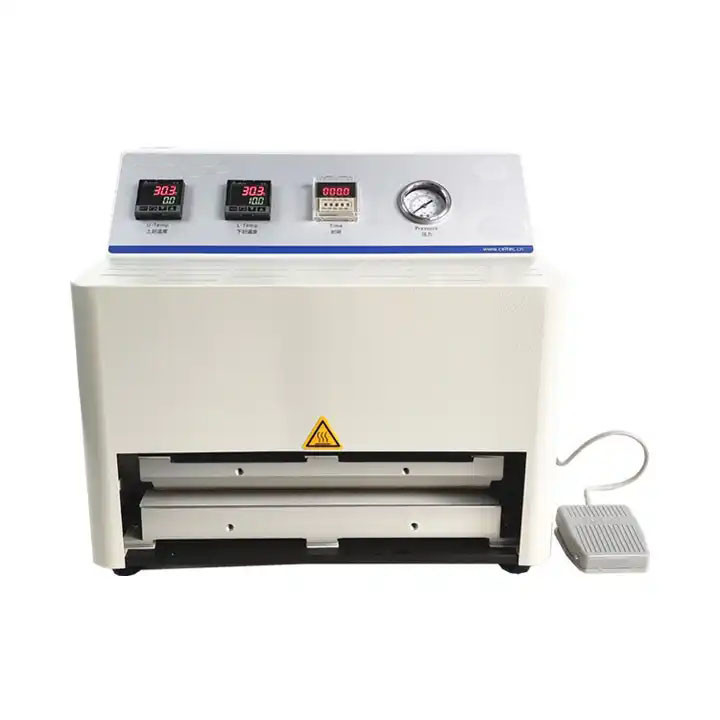

Large Image :  PVC Heat Sealing Tester , PE Breathable Film Heat Sealing Tester

Product Details:
Place of Origin: Donggaun,china
Brand Name: GSKA
Certification: CE SGS ROHS UL
Model Number: GSA89Z
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiate
Packaging Details: The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time: 15-20working days after received deposit
Payment Terms: L/C, T/T
Supply Ability: 150 Set / Sets per Month

PVC Heat Sealing Tester , PE Breathable Film Heat Sealing Tester

Description
Warranty: 1 Year Place Of Origin: Donggaun,china
Brand: Cell Instruments Test Samples: Flim,sheet, Polymer
Sealing Time: 0.1s~9999s Accuracy: ±0.2℃
Power Supply: AC 220V 50Hz Temp Range: Room Temp. ~ 300℃
High Light:

PVC Heat Sealing Tester

,

PE Breathable Film Heat Sealing Tester

PE Breathable Film Heat Seal Tester PVC Hard Sheet Heat Seal Test Equipment



Product introduction:



Heat seal tester microcomputer control, liquid crystal display, menu interface, PVC operating panel, digital P.I.D. Temperature control, lower double cylinder synchronous circuit, manual and foot two test start mode, upper and lower heat head independent temperature control, can be customized a variety of hot cover forms, aluminum filling sealing temperature equal heating tube, quick plug heating tube power connector, RS232 interface, anti-scald safety design, can effectively ensure the user's convenience and safety.



This product adopts hot pressing sealing method to measure the hot sealing temperature, hot sealing time, hot sealing pressure and other parameters of plastic film substrate, flexible packaging composite film, coated paper and other hot sealing composite film. Thermal materials with different melting point, thermal stability, fluidity and thickness will show different thermal sealing properties, and their sealing process parameters may be very different. HST-H3 heat seal test instrument, through the standardized design, standardized operation, can obtain accurate heat seal test index.

Sealing Temperature
Ambient~300℃
Temp Accuracy
±0.2℃
Heat Seal Time
0.1~9999s
Sealing Jaws
330mmx10mm Tf Coated
Sealing Pressure
0.15MPa~0.7MPa
Control
PLC and HMI touch screen
Gas Pressure
0.7 MPa
Port Size
Ф6 mm PU Hose
Power
220V, 50Hz
Dimensions
455*320*440mm (LWH)



PVC Heat Sealing Tester , PE Breathable Film Heat Sealing Tester 0

PVC Heat Sealing Tester , PE Breathable Film Heat Sealing Tester 1



FQA:



Q1: How long is the delivery time?


A:Normally 15-30 working days after received deposit,we have our own factory,the delivery time can be adjust flexible.

Q2: What is the warranty for the equipment?



A: One year. We can provide you lifelong technical support.

Q3: What is the payment terms?



A: T/T, L/C, Western Union, etc

Q4: How about the products quality?



A: Our products apply to ISO, ASTM, GB, etc

Q5: Is it OK to print my logo on machine product?



A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. What is your terms of payment?



A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.


or 100% L/C at sight .

Q7: Can we test sample before place order?



A: Of course,we can test sample and provide test report to you with free.
