Product Details:
|
| Warranty: | 2 Years | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Negative Pressure Of Cabinet Body: | (-50~-200)Pa | Diameter Of Salt Aerosol Particles (CMD): | (0.075±0.02) M |
| Customized Support: | OEM | Power: | Electronic |
| Model: | GS-458UY | Voltage: | 380/220v |
| Highlight: | 220v Fabric Testing Equipment,Mask Bacterial Filtration Efficiency Tester |
||

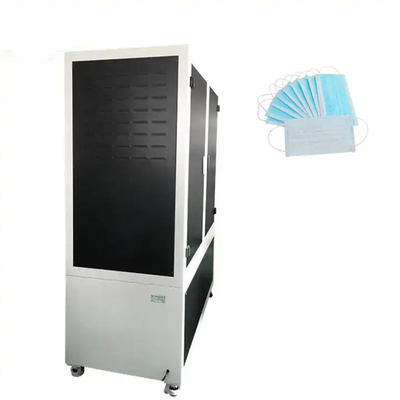

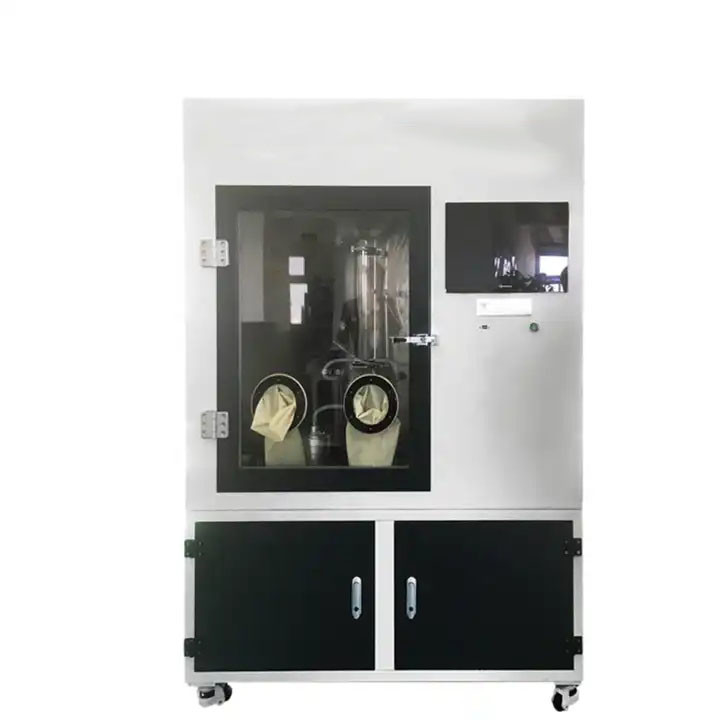

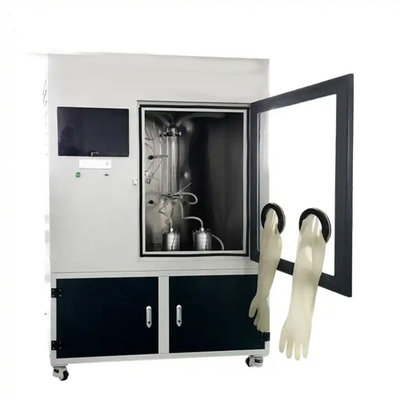

Mask Fabric Testing Equipment, Mask Bacterial Filtration Efficiency Tester
|
Model
|
GS-458UY
|
||
|
Item
|
Parameter Range
|
Resolution
|
Max Permissible Errors
|
|
Sampling flow rate of Path A
|
28.3L/min
|
0.1L/min
|
±2.5%
|
|
Sampling flow rate of Path B
|
28.3L/min
|
0.1L/min
|
±2.5%
|
|
Nebulization flow rate
|
(8~10)L/min
|
0.1L/min
|
±5.0%
|
|
Peristaltic pump flow rate
|
0.006~3mL/min
|
0.001mL/min
|
±2.5%
|
|
Flow meter fore pressure of path A
|
-20~0kPa
|
0.01kPa
|
±2.5%
|
|
Flow meter fore pressure of path B
|
-20~0kPa
|
0.01kPa
|
±2.5%
|
|
Nebulization flow meter fore pressure
|
0~300kPa
|
0.1kPa
|
±2.5%
|
|
Negative pressure of aerosol chamber
|
-90~-120Pa
|
0.1Pa
|
±2.0%
|
|
Negative pressure of cabinet body
|
(-50~-200)Pa
|
||
|
Data Storage
|
>100000 Groups
|
||
|
Feature of HEPA filter
|
The filtration efficiency of particles above 0.3um is ≥99.99%
|
||
|
Mass mean diameter of aerosol generator
|
Mean particle size (MPS) (3.0±0.3)μm, geometric std. deviation≤1.5
|
||
|
Andersen
|
I>7μm, II. 4.7-7μm, III. 3.3-4.7μm, IV. 2.1-3.3μm, V. 1.1-2.1μm
|
||
|
VI. 0.6-1.1μm
|
|||
|
Size of aerosol chamber
|
600mm(Length)×85mm(Diameter)×3mm(Thickness)
|
||
|
Total particle number of positive control sampler
|
2200±500cfu
|
||
|
Ventilation flow of negative pressure cabinet
|
≥5m3/min
|
||
|
Negative pressure cabinet door size
|
1000mm×730mm (L×W)
|
||
|
Dimension of main machine
|
1180mm×650mm×1300mm (L×W×H)
|
||
|
Dimension of stand
|
1180mm×650mm×600mm (L×W×H), height adjustable within 100mm
|
||
|
Power supply
|
AC220V±10%,50Hz
|
||
|
Noise
|
<65dB(A)
|
||
|
Weight
|
Approx. 230kg
|
||
|
Power
|
<1500W
|
||
FQA:
Q1: How long is the delivery time?
A:Normally 15-30 working days after received deposit,we have our own factory,the delivery time can be adjust flexible.
Q2: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q3: What is the payment terms?
A: T/T, L/C, Western Union, etc
Q4: How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc
Q5: Is it OK to print my logo on machine product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
or 100% L/C at sight .
Q7: Can we test sample before place order?
A: Of course,we can test sample and provide test report to you with free.
