40KN Tensile Strength Testing Equipment For Electronic Textiles

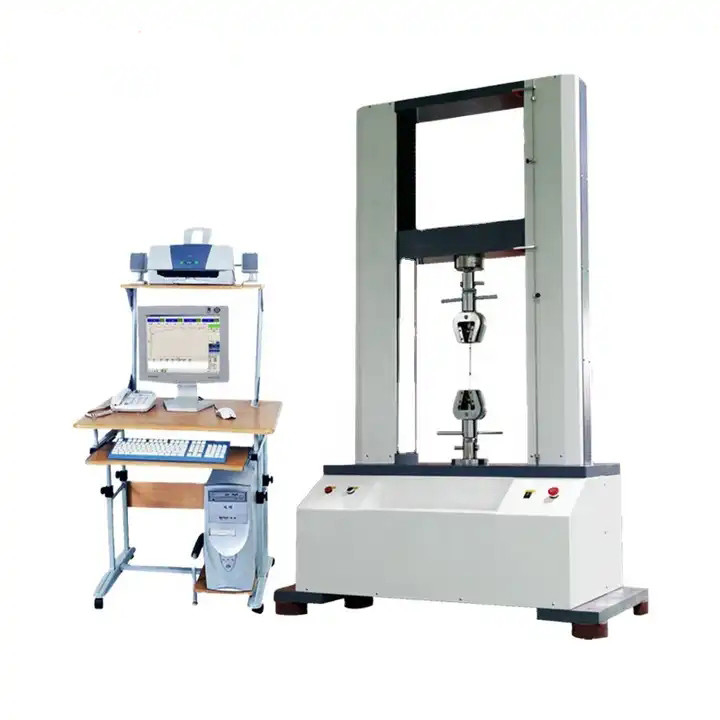

Large Image : 40KN Tensile Strength Testing Equipment For Electronic Textiles

Product Details:

Place of Origin:	Donggaun,china
Brand Name:	GSKA
Certification:	CE SGS ROHS UL
Model Number:	GSA-604F

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiate
Packaging Details:	The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases.
Delivery Time:	15-30working days after received deposit
Payment Terms:	L/C, T/T
Supply Ability:	150 Set / Sets per Month

Contact Now

40KN Tensile Strength Testing Equipment For Electronic Textiles

Description

Warranty:	1 Year	Place Of Origin:	Guangdong, China
Stroke Resolution:	0.01mm	Max Capacity:	40KN
Motor:	Servo Motor	Power:	Electronic
Test Speed:	0.5~500mm/min	Force Precision:	±0.5%
Highlight:	40KN Tensile Strength Testing Equipment , 500mm/min Tensile Strength Testing Equipment , Electronic Textiles Tensile Testing Machines

40KN Tensile Strength Testing Equipment For Electronic Textiles

product presentation of Tensile strength tester:

GSA series tensile strength testing machine adopts the parallel processing technology of plastic film thread. During the testing process, the force-displacement, force-time, displacement-time and stress-strain curves are displayed at the same time. You can easily switch to the curve screen to view, and you can view the user Settings. The strength tester has a flexible and powerful custom test mode, with constant speed, position shift, given strength, given power rate, given stress, constant stress rate, constant strain, constant strain rate and other fixed control mode, can achieve complex multi-step nested cycle control, can be set to automatic return.

Advantage

Ø 24 hours online Ø 35 years experiences Ø Sample chamber of each model Ø Best price, fast delivery Ø OEM,ODM Ø Oversea offices Ø Own import and export business license ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE

Customer Support Services

Ø Installation Ø Training (Training customer employees) Ø Calibration Ø Preventative maintenance Ø Replacement parts Ø Assistance via phone or internet Ø On-site diagnosis and repair/online diagnosis and repair

GSA-604F tensile strength testing machine specifications

Model	GSA-604F
Support Customized	Yes
Max capacity	5kg,10kg,25kg,50kg,100kg,250kg,500kg,1000kg,2000kg,5000kg,etc.(It is optional.) can be setting
Induction method :	Precision load cell (sensor)
Max. Load Capacity :	5000kg
Force Resolution/Accuracy:	± 0.5%
Accuracy class :	0.5
Resolution:	1/1,000,000
Test width:	400mm(Standard specifications special specifications can be customized)
Test stroke :	Max.700 mm( included the fixture)
Stroke Resolution:	0.01mm
Speed range:	0.001-20inches/min
Reference Machine Dimension:	800×530×1600mm (LWH) Support Customized
Power :	1 phase 220V 50/60Hz
Packing	Standard Export plywood case
Force system	servo drives + Servo motor + precision ball screw drive
Control system	Mechanical transmission + TM2101 + Pulse Command and Control System control
Measurement and Control System	TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher
Obtain data	The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing
Displacement Control:	Displacement encoder count with four frequency technology So that the displacement of four times the resolution can up to 0.0005mm
Safety devices:	1. overload, emergency stop device 2. the upper and lower travel limit devices 3. the test is completed automatic shutdown device
Reference standard	ASTM D903, ASTM E8 CNS11888, JIS K6854, PSTC7 ASTM D903,GB/T16491CNS-11888,JIS K6854, PSTC-7 ,ASTM E4,ASTM D828,ASTM D882,ASTM,D1938,ASTM D 412 ,ISO 8339ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 , ISO 527 ,ISO 178 and other standards.

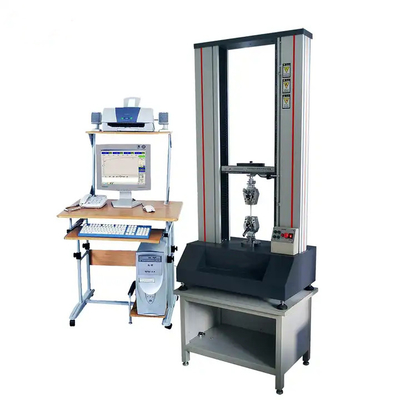

40KN Tensile Strength Testing Equipment For Electronic Textiles 0

40KN Tensile Strength Testing Equipment For Electronic Textiles 1

FAQ:

1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE

maintenance,while considering of sea transportation, we can extend 2 months for our customers.

If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or sky video chat if necessary. After

confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after

deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put

your logo on the machine.

4. How to install and use the product?

We will send you operating instructions, English video by Email. Or you can download on our officail website directly.

Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to

use. And if possible, we can also install your machine at site.
