Product Details:
|
| Warranty: | 1 Year, | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Test Chamber Temperature: | Salt Spray Method (NSS ACSS)35±1℃ | Compressed Air Pressure: | 1.00±0.01kgf/c㎡ |
| Temperature Precision: | ±1℃ | Power: | Electronic |
| Air Cylinder Temp: | Salt Spray Method (NSS ACSS)47±1℃ | Temperature Fluctuations: | ≤0.5℃ |
| Highlight: | Cyclic Corrosion Salt Spray Test Chamber,PH6.5 Salt Spray Test Chamber,PH7.2 Cyclic Corrosion Test Chamber |
||

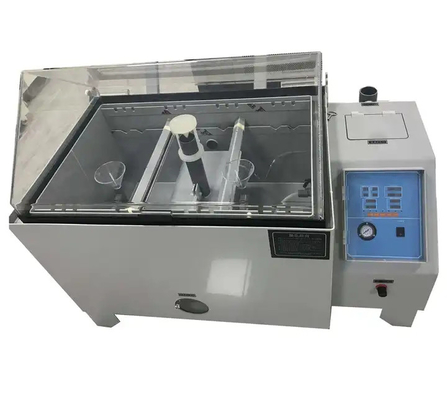

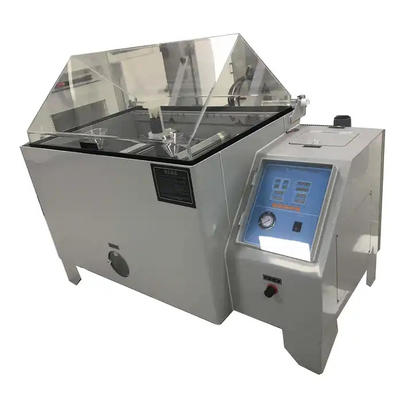

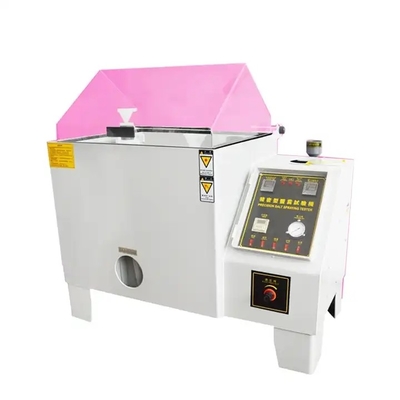

Cyclic Corrosion Salt Spray Test Chamber PH 6.5-7.2 For Metal Testing
product presentation:
Salt Fog Test Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing. anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Features
1. Durable hard 8mm PVC construction, anti-corrosion and easy to clean.
2. Reservoirs with mixing system on stand.
3. Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4. Exposure zone lined with corrosion-resistant PVC sheets.
5. Clear cover allows viewing of test conditions.
6. Peaked cover prevents dripping of condensation onto samples.
7. Water seal and water level protection system.
8. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9. Automatic DI water fills to humidifying tower.
10. Digital temperature control.
11. Integral over-protection on heaters.
12. Low water cut-off protection on humidifying tower.
| Model | GSA-Z540 | GSA-Z541 | GSA-Z542 |
| Inner size | 600×450×400m | 900×600×500mm | 1100×750×500mm |
| External size | 1075×630×1100mm | 1400×880×1280mm | 1800×900×1400mm |
| Sample tray | Diameter 10mm glass fiber rod, anti-rust V-shape plastic steel to make sure sample in 15~30 degree inclined |
||
| Test Chamber Temp | Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method (CASS) 50±1℃ |
||
| Air Cylinder Temp | Salt Spray Method (NSS ACSS)47±1℃ | ||
| PH | 6.5~7.2;3.0~3.2 | ||
| Brine Temperature | 35℃±1℃ | ||
| Compressed air pressure | 1.00±0.01kgf/cm2 | ||
| Spray Quantity | 1.0~2.0ml/80 cm³/h(Collect at least 16 hours, the average) | ||
| Test room relative humidity | 85%RH or more | ||
| Spraying method | Continuous and Periodic spray type | ||
| Temperature Uniformity | ≤0.5℃ | ||
| Temperature Precision | ≤2.0℃ | ||
| Safety Protection Devices | ±1℃ | ||
| Power | 220V/10A | 220V/15A | 220V/20A |
FAQ
1.Are your company a trading one or a factory?
Factory + trade (integration), began to engage in the R & D and production of test instruments in 2011 and established the foreign trade department in 2013. OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
