Product Details:
|
Range: | 0~20HW | Precision: | 0.5HW |
---|---|---|---|
Measuring Range: | 5~18HW | Display Resolution: | 1HW |
Measuring Range (rockwell, Vickers): | 25~110HRE,58~131HV | Measuring The Material: | Series, Aluminum Alloy (1100 ~ 7075) |
Measuring The Thickness (mm): | 1~20 | The Anvil Block Diameter (mm): | 6 |
High Light: | Portable Wechsler Hardness Tester,0.5HW Wechsler Hardness Tester,Wechsler Hardness Measuring Instrument |

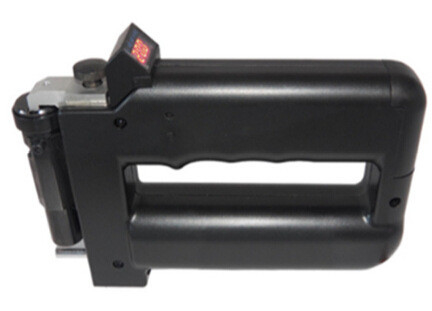

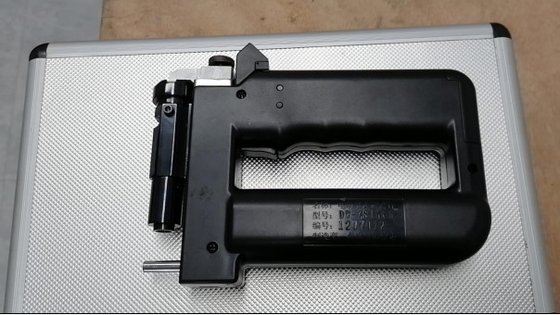

Portable Electric Wechsler Hardness Tester Hardness Measuring Instrument
Product summary:
GSKA series electric Wechsler hardness tester, based on the principle of mechanical pressing measurement, intelligent design can be convenient and fast field detection of metal hardness. The micro motor provides the power, and the finger can finish the measurement by tapping the switch, which greatly improves the work efficiency of the quality inspection personnel; The innovative design realizes the calibration of hardness value without disassembly, and the operation is simple and fast; Original probe pressure protection device and pre-compression device of the measured part improve the detection accuracy. Digital display, measurement experience. It can meet the testing needs of production quality control and qualification determination, and test batches of products one by one. It is widely used in the aluminum profile industry and many doors and Windows curtain wall enterprises, engineering quality inspection and technical supervision departments, and is a professional instrument to improve the production pass rate and save costs.
Functional characteristics:
l Small portable instrument, small size, light weight, one-hand operation, can quickly measure the hardness of aluminum alloy material;
l No difficult operation skills, especially suitable for production site, sales site or construction site for rapid and non-destructive hardness inspection of products;
The test process does not require sampling, and the hardness of the material can be nondestructively detected;
Using the micro motor as the power, the battery pack as the power supply, only a finger to tap the switch to achieve measurement, greatly reducing the workload of quality inspection personnel in batch testing;
l Contains probe pressure protection device, which can greatly eliminate the detection error caused by human factors, and the measurement accuracy is higher;
l Non-disassembly hardness calibration technology, more simple and faster than the traditional clamp hardness tester calibration;
l The pre-pressing device of the tested part can adjust the perpendicularity between the tested material and the probe during testing to avoid the detection error caused by the deviation of the prepared material during testing;
l One-click operation is used in the detection operation, which can realize the whole process of power control detection operation, efficient and convenient;
The size between the probe and the anvil is adjustable, suitable for the detection of different thickness profiles;
l digital display screen, easy to read intuitive, measurement experience.
Working principle
The GSKA series electric Wechsler hardness tester is an indentation hardness tester. Under a certain pressure, the needle is pressed into the surface of the sample, and the depth of the pressing is inversely proportional to the hardness of the material. The Wechsler hardness is represented by the symbol HW, for example, a Wechsler hardness value of 16 can be represented as 16HW, and the hardness value is displayed directly on the screen. For the sample beyond the large range, the value is still displayed 20 after the addition of force; For the sample lower than the small range, the pointer does not change significantly after the force is applied, and is still displayed as 0.
Application field
l Aluminum type exterior material
l Doors and Windows curtain wall, decoration and decoration works
l Tourism, sports, cultural products aluminum profile processing
l Aluminum tube, aluminum plate, aluminum material, aluminum rod and other aluminum products production and processing
Applicable condition
l The surface of the sample should be clean and free of dust and oil, and the dirt on the surface, especially the fine sand, will greatly affect the measurement accuracy;
The coating on the surface of the sample will seriously affect the measurement accuracy, and the hardness measurement should be carried out after removing the coating with sandpaper or solvent;
l The sample to be tested should be aluminum alloy (1100~7075 series) material with a hardness value in the range of 0~20HW;
l The instrument should be avoided in strong vibration, humidity and corrosive gas environment;
l This series of products according to the different thickness of the measurement has six different models for users to choose, different models of the instrument display and calibration methods are different, before use according to the shape of the sample to be tested, size and thickness, choose the appropriate instrument for measurement.
