Product Details:
|
Warranty: | 1 Year, | Place Of Origin: | Guangdong, China |
---|---|---|---|
Model Number: | GSA-307T | Duration Time: | 2hours Or 8 Hours |
Test Temperature: | RT~7 ℃ | Test Humidity: | 45%-75%RH |
Dust Concentration: | 2~4Kg/m3 | Oscillator Period: | Oscillator Period |
High Light: | OEM Dust Test Chamber,2Kg/m3 Dust Test Chamber,4Kg/m3 Stainless Steel Test Chamber |

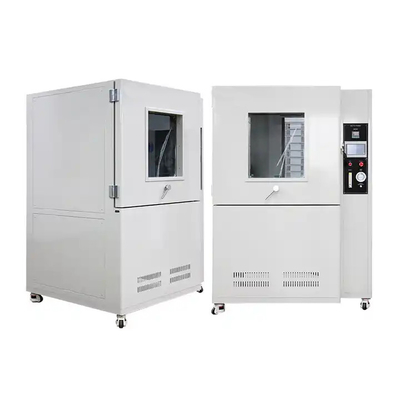

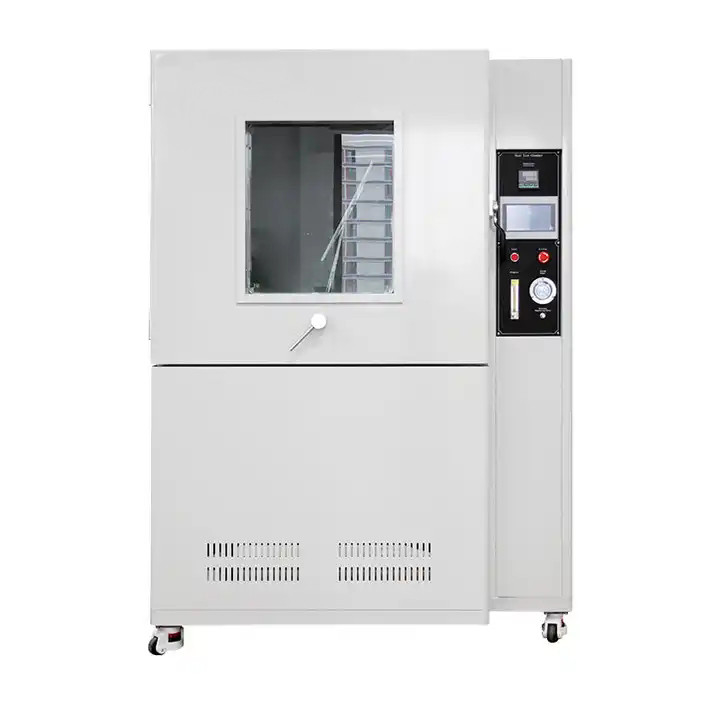

Stainless Steel Ambient Dust Test Chamber Is Used In Laboratories
product presentation:
It simulates the destructive effect of natural wind and sand climate on the product and is suitable for testing the seal performance of the product enclosure. It is mainly used for testing the two grades of IP5X and IP6X specified in the enclosure protection standard.Carrying dust vertical circulation of air, test equipment with dust can be recycled, the whole duct made of imported advanced stainless steel plate at the bottom of the air duct connected with taper hopper interface, fan outlet directly connected to the air duct, and then in the appropriate position will studio top spread port access studio, forming vertical blowing dust "O" type closed loop system, make the air can flow smoothly, large extent makes the dust dispersed evenly.A single high power low noise centrifugal fan is used to adjust the wind speed according to the test requirements.
Structural characteristics
1. The user can independently control the conditions of F1, F2 and F3 on the panel with the powerful dust spraying device.
2. Use vibration equipment to make the dust concentration of each spraying be the same.
3. The precision dust concentration collector can reduce the estimation of concentration due to improper operation.
4. Dust and dust can be Shared
5. The sand and dust test box is applicable to test the sealing performance of the product enclosure. It is mainly used for the test of the two grades of IP5X and IP6X specified in the enclosure protection standard.
Model | GSA-307T | GSA-308T | GSA-309T | ||
Inner size(mm) | 800*800*800 | 1000*1000*1000 | 1000*1000*1500 | ||
Species | Talcum powder | ||||
Duration time | 2hours or 8 hours | ||||
Test temperature | RT~7 ℃ | ||||
Test humidity | 45%-75%RH | ||||
Nominal diameter of metal screen mesh ·
|
50μm | ||||
Nominal spacing between lines ·
|
75μm | ||||
|
≥2m/s | ||||
Dust concentration | 2~4Kg/m3 | ||||
Dust requirements | Meet with JIS6 requirement(Or national standards) | ||||
Oscillator period | 0-99H99M99S | ||||
Blowing dust set | The time of continuous and periodic dusting is determined arbitrarily | ||||
External material | High quality cold rolled steel sheet electrostatic spraying | ||||
Inner material | SUB304 Precision welding of quality stainless steel plate | ||||
Thermal insulation material | Ultrafine glass fiber cotton | ||||
Safety protection | Overtemperature and overlimit alarm protection, power leakage, short circuit, lack of phase protection, undervoltage protection | ||||
Power | AC220/380V±10%,1PH,50/60HZ | ||||
|
Vacuum pump one, gas flowmeter, air source excuse, pressure gauge, oil and water separator |
1. Are your company a trading one or a factory?
Factory + trade (integration), began to engage in the R & D and production of test instruments in 2011 and established the foreign trade department in 2013. OEM is also acceptable for us.
2. How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
5. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
