Product Details:
|
| Product Name: | Hydraulic Universal Tensile Testing Machine | Model: | GSA-430S |
|---|---|---|---|
| Measuring Range: | 100-2000KN | Weight: | 2.2T-6.5T |
| Warranty: | 1year | Power Supply: | AC 3 Phase 380V/50Hz |
| Accuracy Grade: | 0.5 | Brand Name: | GSKA |
| Highlight: | 100KN Universal Tensile Testing Machine,2000KN Tensile Testing Machines,Hydraulic Tensile Testing Machines |
||
100-2000KN Hydraulic Universal Tensile Testing Machine For Sale
product presentation:

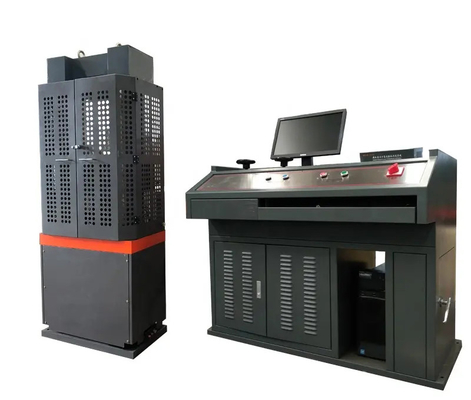

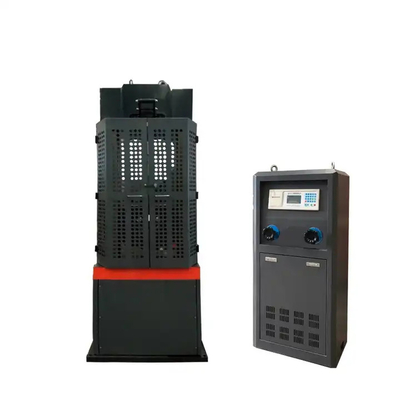

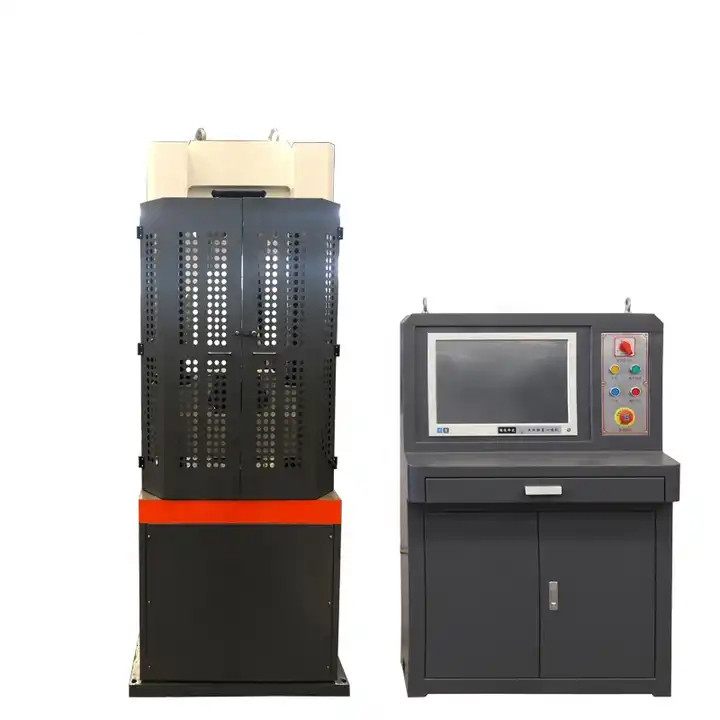

hydraulic universal testing machine adopts a cylinder-mounted mainframe structure, which is mainly used for stretching, compression, bending, etc. of metal materials, non-metal materials, product parts, components, structural parts, standard parts. Mechanical properties test.
This series of testing machines can also be used for material stretching, compression and bending tests in this environment if the environmental device is added. For example: high temperature stretching, low temperature stretching, compression and other tests.
Applicable to iron and steel, metallurgy, building materials, quality inspection centers, water conservancy and hydropower, highway bridges, research institutes, colleges and universities mechanics and other factories and mines and testing and research institutions.
Characteristic:Double screws,Security fence
Technical Parameters:
| Product Name | High Performance Universal testing machine 300kN for sale | ||||
| Model | GSA-430S | GSA-431S | GSA-432S | GSA-433S | GSA-434S |
| Max. test pressure(KN) | 100 | 300 | 600 | 1000 | 2000 |
| Accuracy | extra fine grade | extra fine grade | extra fine grade | extra fine grade | extra fine grade |
| Stretch chuck maximum distance | 600mm | 650mm | 700mm | 700mm | 750mm |
| Sample clamping thickness | 0-15mm | 0-15mm | 0-30mm | 0-40mm | 15-50mm |
| Sample clamping Diameter | 6-22mm | 10-32mm | 13-40mm | 10-50mm | 20-60mm |
| Pressing plate the maximum distance | 30-300mm | 30-300mm | 30-300mm | 30-300mm | 50-300mm |
| Piston work stroke | 150mm | 150mm | 200mm | 200mm | 200mm |
| Oil Pump Power | 0.75KW | 0.75KW | 1.5KW | 1.5KW | 1.5KW |
| Measuring range | 0-100KN | 0-300KN | 0-600KN | 0-1000KN | 0-2000KN |
| Weight | 2.2T | 2.6T | 3.2T | 3.6T | 6.5T |
FQA:
Q1: What's your guarantee?
A: The product warranty is 12 months, but lifetime service. Non-consumable parts will be provided free of charge in the event of performance
failure due to non-human damage within 12 months.
Q2: How to provide video?
A:Yes. If needed, our engineers will record a special video for you.
Q3:Is your company a trading company or a factory?
A: Yes, we are manufacturing plant and trade (integration). 10 years focused on the field of test instruments. 5 years of export experience, warmly welcome to visit the factory.
Q4: After the order is placed, when will it be shipped?
A: Usually about 15-30 days. If we have stock, we can arrange shipment within 15 days. Please note that our production lead time depends on the specific project and the number of projects.
Q5:What about after-sales service and product quality?
A:The warranty is 12 months. After warranty, professional after-sales service team will provide perfect technical support. Help customers to solve the problems encountered in the process of use, professional and timely handling problems and complaints. Each instrument must be inspected and tested for 100% quality at the time of shipment and delivery. Product use training, each of our products provide video training to show you how to install and operate. Engineers will go abroad for training and maintenance.
Q6:How about the packaging of the equipment?
A: Before the machine is put into the standard export wooden box, the bubble film is covered first, which not only has good shock absorption and impact resistance, but also has the advantages of non-toxic, odorless, moisture-proof corrosion and good transparency.
