Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Donggaun,china |
|---|---|---|---|
| Model Number: | GSA-564D | Max. Load Force: | 20KN |
| Host Power: | 1KW,AC220V±10%,50HZ | Power: | Electronic |
| Measuring Range: | 1-100%(60N-20000N) | Beam Displacement Speed: | 0.01~500mm/min |
| Highlight: | 20kn Yield Strength Testing Machine,CE Yield Strength Testing Machine,1KW Tensile Testing Machines |
||

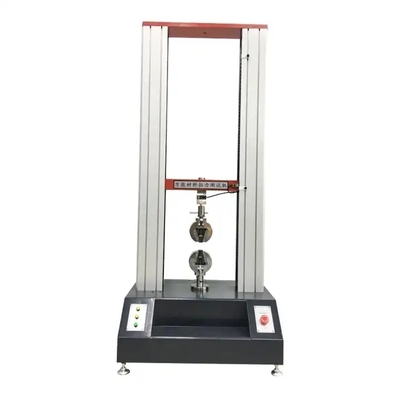

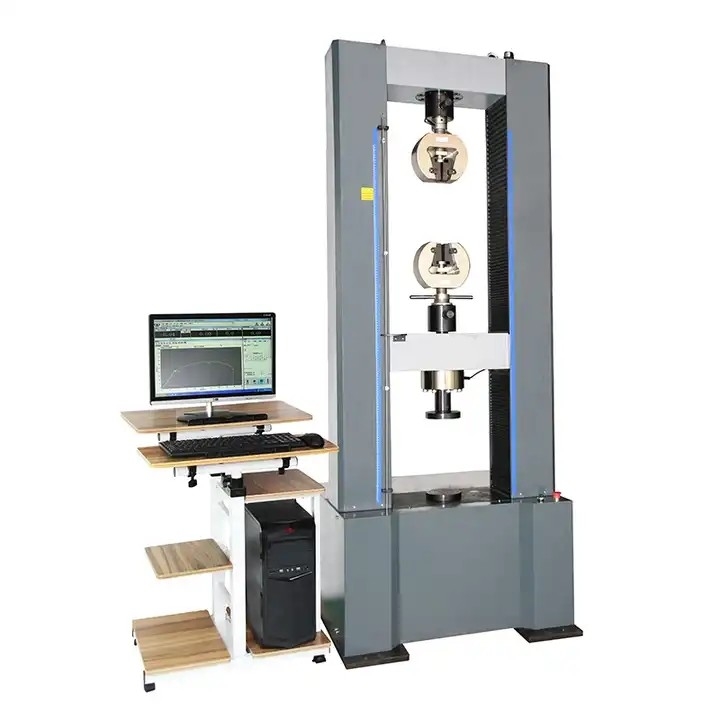

20kn Yield Strength Testing Machine For Rubber And Plastic Industry
product presentation:
1.Applications
A. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.

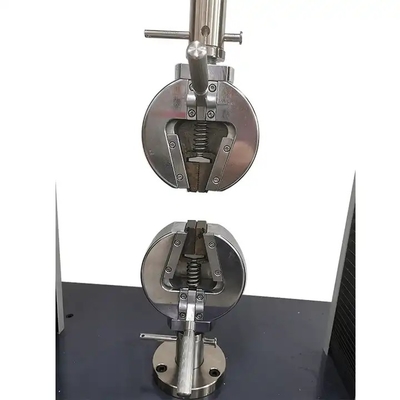

B. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
C. Deformation under defined load: Test deformation under defined load of tested sample
D. Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
2.Standard:
Including but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.
3.Technical characteristics:
3.1. Imported motor, low noise and precise control
3.2. Computer LCD display, Chinese menu, HP printer
3.3. During the test, the tensile time and the maximum test force are displayed in real time; and can be displayed.
3.4. In the 0-50N measurement range, the accuracy can reach 0.001N and the resolution is 0.001N. It is professional for the measurement of the corresponding parameters of waterproof materials.
3.5. High degree of automation, the instrument design uses advanced domestic and foreign devices, single chip microcomputer for information sensing, with automatic reset, data memory, overload protection
3.6. Get measurement results directly: After completing a set of tests, you can easily directly display the measurement results and print statistical reports, including averages, standard deviations and coefficients of variation
3.7. Optional with standard serial RS232 interface, which can provide data communication for the upper computer comprehensive report system
3.8. Multi-function, flexible configuration: the instrument is mainly used for measurement of metal and non-metal materials, changing the configuration of the instrument can be widely applicable to the measurement of other materials
| Model | GSA-564D | GSA-565D |
| Capacity(KN) | 1,2,5,10,20,50,100,200,500,1000,2000(KN) optional(or customize) | |
| Accuracy level | 0.5% | |
| Effective pull space | 1200mm(contain grips) | |
| Effective test width | 400mm | 320mm |
| Effective test force range | 0.02/100~100% | |
| Speed accuracy | Less than ±0.5% | |
| Displacement accuracy | Less than ±0.5% | |
| Deformation test accuracy | Less than ±0.5% | |
| Sensor | High Accuracy Sensor | |
| Test force resolution | 1/250,000 | 1/150,000 |
| Test Speed | 0.1~500mm/min | 50~500mm/min |
| Motor system | Panasonic servo motor + Panasonic sevor drive | AC motor + AC drive |
| Lifting control | Computer control or manual button control | |
| Optional parts | Lenovo computer | |
| Dimension | 80×50×150cm | |
| Operation method |
Computer Control |
|
FQA:
Q1: What's your guarantee?
A: The product warranty is 12 months, but lifetime service. Non-consumable parts will be provided free of charge in the event of performance
failure due to non-human damage within 12 months.
Q2: How to provide video?
A:Yes. If needed, our engineers will record a special video for you.
Q3:Is your company a trading company or a factory?
A: Yes, we are manufacturing plant and trade (integration). 10 years focused on the field of test instruments. 5 years of export experience, warmly
welcome to visit the factory.
Q4: After the order is placed, when will it be shipped?
A: Usually about 15-30 days. If we have stock, we can arrange shipment within 15 days. Please note that our production lead time depends on the
specific project and the number of projects.
Q5:What about after-sales service and product quality?
A:The warranty is 12 months. After warranty, professional after-sales service team will provide perfect technical support. Help customers to solve
the problems encountered in the process of use, professional and timely handling problems and complaints. Each instrument must be inspected
and tested for 100% quality at the time of shipment and delivery. Product use training, each of our products provide video training to show you
how to install and operate. Engineers will go abroad for training and maintenance.
Q6:How about the packaging of the equipment?
A: Before the machine is put into the standard export wooden box, the bubble film is covered first, which not only has good shock absorption and
impact resistance, but also has the advantages of non-toxic, odorless, moisture-proof corrosion and good transparency.
