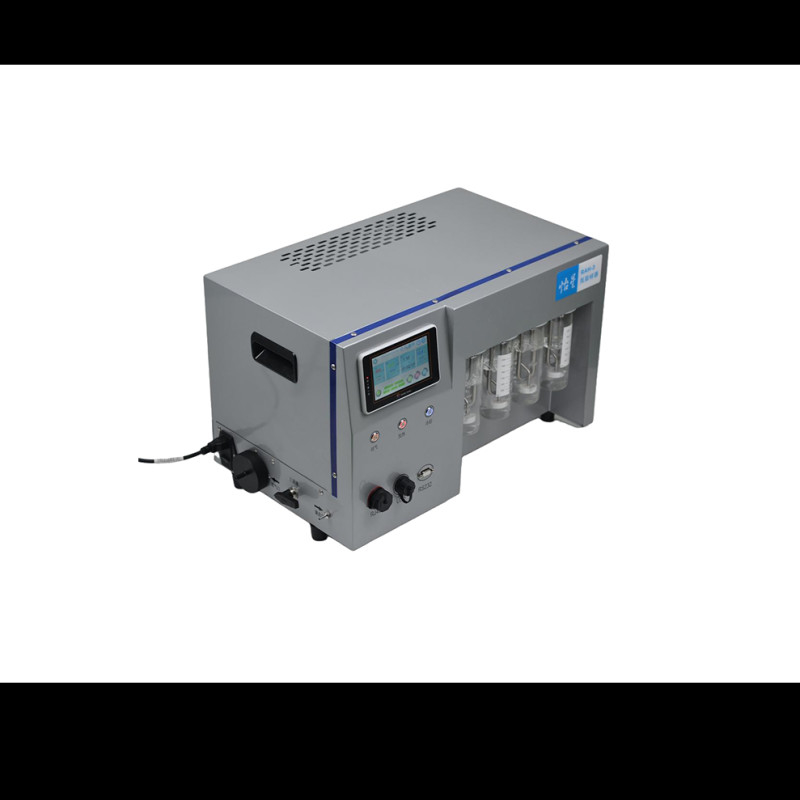

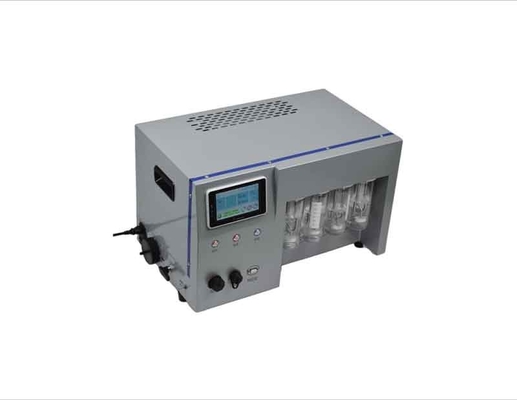

RAH-3 Tritium Sampler In The Air Tritium Sampling System 220VAC

RAH-3 Tritium Sampler In The Air Tritium Sampling System

RAH-3 tritium sampler in air. For sampling tritium in the air, suitable for sampling air in yan vents, exhaust ducts, indoor and outdoor environments, including nuclear power plants, nuclear research facilities, radioactive waste treatment plants and isotope laboratories

Product Features:

Large sampling flow rate, adjustable from 10-60L/h

The cooling temperature of the collected liquid is adjustable from 3 to 15 ℃

Catalytic oxidation furnace temperature adjustable from 200 to 500 ℃

Intelligent control display unit

Optimize pipeline design to prevent coolant backflow

Real time sound and light alarm for faults and abnormal states

Rich communication and switching output interfaces

Compact structure, lightweight

Easy to operate and maintain

technical parameter:

Power supply: 220VAC/50Hz, IEC interface

Catalyst type: Palladium on alumina

Power consumption: 450w (650W, equipped with cooling system)

Refrigeration method: semiconductor refrigeration

Control and display unit: 7-inch LCD, which can set and display the sampling flow, cooling temperature, heating furnace temperature, cumulative sampling volume and sampling time in real time

Operating temperature: 0~50 ℃

Storage temperature:-10~+70 ℃

Relative humidity: 95%, non-condensing

Alarm type: abnormal state sound and light alarm

Dimensions (W×H×D): 530×340×300mm

Communication interface: RS232/Ethernet

/O: 3-way switch output

Collection bottle: 250mL

Suction pump type: micro diaphragm pump

Leakage protection: sensitivity 30mA

Catalytic oxidation furnace: stainless steel cylindrical

Sampling flow: 10~60L/h, continuously adjustable

Air inlet: OD φ6mm

Catalytic oxidation furnace temperature: 200~500 ℃, can be set

Weight: 12kg (16kg, including cooling system)

Collecting liquid cooling temperature: 3~15 ℃, can be set

Capture efficiency:(HTO)>99%;(gaseous tritium)>96%
