Product Details:
|
| After-sales Service: | Technical Communication | Flow: | Contra-Flow |
|---|---|---|---|
| Temperture Range: | RT+10℃～500℃ | Movement Way: | Combined |
| Temperature Uniformity: | ±2℃ | Power: | Electronic |
| Band: | GSKA | Authentication Certificate: | CE |
| High Light: | Environment Test Equipment,Environment Chamber |
||

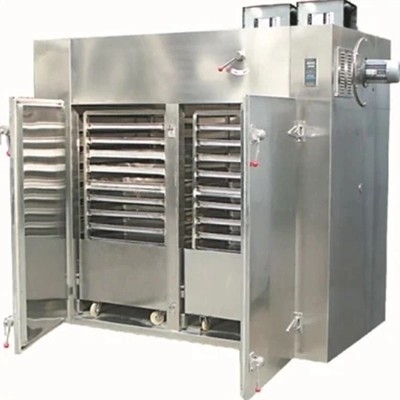

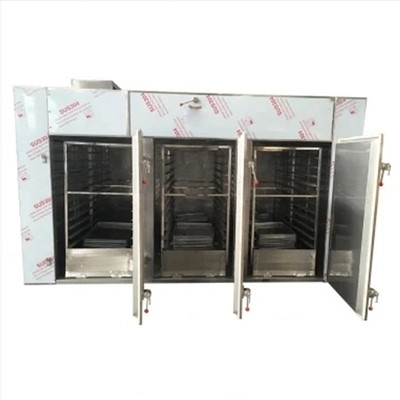

500L Industrial Electric Oven/Food Hot Air Circulation Tray Drying Oven
Hot air Drying machine Application:
Tray drying machinen/ Hot air circulating oven is also called tray dryer, it is for heating the pharmaceutical, chemical, food, agricultural products, aquatic products, light industry materials, curing, drying dehydration. Such as raw materials, medicine water, extracts, powders, granules, dehydrated vegetables.
Features:
1. This machine is kind of hot air circulation drying oven machine, it is widely used in food industry, pharmaceutical industry, chemical industry, and other industries.
2. This drying oven machine is applicable to dry and dewater the vegetables, fruits, Chinese medicinal herb, pigment, baking finish, and other materials.
3. This drying oven adopts axial flow fan, equipped with automatic constant temperature control system and computer control system for choice. The thermal efficiency of this drying oven can reach about 70%
customized:
| Chamber and Door | 1. The chamber is structured with stainless steel and welded to bracing pieces. 2. The inner Chamber size: 300 mm x 300 mm x 275 mm (12 x 12 x 12", 25 Liter) 3. A good vacuum sealing is achieved by the silicone gasket and the positive latch door. 4. The double layers observation window consists of 1/2" tempered glass and transparent polycarbonate shield. 5. Two stainless steel shelves are included to facilitate processing efficiency. |
| Vacuum Pump (optional) |
Ultimate Vacuum Level: 1000 millitorrs. |
| Working Voltage | AC 108 - 240 V 50/60 Hz |
| Input Power | 600W |
| Working Temperature | RT+10 ~ 200°C for the continuous use |
| Temperature Controller | 1. Single point temperature setting 2. Built-in over-temperature protection 3. PID precise temperature control 4. Temperature control accuracy: +/-0.1°C 5. Temperature uniformity: +/-5°C @ 100°C, 25" Hg at center 6"x 6" area only |
| Fittings | This oven comes with a KF-25 vacuum connector which allows you set up a quick connection to the vacuum pump. |
| Compliance | CE Certified |
| Warranty | Two years limited warranty with lifetime technical support |
| Attention | 1. It's normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality. 2. Please do not place the sample on the chamber bottom directly. |
Chamber materials:
1．Inner chamber materials: SUS stainless steel plate
2．External chamber materials: Special steel, galvanized anti-rust treatment, outside with Advanced wear-resistant resin paint coating.
3．Insulation material: aluminum silicate glass wool
4．The clapboard Material: Stainless Steel
5．Stainless steel electric heater Material: fin heat pipe type
6．Time control: 0 ~ 999H/M/S adjustable.
7．The rmometry body: T thermocouple
Our advantages:
1) Direct factory with 10+ years manufacturing experience in test equipment.
2) Products are in accordance with ASTM, IEC, ISO, JIS and other international standard.
3) Overseas technical and onsite installation support, have been 8 countries, such as America, Turkey, Australia etc.
4) Professional R&D staff with more than 5 years experience in this filed.
