Product Details:
|
| Gas Flow Control: | 0~100ml/min | Humidity Fluctuation: | ±3%R.H. |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Temperature Control Range: | 0℃~60℃ | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| High Light: | Environment Test Equipment,Environment Chamber |
||

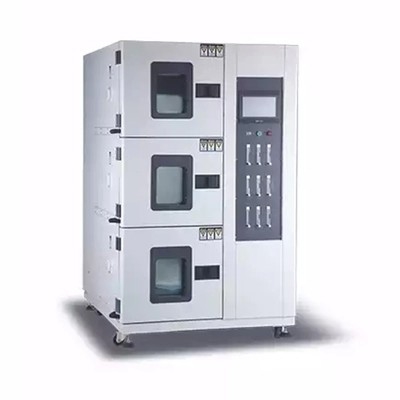

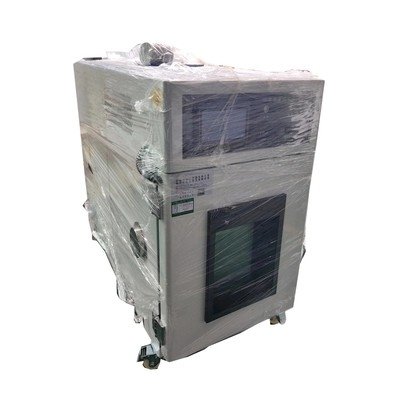

100L Humidity Temperature Control Machine Temperature And Humidity Test Chamber
Function:
Modified Atmosphere Refrigerator, with microelectronics technology, is for making preservation experiment on fruits, vegetables, flowers and plants in modified atmosphere conditions, and keeps them fresh by controlling concentration of O2, N2, CO2, and C2H4 and the temperature and humidity in the boxes. It is widely used in industries of microorganisms, environmental, food, research institute, and so on.
Working Principle:
This is so called Fast Shipping Thermal Shock Test Chamber, Thermal Chamber, Thermal Shock Chamber.
Sample is placed in the test chamber, more extreme temperature than test temperature can be set in high-temperature chamber and low-temperature chamber. When it comes to low temperature test, cold chamber door open, and low-temperature chamber working together with test chamber.
When converted into high-temperature test, cold chamber door closed, hot chamber door are opened, and test chamber working together with high-temperature chamber.
Conversion of mechanical action (transferring from high temperature to low temperature or low temperature to high temperature) can be completed in less than 1second, and the temperature can be quickly stabilized. During the whole test, test sample is no need to be moved, and without any human intervention.
Specification:
| Test range | O2: 0%~100%; CO2: 0%~5%;C2H4:0~100ppm (optional); the rest is N2 |
| Resolution ratio | O2: 0.01%; CO2: 0.01%; C2H4: 0.01ppm(optional) |
| Gas flow control | O2: 0~100ml/min, CO2: 0~100ml/min; N2: 0~100ml/min |
| Temperature control range | 0℃~60℃(3℃~50℃when humidifying) |
| Temperature deviation | ±1℃ |
| Temperature accuracy | ±0.1% |
| Humidity range | normal ~ 95%RH |
| Humidity deviation | ±5%RH |
| Humidification power | 15W |
| Sterilizer power | 200W |
| Lighting power | 100W |
| Capacity | Totally 300L |
| Material | color steel |
| Power | 2000w |
| Power supply | AC 220V, 50Hz |
| Environment temperature | 0~40℃ |
| Gas purity | ≥99.9% |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
- A variety of industrial and laboratory drying ovens;
- Muffle and chamber furnaces;
