Product Details:
|
| Temperature Range: | RT~110℃ | Viewing Window: | The Transparent Electro Thermal Hollow Toughened Glass |
|---|---|---|---|
| Cooling Rate: | 0.7c~1.0c/Min (Average) | Brand: | GSKA |
| Keyword: | Walk In Test Chamber | Heat Up Rate: | About 3℃~5℃/min； Can Be Custom |
| Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| High Light: | Environment Test Equipment,Environment Chamber |
||

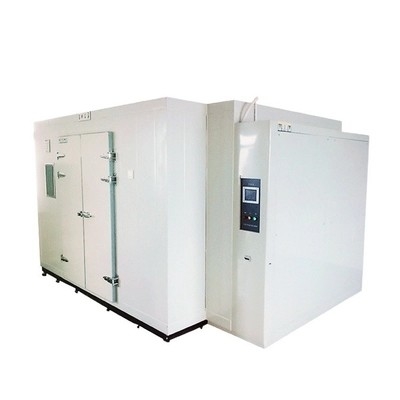

AC 380V 50HZ Climatic Walk In Test Chamber with LCD display screen
Characters:
1. Use special machine structure which can meet temperature and humidity well distribution.
2. Use environment-friendly refrigerant which meets international standard.
3. LCD display screen uses dialog box operating easy and user-friendly.
4. When fault occurs, display failure causes to help troubleshooting.
5. Have safety protection equipment and power failure memory.
6. Connect with computer, recorder(under user needs)
Features:
1. Realize temperature constant value control and program control;
2.The entire data recorder function (optional),which for record and retrospect,Protect/heater for short circuit protection, ensure the stability of air volume and heating during the operation.
3. With USB connector and WAN communication function,makes the communication equipment and software extensions to meet customers' needs.
4. Adopt international popular refrigeration control mode, can automatically adjust the compressor refrigeration power of 0% ~ 100%,
compared with the traditional thermal equilibrium temperature control mode and energy consumption reduced by 30%.
5. Refrigeration and electric control the key parts adopt international famous brand, make the whole of the equipment has improved the quality and guarantee.
6. Customize size/customize indicators/customize various optional features
| Humidity range | 20%-95% | |
| Stability | Temperature | ±0.5℃ |
| Humidity | ±2%RH | |
| Uniformity | Temperature | ±2℃ |
| Humidity | ±3%RH | |
| Deviation of temperature and humidity | ≤±2℃/±3%RH | |
| Heating time | Can be designed as client need | |
| Cooling time | Can be designed as client need | |
| Structure size | Can be designed as client need | |
| Structure materials | Combination of a walk-in library board disassembly,inner case:SUS 304 plate,outside case:color plate,insulation layer:PU foam,Base:GB angle iron+channel | |
| Refrigeration system | Closed or semi-close imported compressor,evaporator heat sink doubles as a dehumidifier | |
| Heating,humidification system | Heating:stainless steel fin tube heating the air heating mode,humidification,stainless steel sheath-type electric steam | |
| Safety devices | No fuse overload protection,the compressor overheating,over current,over-pressure,heating,humidifying dry,water tank alarm system | |
| Controller | Large LED display function,and strong expansion of the dedicated controller | |
| Standard accessories | Test hole(50mm) Indoor proof lamp | |
| Power | AC35w 380V/50HZ | |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
