Product Details:
|
| Material: | Stainless Steel Inlet Ball Valve | Exterior Chamber Material: | 15ml-db56Stainless Steel Plate + Powder Coated |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Product Name: | Concrete Carbonation | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Customized Support: | OEM |
| High Light: | Environment Test Equipment,Environment Chamber |
||

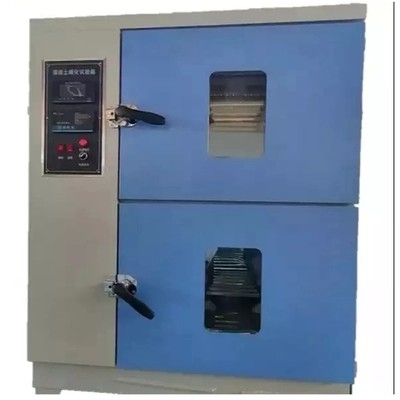

Laboratory Concrete Carbonation Chamber , Concrete Carbonation Climate Test Chamber
Product use:
Concrete carbonation test box is a special equipment for concrete carbonation test, this machine adopts imported carbon dioxide sensor, the sensor adopts infrared detection principle, combined with the domestic advanced digital instrument, has the characteristics of high precision and long life; Temperature and humidity sensor is composed of domestic advanced polar induction module plus multi-channel intelligent instrument.
Structure and principle:
1. The carbonization test box is a closed box, and the test piece is placed on the inner partition of the box, and then automatically controlled by microcomputer according to the set temperature, relative humidity and CO2 concentration, so as to ensure the constant temperature, humidity and CO2 concentration in the box. Carbonization test chamber is mainly composed of box, temperature, humidity, carbon dioxide concentration integrated control system.
2. The outer box plate of the box is made of cold-rolled steel plate, electrostatic powder spray plastic, the inner liner is made of high-quality stainless steel plate, and the insulation layer is made of polyurethane integral foam. The shelf is made of plastic frame. With good insulation, sealing. Corrosion resistance.
3, temperature and humidity control system: temperature sensor measured the temperature in the box is lower than the limit of the control value, the controller issued instructions, heating elements began to work (on the contrary, the temperature is higher than the limit of the control value, the controller issued instructions for compressor work), when the temperature in the box reaches the temperature control value, the heating element or compressor stops working, so as to achieve the purpose of constant temperature in the box.
4, humidity control system: use freeze-drying to dehumidification, when the temperature inside the box is higher than the upper limit of the control value, the humidity control instrument output signal instruction work, reach the upper limit of the control value of the internal error automatically stop working. When the humidity in the box is lower than the lower limit of the control value, the controller outputs the command and the humidifier starts spraying. The humidity will stop automatically when it reaches the control value of the lower limit of the period.
(Note: Please fill the humidifier with distilled water to ensure the working life of the humidifier.)
5, carbon dioxide control system: carbon dioxide concentration control sensor using imported original infrared carbon dioxide measurement and control module, measured gas concentration corresponding to the electrical signal, through the control instrument analysis and judgment. The output control signal feed circuit system actuator to control the opening or closing of the carbon dioxide gas supply system.

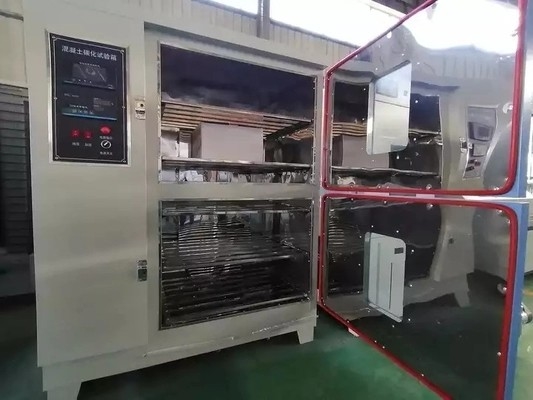

6. The door of the test chamber is provided with a transparent glass observation window. More convenient for users to observe the specimen changes. Test process to achieve automatic control, temperature, humidity, CO2 concentration in the box visual digital display.
| Specification | |||||||
| Model | GSKA-050 | GSKA-080 | GSKA-108 | GSKA-216 | GSKA-252 | ||
| Test Area Dim. W× H× D(mm) | 360× 350× 400 | 500× 400× 400 | 600× 400× 450 | 600× 600× 600 | 600× 700× 600 | ||
| External Dim. W× H× D(mm) | 1200× 1820× 1500 | 1430× 1950× 1600 | 1510× 1850× 1850 | 1510× 2050× 2000 | 1510× 2150× 2000 | ||
| High Temp. Range | +80º C---+200º C | ||||||
| Low Temp. Range | -10º C -- -40º C; -10º C ---60º C; -10--- -70º C | ||||||
| Test Temp. Range | +60º C-- +150º C; | ||||||
| -10º C--- -40º C; -10º C---55º C; -10º C--- -65º C | |||||||
| Ferformance | Temp. Constancy | ± 1º C | |||||
| Temp. Recover Time | 3 -- 5min | ||||||
| Heat-at Time | º C | 150 | 150 | 150 | 150 | 150 | |
| min | 30 | 40 | 40 | 40 | 40 | ||
| Pull-downTime | º C | -40 -50 -65 | -40 -50 -65 | -40 -50 -65 | -40 -50 -65 | -40 -50 -65 | |
| min | 60 70 80 | 60 70 80 | 80 90 100 | 90 100 110 | 100 110 120 | ||
| Material | Exterior | Stainless steel piate+Powder Coated | |||||
| Interior | SUS#304 stainless steel piate | ||||||
| Insulation | PU & Fiberglass wool | ||||||
| Systems | Cirulation | siroco fan | |||||
| Heating | Chrome steel strip wire heater | ||||||
| Cooling | Compressor+evaporator fins+air-cooling(or water-cooling)condenser | ||||||
| Controller | CLCD-9800 | ||||||
| Other Components | Control status indicator lights, experiment separation shelves(freely adjustable 2pcs) | ||||||
| Sevey Devices | Overheating prevention circuit-breaker, compressor overload protection, control system overload prevention, breakdown idicator lihgt, high-low compressure protection swith. | ||||||
| Power Source[K. W. ] | AC 3Ψ 380V 60/50Hz | ||||||
| Customization | Customization of inner chamber size, temperature range, etc. | ||||||
