Product Details:
|
| High-temperature: | +60 Degree To +150 Degree | Humidity Range: | 20%~98%R.H.(10%~98%R.H/ 5%~98%R.H) |
|---|---|---|---|
| Cooling Rate: | 0.7c~1.0c/Min (Average) | Brand: | GSKA |
| Keyword: | Thermal Cycle Test Chamber | Controller: | Programmable LCD Touch Screen Casters |
| Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| High Light: | Environment Test Equipment,Environment Chamber |
||

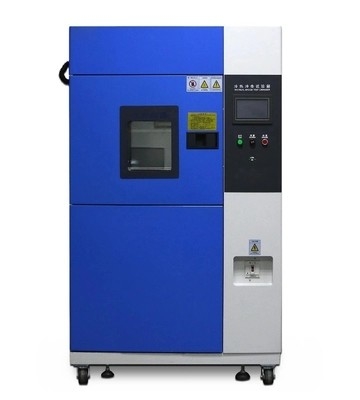

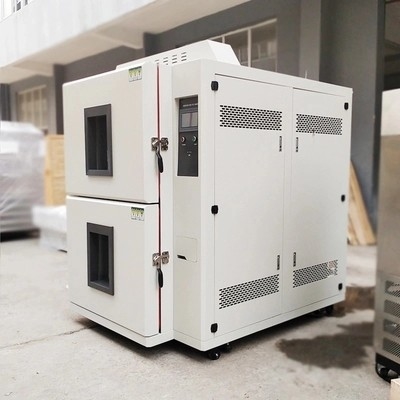

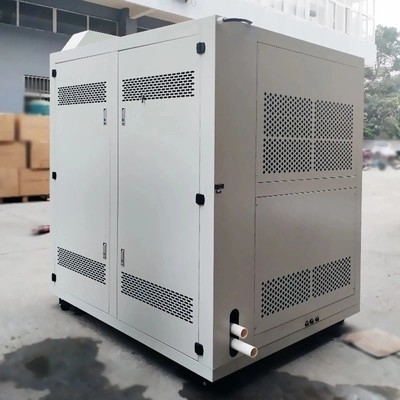

Programmable 408L Thermal Cycle Test Chamber Liquid Crystal Display
Box structure:
1. The test chamber is made of SUS304# stainless steel, and the thickness of the steel plate is 1.2mm;
2. The outdoor box is made of SUS304# stainless steel, and the thickness of the steel plate is 1.0mm;
3. The whole machine is divided into three parts: heat storage area, cold storage area and test area. The three parts are completely independent, and the temperature can be changed rapidly by switching the air door.
4. Insulation material: PU foam and aluminum silicate fiber cotton, thickness of 100mm;
5. Integrated control box, test box, heat storage box and cold storage box;
6. The test material rack is made of SUS304# stainless steel after punching and bending into a network structure;
7. The distance between the test materials can be adjusted;
Equipment summary:
Hot and cold impact testing machines used to test the change of material under extremely high temperature and extremely low temperature environment that continue alternation in the shortest time, Testing the chemical changes or physical damage of material caused by the thermal expansion and contraction. Testing box divided two parts, one is high-temperature region, another is low-temperature region, the testing sample placed on the moving basket, using unique heat storage and cool storage, the cylinder taking basket moves up and down in the hot and cold region to complete the hot and cold temperature impact testing; applied to test the material, including metal, plastic, rubber, electronics.... and other materials, it can be used as a basis for improvement of their products.
Technical Parameters:
| Temperature range | A.high-temperature : +60 degree to +150 degree |
| B.low-temperature : -10 degree to -40 degree | |
| Control temperature | ±2 degree |
| resolution | 0.01 degree |
| Heating time at high-temperature region | From RT to 150 about 35min (RT is from 5 degree to 30 degree). |
| Cooling time at low-temperature region | From RT to -40 degree about 50min (RT is from 5 degree to 30 degree) |
| Moving time and temperature recover time | A. testing bastet moving from high-temperature to low-temperature spend 10sec |
| B.after exchanging the temperature,the tempreature recovery time: 3min to 5min (Stabilization time ≥ 30min) | |
| Device noise | Below 75dB. |
| Weight | 10Kg |
| Testing region(hot and cold) | 50cm(W)*50cm(H)*50cm(D) |
| Outside size | 140cm(W)*180cm(H)*142cm(D) |
| Testing basket size | 30cm(W)*40cm(H)*30cm(D) |
| Inside material | SUS#304 Cold-Heat-resistant stainless steel |
| Outside material | SUS#304 Cold-Heat-resistant stainless steel |
| Insolution material | High-density glass wool and high strength PU foam insulation |
| Anti-sweat structure | insulation layer and door micro-thermal anti-sweat |
| Expansion | Heat reach 300 degree,cold reach -100 degree |
