Product Details:
|
| RefrigerationSystem: | R134A Refrigerant,Refrigerant CFC- Free | Exterior Chamber Material: | Stainless Steel Plate + Powder Coated |
|---|---|---|---|
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Humidity Control Range: | 40~95%Rh (Depends On Temperature, Beyond 10degree) | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Weight: | 400-500KG |
| High Light: | Environment Test Equipment,Environment Chamber |
||

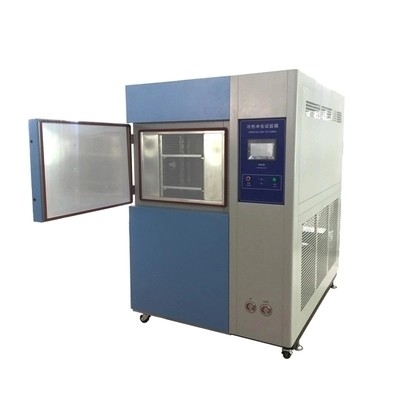

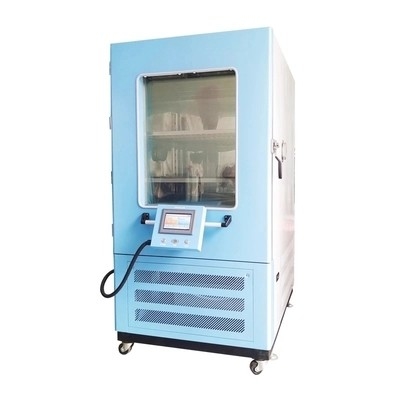

Programmable Temperature Humidity Climate Test Chamber Cold Balance Control
Brief Introduction:
Temperature humidity environmental test chamber simulats under the condition of product in humid climate environment combination (high and low temperature operation & storage, temperature cycle, high temperature and high humidity, low temperature and humidity and condensation test, etc.), check whether the adaptability and characteristics of the product itself.
Unique shape with high performance material, used to testing aerospace products, electronic instrumentation, materials, electrical and electronic products and various electronic components.
Temperature and humidity test chambers are available as standard products in a variety of sizes to suit your needs. Our environmental test chambers are often used for steady-state stability testing, basic temperature cycling and accelerated stress testing.
Features:
1, Touch screen controller is designed to save chamber programming and setup time with temperature limit and alarm to protect your product.
2, Safety relay connection is provided to protect your device under test by removing power to it when the chamber is not running.
3, Chamber exterior material is stainless steel with environmentally baking paint resists corrosion and provides impact resistance. Interior material is SUS304# stainless steel with excellent heat resistance and easy to clean.
4, RS-232 communications is for computer connection, programming can be set on computer by software, monitor testing process and automatically execute power on/off functions.
5, Fog-free viewing window and interior light makes viewing workspace freely and observe the test under best conditions.
6, Adjustable product shelf slides out for easier product access. Shelf design is non-tipping and supports large product loads.
7, Left side of chamber with diameter 50mm cable port for power-on test.
8, Optional electronic humidity sensor is used on all test chambers for accuracy and minimal maintenance.
Specifications:
| Control Mode | Cold Balanced Control System |
| Operating Temp. & Humid. Range | +5deg ~ +35deg; <85%R.H. |
| Temp. range | A=0deg, B=-20deg, C=-40deg, D=-70deg ~ +100deg(150deg) |
| Humid. range | 20% ~98%R.H. (Optional: 5%~98%R.H.) |
| Temp. & Humid. fluctuation | ±0.5deg; ±2.5%R.H. |
| Temp. & Humid. uniformity | ≤2.0deg; ≤3%R.H. |
| Temp. & Humid. Deviation | ≤1.0deg; ≤2%R.H. |
| Temp. Heating Time | 0deg ~ +100degwithin 30min; -20deg ~ +150degwithin 45min |
| Temp. Cooling Time | 20deg ~ -40degwithin 60min; 20deg ~ -70degwithin 85min |
| Power Supply | AC380V, 50/60HZ, Three-phase (Specified by User) |
| Exterior Material | stainless steel with baking paint |
| Interior material | SUS304# Stainless steel |
| Insulation material | Rigid Polyurethane foam |
| Refrigeration system | Mechanical cascade refrigeration system; Fin type radiator |
| Circulation system | Mechanical convection system |
| Humidification Water Supply |
Automatic water regulating, recoverable supply system, water shortage alarm system |
| Water quality | Distilled water only, 20L Water tank capacity |
| Controller | Touch Screen Controller |
| Safety devices | Overheat protector Switch, Compressor overload protector Switch water shortage protector Switch, Humidifier protector Switch Fault alarm system |
| Accessories | Viewing window, Chamber Illumination, Cable port ø50mm, Product shelf slides 2 pieces, universal casters Touch screen controller |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
