Product Details:
|
| Voltage: | Customized | Temperature Rise Speed: | 0.7°C~1.2°C/min |
|---|---|---|---|
| Specimen Is Put Aside Frame: | Dynamic Stretching | Controller Resolution: | ±0.3℃；±2.5%RH |
| The Sample Is Put Aside Frame Materials: | SUS304 | Color: | Customized |
| Condenser: | Water-cooled Condensing Agent | Customized Support: | OEM |
| High Light: | Environment Test Equipment,Environment Chamber |
||

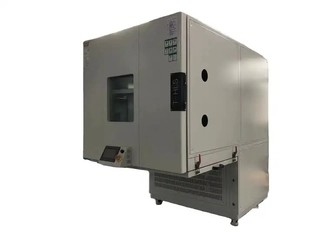

220V Temperature Vibration Climate Test Chamber Combination
Working Principle:
Harris vibration chambers offer rapid temperature change rates with combined temperature, humidity, and/or vibration environments. These chambers are designed for compatibility with electrodynamic or mechanical vibration systems. The Vibration Table ideal for vibration testing of small components or electronics and is designed for stand-alone testing or may be placed in an environmental chamber for combined temperature and vibration testing.
Application:
Can match appropriate vibration table. Meet all kinds of the corresponding temperature, humidity, vibration, three comprehensive test requirements. Widely used in aviation, aerospace, shipbuilding, electrical, electronics, communications and other fields
Features
Combined laboratory structure and refrigeration system as a whole, compact and beautiful, easy operation.
Refrigeration compressor, LCD touch screen and main parts are imported brand, equipped with RS232 communication interface.
Good mechanical transmission and match different types of vibration table.
Packaging:
Each set protected with resin fiber and PP film, then put into strong wooden case with operation mannual inside.
| Specifications | |||
| GSKA | |||
| 500 | 1000 | ||
| Working chamber volume ( L ) | 500 | 1000 | |
| Interior size ( W*H*D ) mm | 1000*1000*500 | 1000*1000*1000 | |
| Safety device | No fuse breaker, over pressure over heat and over current protection for compressor, | ||
| Over temp. protection, over load protection for blower, | |||
| Hydraulic and Water lack Protection dry heat protection | |||
| Power | AC 380V/50Hz ,3phase 5 wires+ Ground wire | ||
| Temp regulating mode | Balanced Temperature & Humidity Control System ( BTC ) | ||
| Ambient temp | +5 ºC~ +35 ºC | ||
| Performance | Temp range | -70 ºC~ +150 ºC | |
| Temp constancy | ≤0.5 ºC | ||
| Temp uniformity | ±2.0 ºC | ||
| Humidity constancy | ±2.5%RH | ||
| Humidity range | 2.0%RH ~ 98%RH | ||
| Humidity uniformity | If humidity≤75%RHJ, ±3.0%RH ; f humidity > 75%RHJ, ±5.0%RH | ||
| Cooling rate | ≤5 ºC /Min or ≤10 ºC /Min ( -55 ºC~ +80 ºC within humidity range ) | ||
| Material | Exterior material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel plate | |
| Interior material | Stainless steel plate(SUS 304) | ||
| Insulation material | Rigid polyurethane foam | ||
| Cooling system | compressor | Semi-Hermetic Compressor | |
| Cooling mode | Water cooled | ||
| Heater | Iron-chrome wire heater | ||
| Blower | Centrifugal Blower | ||
| Sight window | 470mm*350mm Glass incorporating heat generator | ||
| Temp sensor | Pt-100 | ||
| Controller | Touch screen controller | ||
| Shaking table | Custom made as required | ||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available |
|||
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
