Product Details:
|
| Warranty: | 1 Year | Model Number: | GSA-F27 |
|---|---|---|---|
| Packing: | Wooden Packing | Temp.Range: | -20C~150C |
| Weight: | 600kg | POEWR: | AC 380±10% 50Hz 3 Phase 4 Wires+Groud Wires |
| Power: | Electronic | Humidity Range: | 20~98%R.H |
| High Light: | Walk In Climate Chamber,Temperature Test Chamber |
||

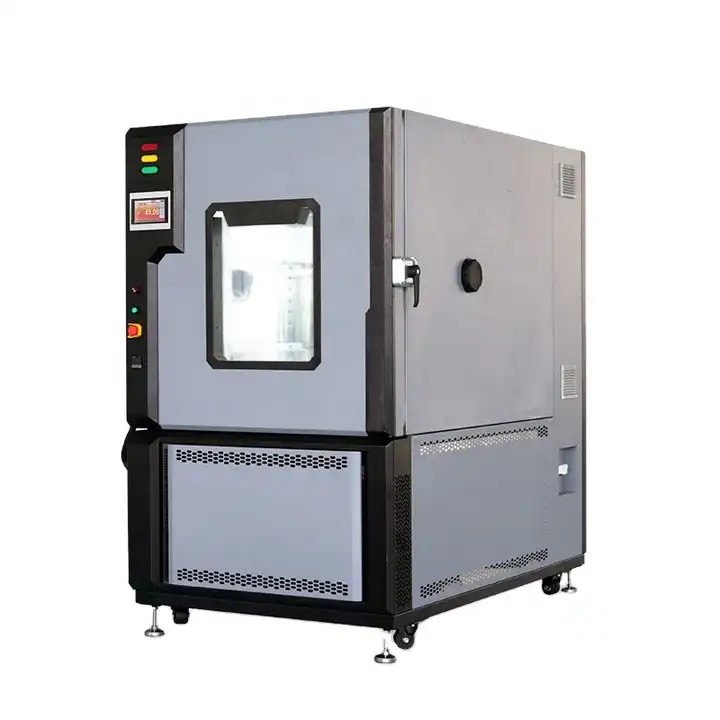

800L benchtop temperature test chamber, temperature -20C~150C can be adjusted at will
product presentation:
Bench temperature test chamber is a device used to simulate environmental effects under different temperature conditions. It is commonly used to test and evaluate the performance and reliability of electronic products, instruments, materials and components. The benchtop temperature test chamber can simulate the conditions of high and low temperature environment, humidity change and temperature cycle, so as to realize the test of the tolerance and performance of the tested articles under various environments. Usually, bench temperature test chamber can maintain a constant temperature within a certain temperature range, and can control the ambient humidity, at the same time can be temperature cycle test. Because of its portability and easy operation, bench temperature test chamber is widely used in production, scientific research and education fields.
| System | Cool Balanced & Humidity Control System | ||||||||||||||
| Temp.Range | -20ºC~150ºC | ||||||||||||||
| Humidity Range | 20~98%R.H | ||||||||||||||
| Temp.constancy | ±0.5ºC | ||||||||||||||
| Humidity constancy | ±2.5%R.H | ||||||||||||||
| Temp.uniformity | ±2.0ºC | ||||||||||||||
| Humidity uniformity | ±3.0%R.H | ||||||||||||||
| Heat up time | -20ºC~+100ºC Within 35 mins | ||||||||||||||
| Pull down time | +20ºC~-20ºC Within 45 mins | ||||||||||||||
| Interior Dimensions(mm) | W | 1000 | |||||||||||||
| H | 1000 | ||||||||||||||
| D | 1000 | ||||||||||||||
| Exterior Dimensions(mm) | W | 1200 | |||||||||||||
| H | 1950 | ||||||||||||||
| D | 1925 | ||||||||||||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||||||||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||||||||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||||||||||||
| Refrigeration system | Air Cooled( Water Cooled Type is option) | ||||||||||||||
| Hermetic compresssor, refrigeration system | Hermetic Compressor,Cascsde Refrigeration CFC free refrigerant | ||||||||||||||
| (HFC-507/HFC-23) | |||||||||||||||
| Controllor | LCD Toch panel,Chinese or English display selectabile | PID Parameter 9set | |||||||||||||
| Operation model /Program or fix point rinning | Accuracy /Temp.:0.1%of F.S±1 dight | ||||||||||||||
| Memory capacity ,120programs,1200steps,all repeat999cycles,part 99 cycless. | Input /Temp.:Pt-100/Humidity:Pt-100or1~5VDCV | ||||||||||||||
| Comm.Port RS-232C or RS-485 (Software is option) | |||||||||||||||
| Safety Devices | No fuse breaker,over pressure,over heat and over current protectors for compressor,over temp.protector,over load protectorof fan,dry heat pr techto | ||||||||||||||
| Standard Accessories | Sightwindow*1,cable port(portΦ50mm)*1,shelves*2,chamberlamp*1,power cable 2m | ||||||||||||||
| Weight(Kg) | 600 | ||||||||||||||
| Ambient Temp. | -5ºC~+35ºC | ||||||||||||||
| POEWR | AC 380±10% 50Hz 3 phase 4 wires+Groud Wires | ||||||||||||||
