Product Details:
|
| Video Outgoing-inspection: | Provided | Material: | Stainless Steel |
|---|---|---|---|
| Temperature Uniformity: | ±2℃ | Brand: | GSKA |
| Keyword: | Industrial Drying Oven | Temperature Resolution: | 0.1 |
| Temperture Range: | RT+10℃～500℃ | Power: | Electronic |
| High Light: | Environment Test Equipment,Environment Chamber |
||

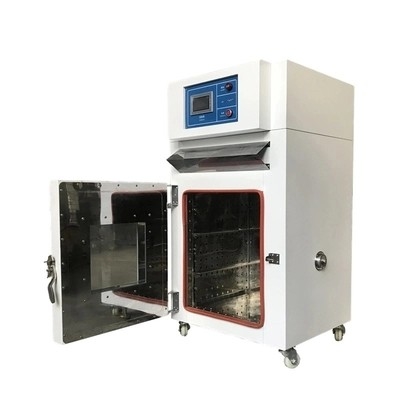

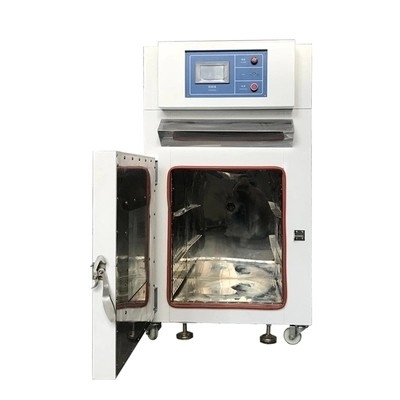

60Hz Multipurpose Industrial Drying Oven Antirust Stainless Steel
Features:
Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation
function, there are the adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating
source might be steam, hot water, electricity and far infrared. With a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.
Vacuum drying oven adopts flexible and adjustable shelves, and the height of layers can be adjusted. Strip shelf, easy to take and place products. Large glass observation window is used for easy observation. Silicone rubber is used for sealing, which is heat resistant and durable, and has high vacuum.
Can be customized:
| Chamber and Door | 1. The chamber is structured with stainless steel and welded to bracing pieces. 2. The inner Chamber size: 300 mm x 300 mm x 275 mm (12 x 12 x 12", 25 Liter) 3. A good vacuum sealing is achieved by the silicone gasket and the positive latch door. 4. The double layers observation window consists of 1/2" tempered glass and transparent polycarbonate shield. 5. Two stainless steel shelves are included to facilitate processing efficiency. |
| Vacuum Pump (optional) |
Ultimate Vacuum Level: 1000 millitorrs. |
| Working Voltage | AC 108 - 240 V 50/60 Hz |
| Input Power | 600W |
| Working Temperature | RT+10 ~ 200°C for the continuous use |
| Temperature Controller | 1. Single point temperature setting 2. Built-in over-temperature protection 3. PID precise temperature control 4. Temperature control accuracy: +/-0.1°C 5. Temperature uniformity: +/-5°C @ 100°C, 25" Hg at center 6"x 6" area only |
| Fittings | This oven comes with a KF-25 vacuum connector which allows you set up a quick connection to the vacuum pump. |
| Compliance | CE Certified |
| Warranty | Two years limited warranty with lifetime technical support |
| Attention | 1. It's normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality. 2. Please do not place the sample on the chamber bottom directly. |
Advantages:
1. Precision temperature controller provides accurate, stable conditions of constant temperature, in order to facilitate the test or dry conducted.
2. The liquid expansion over-temperature power protection devices, to ensure the safety of the test article.
3.With adjustable air intake and exhaust ports, according to the test conditions of different options ,Choose to resize or switch.
4. Timing device for LED Digital constant timing, providing complete use Conditional design.
5. Machine can be designed rely on customers requirements,such as the test cable hole,casters,controller’s position ect.
6. Machine continuous running time is above three month
7. Alarm device ,when over-temperature protection action and timing is complete ,that alarm will inform and automatic shut down.
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
