Product Details:
|
| Effective Measuring Range: | 1%~100%FS | Max. Stroke: | 1000mm (including Fixture) |
|---|---|---|---|
| Deformation Measurement Resolution: | 0.01mm. | Power: | Electronic |
| Capacity: | 5T (50KN) | Resolution: | 1/100,000 |
| Motor: | Panasonic Servo Motor | Sensor: | Celtron Load Cell |
| High Light: | Tensile Strength Testing Machine,Universal Testing Machine |
||

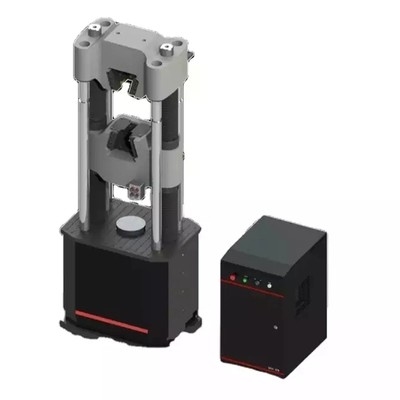

3000kn Hydraulic Universal Testing Machine For Tensile Compression Bending Test
Common test items:
Tensile stress, tensile strength, tensile strength, elongation at break, constant extension stress, constant stress elongation, constant stress force value, tearing strength, arbitrary point force value, arbitrary point elongation, extraction force, adhesive force and calculation value of peak value, pressure test, shear stripping force test, bending test, extraction force puncture force test.
Special test items:
1. The sex coefficient is defined as the elastic Young's modulus: the ratio of normal stress component to normal strain in the same phase. Is the coefficient of determination of material rigidity, the higher the value, the stronger the material.
2. Proportional limit: the load can maintain a proportional relationship with the elongation within a certain range, and the maximum stress is the specific limit.
3. Elastic limit: the maximum stress that the material can bear without permanent deformation.
4. Elastic deformation: After removing the load, the deformation of the material completely disappears.
5. Permanent deformation: After removing the load, the material is still residual deformation.
6. Yield point: when the material is stretched, the deformation increases and the stress remains unchanged. This point is the yield point. Yield points are divided into upper and lower yield points, which are generally taken as yield points. Yield: the load exceeding the scale limit is no longer proportional to the elongation, the load will drop suddenly, and then in a period of time, up and down, the elongation has a large change, this phenomenon is called yield.
7. Yield strength: when tensile, the load of permanent elongation reaching a specified value, divided by the original fault area of the parallel part, the quotient.
8 spring K value: with deformation in phase of the force component and deformation ratio.
Main Technical Parameter:
| Item | Description |
| Max. Force | 5T (50KN) |
| Load cell | Germany brand load cell for high accuracy |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Stoke | 1000mm including fixture |
| Load cell Resolution | 1/250,000 |
| Load Precision | within ±0.5% |
| Test speed | 0.1~300mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Software functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7.With many units of measurement, the metric system and british system can switch;
8.Have automatic calibration function;
9.Have user-defined test method function
10.Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
