Product Details:
|
| Dimension: | 650mm×580mm×1450mm | Weight: | 70 Kg |
|---|---|---|---|
| Power Supply: | AC220V±10%,50Hz | Control Method: | Computer Control |
| Accuracy Of Distortion: | ±0.5% | Test Speed Range: | 50-500mm/min |
| Load Range: | 0.4%～100%F·S | Structure: | Single Column Double Spaces |
| High Light: | Tensile Strength Testing Machine,Universal Testing Machine |
||

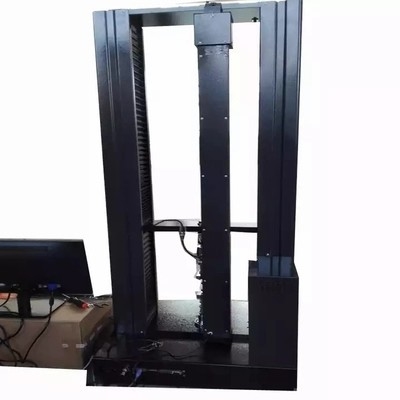

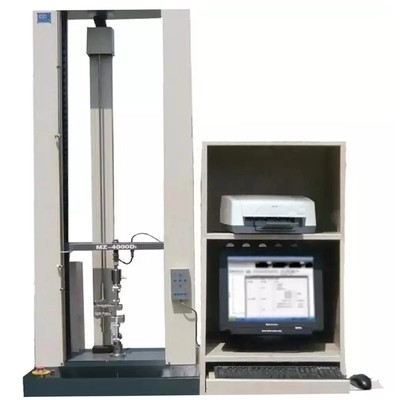

Microcomputer Controlled Double Column Universal Tensile Testing Machine OEM
Basic information:
Universal testing machine is also called universal material testing machine, or tension machine, double screw series, control, measurement, operation integration structure, integration of modern advanced technology, with high precision, wide speed range, compact structure, easy operation, stable performance and other advantages. The electronic universal testing machine meets the requirements of GB/T1040, 1041, 8804, 9341, 9647, ISO7500-1, GB16491, GB/T17200, ISO5893, ASTMD638, 695, 790 and plastic pipes and other standards. It is suitable for tensile, compression, bending and creep test of samples and products of plastics, waterproof materials, textiles, paper products, rubber and other materials, and equipped with a large pressure plate, it can directly carry out flat compression (compression recovery), ring stiffness (external load resistance), creep ratio, ring tensile strength and other tests.
Universal material testing machine is a combination of modern electronic technology and mechanical transmission technology products, is to give full play to the mechanical and electrical strengths and composed of large precision testing instruments, can be a variety of materials for tensile, compression, bending, peeling, shearing and other performance tests, and has a wide measuring range, high precision, fast response and other characteristics. Reliable work, high efficiency, the test data can be real-time display, record, print.
Features:
Using 32-bit high-precision AD converter (resolution of up to 1 / 10,000,000) and high-precision load cell to ensure that the instrument force data collection of the rapidity and accuracy;
Can be connected to computer software, with real-time display compression curve function and data analysis function;
The use of imported electrical components, high-speed data processing, the entire English menu, before the test can be pre-input sample parameters and test parameters, after the end of the test automatically calculate and output the maximum force, elongation, maximum tensile strength, Can save multiple sets of test data and results.
Stepless speed regulation (5-500mm / min arbitrary setting) screen real-time display test force, peak, test speed, running status and so on.
Using a single space test structure, the sensor is bi-directional pull-pressure force sensing, tensile or compression tests are completed below, pre-selected test methods;
With peak hold, sample break down, return to the original test and other functions, with upper and lower mechanical limit, electrical overload and other protection features.
Technical Parameters :
| Model | GSKA-600 |
| Support Customized | Yes |
| Max capacity | 5kg,10kg,25kg,50kg,100kg,250kg,500kg (It is optional.) can be setting |
| Induction method : | Precision load cell (sensor) |
| Max. Load Capacity : | 500kg |
| Force Resolution/Accuracy: | ± 0.5% |
| Accuracy class : | 0.5 |
| Resolution: | 1/1,000,000 |
| Test width: | 400mm(Standard specifications special specifications can be customized) |
| Test stroke : | Max.700 mm( included the fixture) |
| Stroke Resolution: | 0.01mm |
| Speed range: | 0.001-20inches/min |
| Reference Machine Dimension: | 580*580*1250mm (W*D*H) Support Customized |
| Power : | 1 phase 220V 50/60Hz |
| Packing | Standard Export plywood case |
| Force system | servo drives + Servo motor + precision ball screw drive |
| Control system | Mechanical transmission + TM2101 + Pulse Command and Control System control |
| Measurement and Control System | TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher |
Obtain data |
The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing |
| Displacement Control: | Displacement encoder count with four frequency technology So that the displacement of four times the resolution can up to 0.0005mm |
| Safety devices: | 1. overload, emergency stop device
2. the upper and lower travel limit devices
3. the test is completed automatic shutdown device
|
|
|
ASTM D903, ASTM E8 CNS11888, JIS K6854, PSTC7 ASTM D903,GB/T16491CNS-11888,JIS K6854, PSTC-7 ,ASTM E4,ASTM D828,ASTM D882,ASTM,D1938,ASTM D 412 ,ISO 8339ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 , ISO 527 ,ISO 178 and other standards. |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
