Product Details:
|
| Displacement Measurement Accuracy: | Displacement Measurement Accuracy: 0.2mm | Resolution: | 1/100,000 |
|---|---|---|---|
| Sensor: | Load Cell | Max. Stroke: | 650mm (include The Fixture) |
| Deformation Measurement Resolution: | 0.01mm. | Test Speed: | 20-300mm/min (adjusted By The Knob ) |
| Brand Name: | GSKA | Certification: | CE SGS ROHS UL CE |
| High Light: | Tensile Strength Testing Machine,Universal Testing Machine |
||

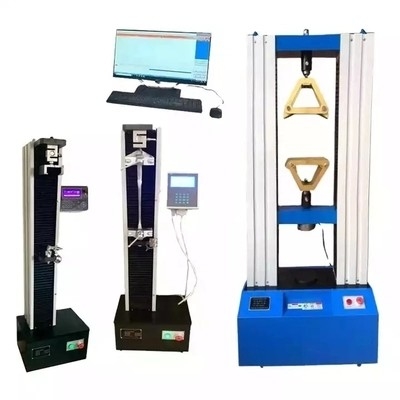

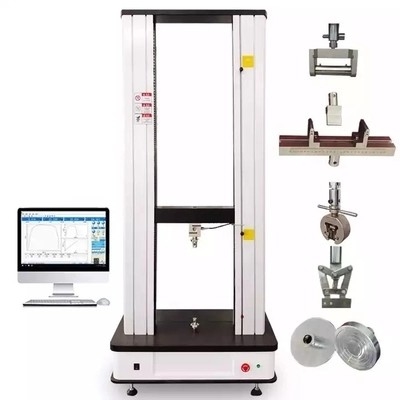

Electronic Universal Tensile Machine , Lab Universal Material Testing Machine
Step 1 Install:
The testing machine installed in a clean dry and uniform temperature house should also take into account the possibility of a long beam bending test on the machine and the possibility of using a mirror extension meter, so the tester should be set aside enough spare area around the tester.
The main body of the testing machine and dynamometer installation does not need a special foundation, only according to the foundation diagram for the general foundation and set aside the anchor screw holes can be poured.
Find the main level of the testing machine, can be placed on the cylinder on the outer circle according to the two positions of the horizontal and horizontal direction to find a good level, with the accuracy of 0.10/1000 mm level to find ±1 grid, not usually under the base pad iron to adjust.
There are two holes in the top of the dynamometer for wire threading when remounting.
The level of the dynamic meter is very important. When looking for water, the left side of the pendulum rod is aligned with the engraved line of the standard line plate, so that it does not move, and then the bending ruler is placed on the surface of the upper part of the pendulum rod with a level of 0.1/1000 mm on the bending ruler to find ±2 grids. When wrong, add iron under the base, and must be pendulum thallium and not hanging pendulum thallium pointer must not move to positive zero.
Open the iron door above the back of the ometer to check whether the line of the small wire hammer is wound in the groove of the pointer coaxial pinion, the length of the tying rope should be appropriate, not too long or too short, its limit is the longest can not touch the pull out remember the diaphragm, the shortest is the pinion rotation one week time hammer will not touch the pinion.
Application Industry:
1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
7. Others...
Main Technical Parameter:
| Item | Description |
| Max. Force | 2000 kg (20KN) |
| Load cell | Germany brand load cell for high accuracy |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Stoke | 1200mm including fixture |
| Load cell Resolution | 1/250,000 |
| Load Precision | ≤0.5% |
| Test speed | 0.1~500mm/min (adjustable by PC) |
| Test width | ≤400mm |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
