Product Details:
|
| Viewing Window: | The Transparent Electro Thermal Hollow Toughened Glass | Heat Up Rate: | About 3℃~5℃/min； Can Be Custom |
|---|---|---|---|
| Chamber MaterialsChamber Materials: | SUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| Keyword: | Walk In Test Chamber | Cooling Rate: | 0.7c~1.0c/Min (Average) |
| Brand: | Walk In Test Chamber | Authentication Certificate: | CE ISO |
| High Light: | Environment Test Equipment,Environment Chamber |
||

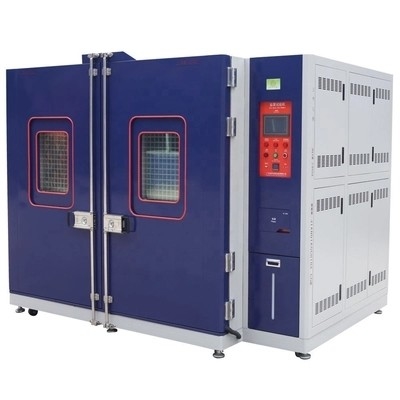

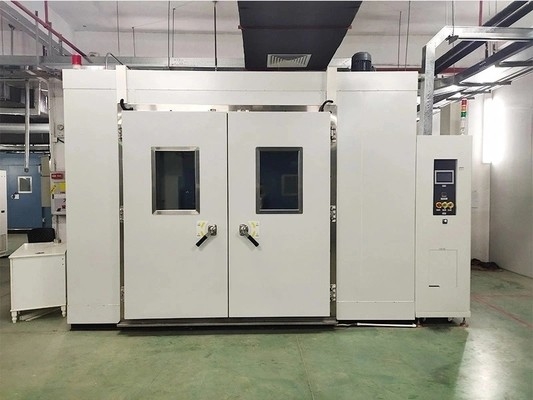

0.7c-1.0c/Min Walk In Environmental Chamber Humidity AC 3 Phase
Walk-in laboratory performance and characteristics:
1, with a very wide temperature and humidity control range, can meet the needs of users. The unique balanced temperature and humidity control method can obtain a safe and accurate temperature and humidity environment. With stable and balanced heating and humidification performance, high precision, high stability of temperature and humidity control.
2, equipped with high precision intelligent temperature regulator, temperature and humidity by LED digital display mode. Temperature and humidity recorder is optional.
3, automatic selection of refrigeration circuit, automatic control device with the temperature of the set value of automatic selection of refrigeration circuit performance, to achieve high temperature state directly start the refrigerator, direct cooling.
4. The inner door is equipped with a large observation window, which can facilitate the observation of the test state of the sample.
5, equipped with advanced safety, protection device - leakage circuit breaker, overtemperature protector, lack of phase protector, water protector.
High and low temperature test chamber, constant temperature and humidity laboratory, high and low temperature humidity and heat laboratory, high and low temperature alternating humidity and heat laboratory, salt spray corrosion laboratory, the above laboratory can be customized according to customer requirements.
Main feature of the Walk-in environmental temperature humidity stability chamber:
1. Programmable Controller with RS232C, 7″ LCD touch panel control
2. Stainess steel Interior, galvanized steel sheet exterior
3. 2pcs stainless steel loading shelves free
4. Multipane viewing window with heater
5. 60mm diameter feed-through port
6. Floor stand with castors
| Inner chamber size w×h×d(cm) | Non-standard,depends on customers` specific requirements for customization | |||||
| Exterior chamber size w×h×d(cm) | ||||||
| Testing temperature range | 0℃,-20℃,-40℃,-60℃,+70℃,+80℃ | |||||
| Performance | Temp.fluctuation | ±0.3℃ | ||||
| humidity range | 30~90%RH | |||||
| Humidity uniformity | ±5℃%RH | |||||
| Temp.uniformity | ±3℃ | |||||
| Heat up time | 20℃~80℃≤50min | |||||
| Material | Exterior chamber material | Cold-rolled steel+Powder coating | ||||
| Interior chamber material | SUS#304 Stainless steel plate | |||||
| Insulation material | PU fiberglass wool | |||||
| System | Air circulation system | Cooling fan | ||||
| Heating system | SUS#Stainless steel high-speed heater | |||||
| Humidification system | Surface evaporation system | |||||
| Controlling system | Digital electronic indicator+SSR+PID | |||||
| Refrigeration system |
Imported tecumseh compressor+ fin type evaporator+air(water)condenser |
|||||
| Dehumidifying system | ADP dew point dehumidification method | |||||
| Other components | Multi-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable) | |||||
| Safety protection device | Over-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lamp | |||||
| Power supply | AC 3phase 380V 60/50Hz | |||||
| Customization service | Non-standard or special requirements are all welcome | |||||
Our advantages:
1) Direct factory with 10+ years manufacturing experience in test equipment.
2) Products are in accordance with ASTM, IEC, ISO, JIS and other international standard.
3) Overseas technical and onsite installation support, have been 8 countries, such as America, Turkey, Australia etc.
4) Professional R&D staff with more than 5 years experience in this filed.
