Product Details:
|
Warranty: | 1 Year | Place Of Origin: | Guangdong,China |
---|---|---|---|
Model Number: | GS-65N | Package: | Wooden Box |
Power: | Electronic | Application: | IPx1 IPX4 Waterproof Testing |
Power Supply: | 220V | Function: | Simulate Rain Testing |
High Light: | Temperature Test Chamber,Climate Test Chamber |

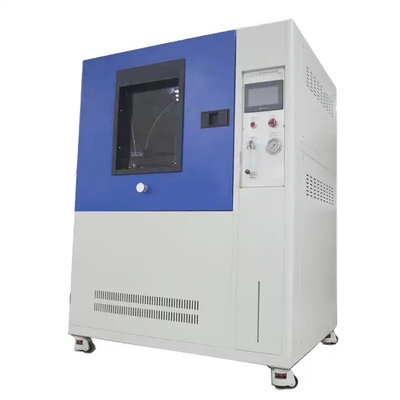

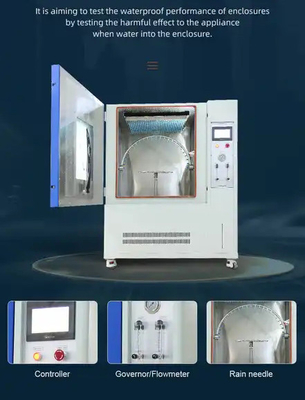

Rain Test Chamber For Simulating Rainfall Experiment In Meteorology Industry
product presentation:
A rain chamber is a device used to measure rainfall. It usually consists of a container with a marked scale and a funnel, with a certain capacity and weight. Rain test chambers are used to collect and measure rainwater for analysis and research in the fields of meteorology, hydrology and environmental science. When using the rain test chamber, it is necessary to place it on the open ground and let the rain fall into the test chamber naturally. The water level in the test chamber can then be read and rainfall calculated. In practical application, the rain test chamber is usually used in conjunction with other meteorological instruments, hydrological instruments and other equipment to achieve comprehensive meteorological and hydrological monitoring.
Model
|
GS-65N | GS-66N |
Inner dimension
|
500L*500D*650H mm
|
900L*900D*1050H mm
|
Outer dimension
|
1000*680D*1400H mm
|
1350L*1150D*1750H mm
|
Turntable diameter
|
¢200mm
|
¢400mm(R200mm is optional)
|
Turntable Max. load
|
50KG
|
50KG
|
Turntable lifting height
|
150-250 mm
|
450-750 mm
|
Turntable tiltable angle
|
0° or 15°(horizontal direction)
|
0° or 15°(horizontal direction)
|
Turntable speed
|
1 -5r/min(precise control )
|
1 -5r/min(precise control )
|
Turntable rotate
|
Foreward / Turn back and forth /
intermittent rotation |
Foreward / Turn back and forth /
intermittent rotation |
Testing time
|
0-999 min
|
0-999 min
|
Total weight
|
Appro. 230kg
|
Appro. 230kg
|
IPX12 technology parameter
|
||
Drip plate area
|
200*200mm
|
600*600mm
|
IPX12 Spray aperture
diameter (mm) |
¢0.4mm
|
¢0.4mm
|
Space of Dripping
aperture |
20*20 mm
|
20*20 mm
|
Rainfall precipitation
|
IPX1=1mm/min IPX2=3mm/min
|
IPX1=1mm/min IPX2=3mm/min
|
Flow adjust
|
Manual setting
|
Manual setting
|
Drip plate lifting
|
Fixed
|
Fixed
|
IPX34 technology parameter
|
||
Swing pipe radius
|
R200mm
|
R400mm(R200mm is optional
|
Swing pipe Flow
|
IPX3=0.56L/min;IPX4=0.84L/min
|
IPX3=1.1L/min;IPX4=1.8L/min
|
Spray aperture size(mm)
|
0.4mm
|
0.4mm
|
Space of Spray aperture
|
50mm
|
50mm
|
Swing pipe inner diameter(mm)
|
15mm
|
15mm
|
Swing pipe angle
|
120º(IPX3),350º(IPX4)(precise control or customize)
|
240°Turn back and forth 4S,720°Turn back and forth
12S(precise control or custom |
Swing pipe speed
|
240º(4s) 720º(12s), or customize
|
R400mm(R200mm is optional
|
Electric parameter
|
||
Power Supply
|
220V
|
|
Power Supply of samples
|
220V
|
|
Power
|
1.0KW
|
|
Protective device
|
Leakage, water shortage, short circuit
|
|
Standards
|
IEC60529:1989 +A1:1999 +A2:2013
|
