Product Details:
|
Warranty: | 1 Year | Air Filter: | HEPA Air Filter |
---|---|---|---|
Air Shower Time (s): | 0-99s Adjustable | Power: | 3000W |
Weight: | 500kg | Material: | Stainless Steel 304 |
Application: | Cleanroom Entrance | Certification: | CE SGS ROHS UL |
High Light: | Air Shower Tunnel,Air Shower System |
Efficient Cleaning Air Shower Cleaning System For Food Processing Industry
product presentation:

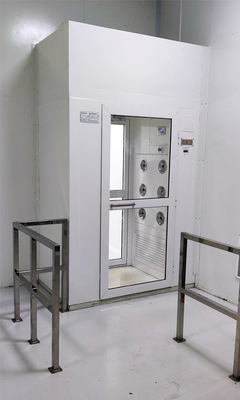

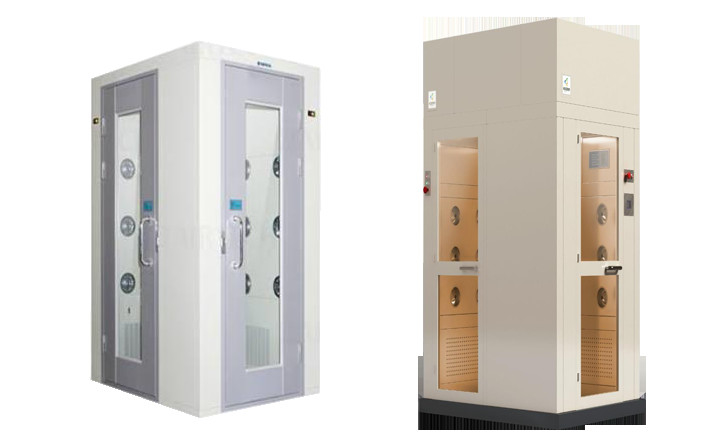

Air shower is a separate room installed at the entrance to clean rooms and other controlled environments. They minimize particulate matter entering or leaving clean Spaces. People and materials entering or leaving a controlled environment are "scrubbed" by high-speed HEPA-filtered air jets at speeds of 20-22 m/s (4,000 -- 4,300 ft/min). Contaminated air is then sucked through a base inside the unit, filtered and recirculated.
Clean room application
The largest source of particle pollution in clean rooms is the operator. An air shower is installed between the dressing area and the clean room. The shower enhances clean room procedures by alerting all operators that they are entering a controlled environment. Personnel therefore develop the habit of dressing neatly before entering the air shower.
• Pharmaceutical production
• Microelectronics manufacturing and production units
• semiconductor production line
• Basic and applied science research laboratories
Air shower efficiency test
• Use new clean room clothing that has not been laundered, which will retain particulate contaminants when manufactured in a non-clean room environment.
• The operator donned a robe (jumpsuit, boots, gloves, face mask and hood) and then entered a specially sealed enclosure (body box). The housing is equipped with vertical laminar flow.
• The operator performs a series of standardized physical movements to produce particles in the main box for a specified duration.
• The particle counter connected to the bottom of the main box measures the particle count level. This count is the baseline level.
• The operator puts on another garment from the same batch.
• The operator enters the air shower room (equipment under test) and performs a spray cycle.
• Operator exits air shower and enters body box. In the body box, the operator performs the same series of standardized physical motions to produce particles in the body box for a specific duration
• Measure particle count levels and compare them to baseline. Calculate the overall efficiency of the air shower and the shower cycle under test. The cleaning efficiency of spray with different particle sizes was also characterized.
• Repeat the test multiple times to collect sufficient data and eliminate any bias. Air shower exposure time (SEC) Air shower exposure time (SEC)
model
|
GSA658
|
GSA659
|
GSA660
|
GSA661
|
Specifications
|
1 person 1 blow type
|
1 person 2 blow type
|
1 person 3 blow type
|
2person 2 blow type
|
texture of material
|
Purified color steel plate
|
|||
External dimensions
|
800*1200
*2000mm
|
800*1500*2000mm
|
800*1500*2200mm
|
1200*1500*2000mm
|
Internal dimensions
|
700*800*
1900mm
|
700*800*1900mm
|
700*800*1900mm
|
1100*800*1900mm
|
Blower motor
|
1
|
2
|
2
|
2
|
Air outlet
|
6
|
12
|
16
|
18
|
Portal body
|
2
|
2
|
2
|
2
|
controller
|
Photoelectric induction, automatic shower
|
|||
Power Supply
|
220V
|
|||
power
|
350W
|
700W
|
700W
|
700W
|
FQA:
Q1 . Why choose us?
A1 . We are the leading laboratory products supplier , OEM ODM service are offered.
Q2 . How about the sample?
A2 . We could send you the samples but the freight is collect.
Q3 . How about the payment term?
A3 . T/T & L/C ( 50 % deposit , the balance before shipment ).
Q4 . How about the delivery time?
A4 . Within15-30 workdays after receiving deposit.
Q5 . How about the package?
A5 . Wooden crating or carton.
Q6 . How to inspect the goods?
A6 . Products will checked by our QC staff first , then our proejct manager . Client can come andcheck by themselves or by the third party.
