Product Details:
|
Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops |
---|---|---|---|
Place Of Origin: | Guangdong,China | Voltage: | 380v |
Dimension(L*W*H): | 1400*1000*2200mm | Material: | Stainless Steel 304 |
Air Shower Time: | 0~99s (adjustable) | HEPA Filter: | 99.999% Efficiency At 0.3 Um |
High Light: | Air Shower Room 380v,Stainless Steel 304 Air Shower Room,ROHS Air Shower |

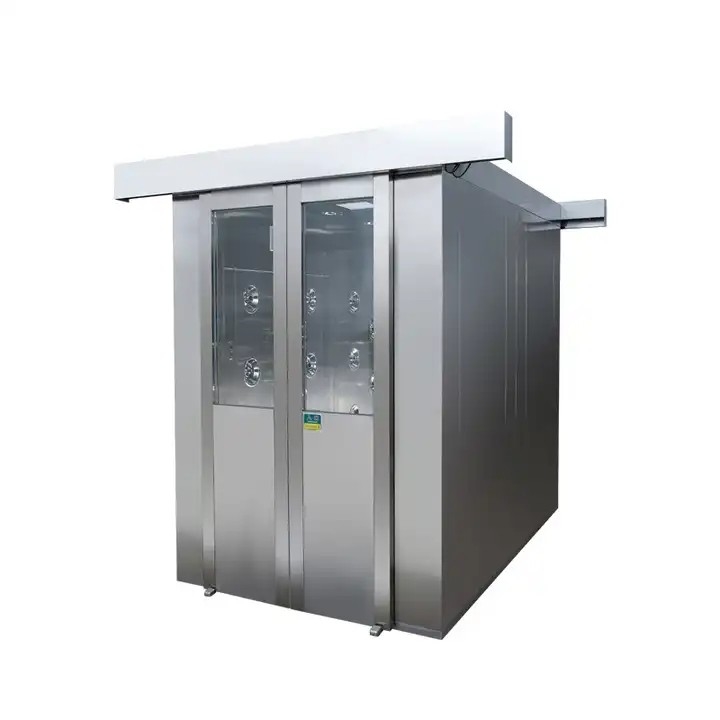

Factory Direct Electronic Chain Clean Air Shower Room for Food Industry
product presentation:
The air shower clean room is mainly used for aseptic operations on food production lines, which can effectively prevent microorganisms and other pollutants in the air from entering the production process, protect operators and products, and ensure product quality and safety.
Air shower clean rooms generally use high-efficiency filters and ultra clean technology, which can filter out pollutants such as bacteria, viruses, and particles in the air, thereby ensuring the cleanliness of the production process. At the same time, the air shower clean room can also increase the pressure of the plant air, making it difficult for the air to enter the clean room, thus ensuring the cleanliness and job security of the clean room.
On the production line of a food factory, using an air shower clean room can effectively control cross contamination during the production process, greatly reducing the risk of contamination during sterile operations, and ensuring the hygiene quality of food. At the same time, the air shower clean room can also improve production efficiency and speed, thereby increasing the economic benefits of the food factory.
Name
|
1500,single, double shower
|
1500 double air shower
|
1500,three-meter,double air shower
|
Model number
|
GSA-J365
|
GSA-J366
|
GSA-J367
|
Dimensions W*h*d(mm)
|
1500*1000*2150
|
1500*2000*2150
|
1500*3000*2150
|
Wind shower size w*h*d(mm)
|
900*900*2000
|
900*1900*2000
|
900*2900*2000
|
Nozzle velocity (m/s)
|
>20(m/s)
|
||
Number of nozzles
|
12
|
24
|
36
|
Shower time (s)
|
0~99s(mm)
|
||
Spray mode
|
The wind shower zone is left and right side shower
|
||
Main material of static pressure inner box
|
High Quality cold-rolled steel/stainless steel (optional)
|
||
Door material
|
Stainless steel deluxe single door/double door
|
||
Floor material
|
The indoor floor of air shower room is made of stainless steel plate
|
||
Interlock mode
|
Using full computer voice control, door magnetic and electric lock for electronic interlock device (open one door, the other door can not be opened)
|
||
Surface color
|
Surface electrostatic spray treatment Matte white/stainless steel sanding primary color
|
||
Filter size and quantity
|
610*610*69*2
|
610*610*69*4
|
610*610*69*6
|
Filtration efficiency
|
The efficiency of filter combination is greater than 99.99%@0.5um
|
||
Fan Power (W)
|
1100w
|
2200w
|
3300w
|
Power supply
|
AC,3N,380V±10%,50Hz±2Hz
|
||
Net weight (kg)
|
500
|
1000
|
1500
|
