Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Voltage: | 220V | Dimension(L*W*H): | 1100*1000*2080mm |
| Material: | SUS304/Powder Coated Steel Plate | Air Velocity: | 25m/s |
| Power: | 750W | Weight: | 200 KG |
| High Light: | 25m/s Clean Room Shower,SGS Clean Room Shower,304 Stainless Steel Air Shower |
||

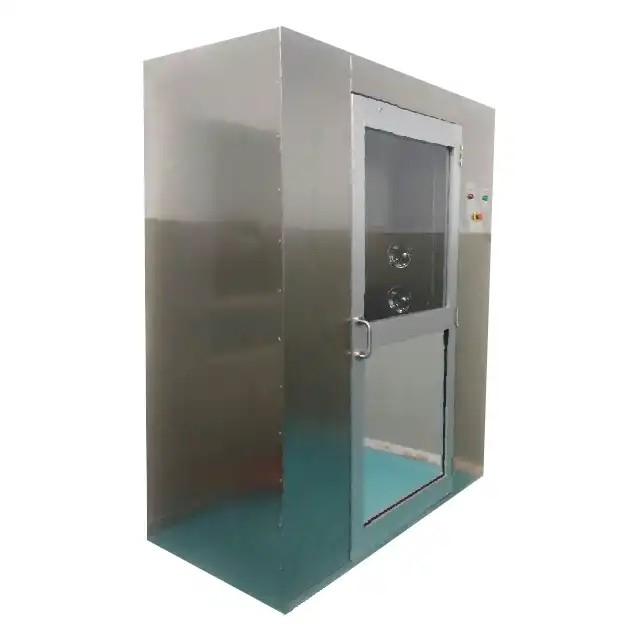

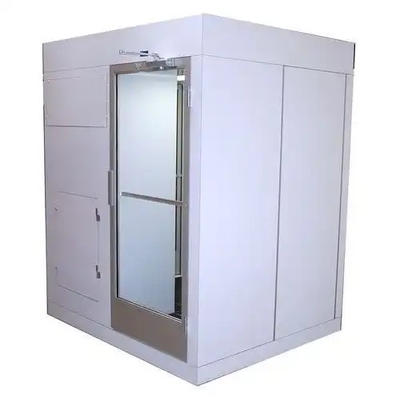

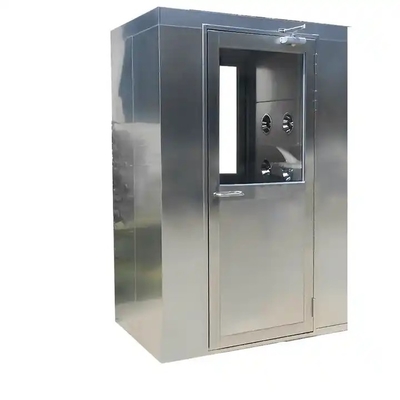

304 Stainless Steel Clean Air Shower Purification Equipment For Hospital
product presentation:
Air shower is a necessary channel for people to enter the clean room, it can reduce the pollution caused by people in and out of the clean room. Air shower/cargo shower series products are a kind of local products
The purification equipment has strong universality and is installed between clean room and non-clean room. When the personnel and goods enter the clean area, the air shower room is needed to blow. The clean air blown out can remove the dust carried by people and objects, and can effectively prevent or reduce the dust source from entering the clean area.
|
Model
|
GSA-J547
|
GSA-J548
|
GSA-J549
|
|
Type
|
One person
|
Two person
|
Three person
|
|
Outside body
|
1.2mm cold rolled steel plate (Electrostatic paint)
304/316# stainless steel (mirror/sanding) |
||
|
Inner body
|
304/316# stainless steel (mirror/sanding)
|
||
|
Door
|
5mm tempered glass window
|
||
|
Wind speed
|
23-25m/s
|
||
|
Air shower time
|
0~99 seconds (adjustable)
|
||
|
Nozzel number
|
12
|
24
|
36
|
|
Outside size
|
1100*1000*2080mm
|
1100*2000*2080mm
|
1240*3000*2180mm
|
|
Working size
|
730*900*1930mm
|
730*1900*1930mm
|
790*2900*1950mm
|
feature:
1. High velocity shower jets in excess of 25m/s ensure efficient to remove particulate matter.
2. Specific ultra-thin air shower chamber and blower, rotatable embed stainless steel nozzles highly increasing space utilization and air showering effectiveness.
3. With several sets of operational program and flexible to invoke.
4. Micro touch operation panel and intelligent human conversation interface can monitor the air shower running status in real time.
5. Standard module designing make it's easier to assemble and maintain at customer site.
6. Customized according to user's requirement and site condition.
Control Panel
With several sets of operational program and flexible to invoke. Operator can set air showering time by self.
Micro touch operation panel and intelligent human conversation interface can monitor the air shower running status in real time.
Nozzle
Rotatable embed stainless steel nozzles highly increasing space utilization and air showering effectiveness. The top nozzles make it efficient to remove the dust on operator's head and shoulder.
Fan
Adopting dedicated ultra-thin high velocity blower which developed by ATJ to ensure stable air velocity and low noise.
According to user's requirement, AS can be fitted with brushless DC motor, less power consumption and more efficient. 40% less energy than traditional AC motor air shower.
