Product Details:
|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Construction Works , Lab Furniture | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Weight: | 450 KG | Clean Room: | Class100-100000 Clean Room |
| Power Supply: | 220/380v 50-60hz | Voltage: | 380V |
| Usage: | Clean Air Room | Function: | Dust Removing |
| Highlight: | Air Shower Tunnel,Air Shower System |
||

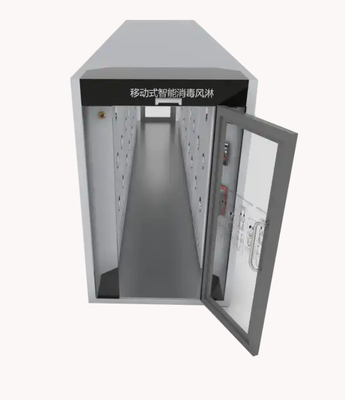

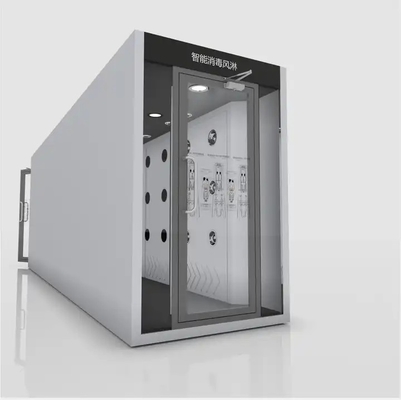

Air Shower Clean Tunnel At The Entrance Of Dust-Free Workshop For Factory
product presentation:
Air shower clean tunnel is an indispensable clean equipment in modern industrial clean workshop. It can remove the dust on the surface of people and objects, and play a role in buffering and isolating the clean and unclean areas on both sides of the air shower room. The equipment is widely used in food, medicine, biological engineering and precision electronics and other fields. The air shower room is divided into two categories: "ordinary mechanical interlock and electronic interlock". The mechanical interlock adopts the control mode of manually starting the shower, which makes the air cleanliness of the clean area difficult to ensure. It may even affect the quality of the product. Electronic interlock is also a kind of intelligence, it can automatically blow the function.
Air shower clean tunnel features
1. Air shower room is a necessary channel for people to enter the clean room, it can reduce the pollution problems brought by people in and out of the clean room.
2: Air shower room/cargo shower room series products are a kind of local purification equipment with strong universality, installed between clean room and non-clean room. When people and goods want to enter the clean area, they need to be blown by the air shower, the clean air blown out can remove the dust carried by people and goods, and can effectively block or reduce the dust source into the clean area. The front and rear doors of the air shower/cargo shower room are interlocked electronically, which can also act as an airlock to prevent unpurified air from entering the clean area.
LED display and set the blowing time, the range is adjustable from 10-99s, users can adjust the blowing time according to the difference of the environment outside the air shower;
3, high cleanliness, high wind speed: no diaphragm low resistance high efficiency filter, filtration efficiency is 99.99%, to ensure the purification level. Equipped with stainless steel multi-angle adjustable nozzle, double vortex shell outer rotor large air volume low noise fan, air nozzle outlet wind speed up to 30m/s,
|
Air Shower Spec Sheet
|
|||||
|
Exterior Size
|
1300x1000x2100
|
1300x1500x2100
|
1300x2000x2100
|
1300x3000x2100
|
1300x6000x2100
|
|
LxWxH (mm)
|
|||||
|
Interior Size
|
800x930x1960
|
800x1430x1960
|
800x1930x1960
|
800x2930x1960
|
800x6930x1960
|
|
LxWxH (mm)
|
|||||
|
Material
|
Available in 100% SUS304 Stainless Steel and/or High-Quality 1.2 mm Cold-Rolled Steel Plate
|
||||
|
Air Shower Time
|
0-99 seconds
|
||||
|
Jet Nozzles
|
12
|
18
|
24
|
36
|
72
|
|
Nozzle Diameter
|
30 mm
|
||||
|
Air Velocity
|
> 25 m/s
|
||||
|
Door Closer
|
Dorma (German) Door Closer
|
||||
|
Electronic Lock
|
LCJ Electronic Lock
|
||||
|
Filter Efficacy
|
≥99.995% of Particles ≥0.3μm
|
||||
|
Filter Size
|
595 ×595×80
|
595 ×595×80
|
595 ×595×80
|
595 ×595×80
|
595 ×595×80
|
|
LxWxH (mm)
|
|||||
|
No. of Filters
|
2
|
2
|
4
|
6
|
12
|
|
Power Source
|
380V/50Hz (Also Available in 220V and 110V)
|
||||
|
Lighting
|
1 Recessed LED
|
2 Recessed LED
|
2 Recessed LED
|
3 Recessed LED
|
4 Recessed LED
|
|
Fan Power
|
2 x 0.55
|
2 x 0.75
|
4 x 0.55
|
4x 0.75
|
8 x 0.75
|
|
(# x Kw)
|
|||||
|
Weight (kg)
|
350
|
450
|
600
|
900
|
1800
|
