Product Details:
|
| Usage: | Protective Clothing Solid Particles Protective Tes | Humidity Range: | 5%-98%RH |
|---|---|---|---|
| Control Accuracy Of Temperature: | ±0.5℃ | Power: | AC380V |
| Test Pressure Range: | 0-1000PA (± 1% Fs) | Spray Pressure: | 0 ~ 60kpa Adjustable |
| Control Accuracy Of Humidity: | ±3.5% R.H. | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| High Light: | Environment Test Equipment,Environment Chamber |
||

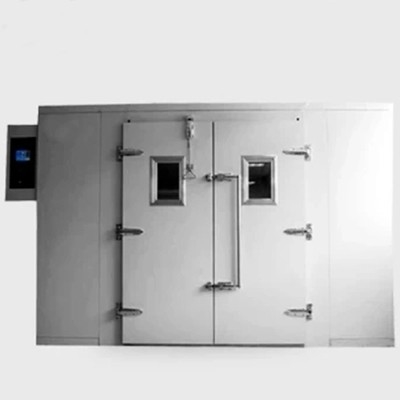

Solid Particulate Protection Test Box Protective Suit Solid Particulate Tester
Application:
It is used to test the inward leakage rate of particulate chemical pollution in the overall protective clothing in the workplace environment.
Standard:
GB / T 29511-2013, BS EN 1SO13982
Technical Parameters:
Test environment requirements:
1. Ambient temperature (20 ± 5) OC, relative humidity <60%
2. ≥400 × 500 × 300cm use space, with good drainage and ventilation
NaCl particle aerosol generator:
| Laskin nozzle Number | 2x6 = 12 (two atomizing barrel distribution) |
| Aerosol substance | NaCl |
| Aerosol particle size distribution | ≤1μm |
| Aerosol concentration | 0 ~ 1 * 1012P / L |
| Spray pressure | 0 ~ 60kpa adjustable |
| The occurrence amount | ≥110 L / min |
(2). Particle concentration detector 2 sets 4 channels
Dynamic range (0.001 ~ 200) mg / m3, accuracy ± 1%, response time ≤500 ms
(3). Horizontal foot drive test bench
Running speed (5 ± 0.5) km / h
(4). Air duct circulation and maintenance cleaning device
Control analysis system:
1. Centralized console, PC computer program control and promptly complete the entire test process
2. Automatically monitor the test data, automatically calculate the results of the experimental single internal leakage rate, total inward leakage rate, average total inward leakage rate and other experimental results, and output the experimental results in multiple ways.
Technical Parameters:
| Model | GSKA-10001 |
| Inner Dimensions(cm) | Customers designated space size and design |
| Temperature Range | RT+10℃~80℃(80℃ ~150℃ is optional) |
| Indication Resolution / Distribution Uniformity of Temperature | 0.1℃ /±2.5℃; |
| Control Accuracy of Temperature | ±0.5℃; |
| Temperature Rising Speed Rate | Temperature rising speed: approx. 0.1~3.0 (℃/min) |
| Cooling System | Refrigeration by compressor, according to customer’s requirements |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-temperature protection switch, fuses, fault warning system |
| Optional Accessories | Slope for cart , Recorder |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC 380 V,50/60HZ ,3∮ 5 Lines |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
