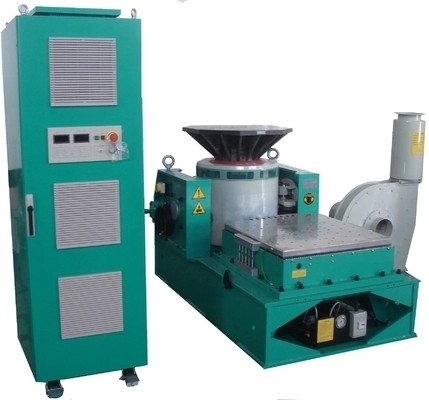

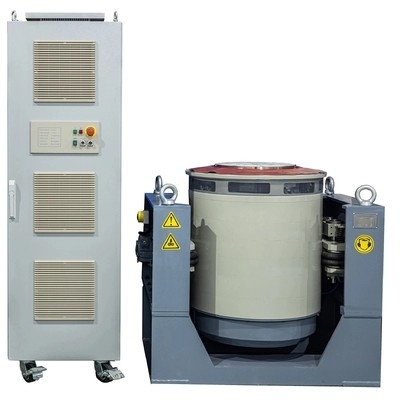

ODM Electrodynamic Vibration Testing Machine 200Hz Aluminium Material

ODM Electrodynamic Vibration Testing Machine 200Hz Aluminium Material

Shock Test Machine:

The impact test system is designed for electronic components, instrumentation and mechanical products to provide simulation of the impact of environmental testing equipment, is mainly used in electronic products, aerospace, marine, military, automotive components, transportation and other areas of the impact test . The product in the transport, use the process to withstand the extent of the impact of damage can be completed half sine wave (basic waveform), after the peak Sawtooth wave, trapezoidal wave; three kinds of pulse impact test in line with GB (GB), GJB (national military standard) and Mil (US military standard) on the impact of the relevant test requirements.

Application:

Features:

1. Set way: Chinese and English menu, computer operation, the use of specialized monitoring and control systems, the data of the whole process can be handing and output.

2. Display functions: dynamic display test curves, multi-Dan, on the number of data.

3. Curve recorder:real-time record of the test data, test data automatically, the test results can be stored, printed.

Specification:

Vibration Testing Machine
Sine thrust	600kgf
Random thrust	600kgf
Impact thrust	1200kgf
Frequency Range	5～2000Hz
Continued displacement	51mm
The impact of displacement	51mm
Maximum speed	2m/s
Maximum acceleration	981m/s2
Moving coil diameter	Φ150mm
Allow eccentric moment	＞190N.m
Load connection point	6 piont
Equivalent mass of moving parts	6kg
Countertops screw size (standard)	M8
Screw layout table (diameter, circumference)	8 on Φ100mm,8 on Φ,200mm.
Axial isolation frequency	＜3Hz
Maximum load	120Kg (customer request 45Kg)
Magnetic flux leakage	＜1mT
Dimensions (without packaging)(L×W×H)	1600mm×985mm×850mm
Vibration table Weight	1850kg
Amplifier output	8kVA
SNR	＞65dB
System Protection	The entire power amplifier has: Grid overvoltage, undervoltage power grid phase, logical failure, power module protection, power module temperature, output overcurrent, output overvoltage, power supply, displacement units, units body temperature, external linkage, etc. protection circuit, when any fault occurs, turn off the output, sound and light alarm. In addition to the above protection, it also has a protective function RMS values of tolerance protection, emergency stop devices, such as improving running.
Rated output voltage	120Vrms
Amplifier efficiency	＞95%
Fan
Power	0.75kW
Airflow	0.3m3/s
Duct diameter	120mm
Pressure	0.048kgf/cm2
Vertical extension table
Table size	600mm×600mm
Equivalent mass	23kg
Upper frequency	2000Hz
Countertop Materials	Aluminium
Horizontal slide
Table size	600mm×600mm
Thickness	30mm
Countertops weight	36kg
Frequency	2000Hz
Bearing number	1
Bearing weight	0.58kg
Connector Weight	1.4kg
Maximum Load	300kg
Countertop Materials	Aluminium

We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency

Customer Support Services:

Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair
