Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Max.load(kg): | 120KG | Continuous Displacement: | 25.4mm |
| Frequency Range: | 2~2500HZ | Power: | Electronic |
| Counter Weight: | 30kg | Random Thrust: | 300kgf Rms |
| High Light: | 300kgf Vibration Shaker Table,2500HZ Vibration Shaker Table,Electrodynamics Vibration Testing Machine |
||

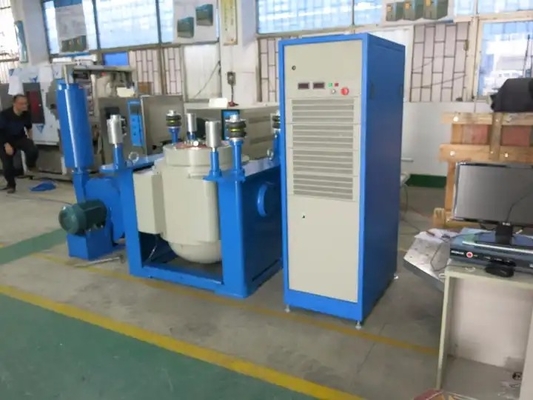

Electrodynamic Vibration Shaker Table Testing Machine For Laboratory
Vibration Testing Equipment Description & Application:
Vibration Machine, Electrodynamic Shaker,Vibration Shaker Table is used to educational, research, and laboratory environments. Adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.

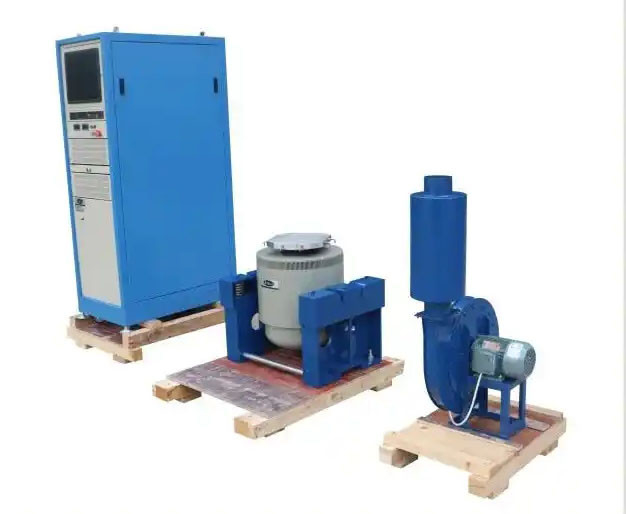

Test system composition
1. One-piece horizontal vibration generator
2. Vertical expansion table
3. Cooling fan with muffler
4. Digital switching power amplifier
5. Multi-function vibration control measuring instrument.
Electrodynamic Vibration Testing Machine Characteristics:
Ultra mute work; The machine base uses the high quality material, installs conveniently, the operation is smooth, does not need to install the The, the control circuit digitization control and the display frequency, the PID adjusts the function, causes the equipment work to be more stable, reliable, sweeps the frequency and the fixed frequency operation way, adapts to the different profession test request To solve the interference of the strong electromagnetic field to the control circuit, and to increase the working time set, so that the test product reaches the accurate test time.
| Maximum load | 120kg |
| Table weight | 1100kg |
| Mean time between failures | >3500 hours |
| Axial vibration isolation frequency | <3Hz |
| Magnetic leakage | ≤1mT |
| Impact displacement | 25mmP-P (maximum) |
| Maximum speed | 1.8m/s |
| Maximum acceleration | 981m/s2 (100g) (no load) |
| Sinusoidal thrust | 2940N (300kg.f) |
| Random thrust | 2940N (300kg.f) |
| Impact thrust | 5880N(600kg.f) |
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),we have our own factory.
Q:Do you accept customization service?
A:Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.
Q:What is your product warranty ?
A:1Year warranty, but lifetime for services.
Q How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc.
