Product Details:
|
| Place Of Origin: | Donggaun,china | Model Number: | GS-012R |
|---|---|---|---|
| Product Name: | Electromagnetic Vibration Test Table | Maximum Test Load: | 0-60 Kg |
| Amplitude: | 0-5mm(Random, Changing With Frequency) | Power: | Electronic |
| Power Supply Voltage (V): | 220V 50HZ | Precision: | Frequency Can Be Displayed To 0.01Hz, Precision 0.1Hz |
| Highlight: | Vibration Test Table,Vibration Shaker Table |
||

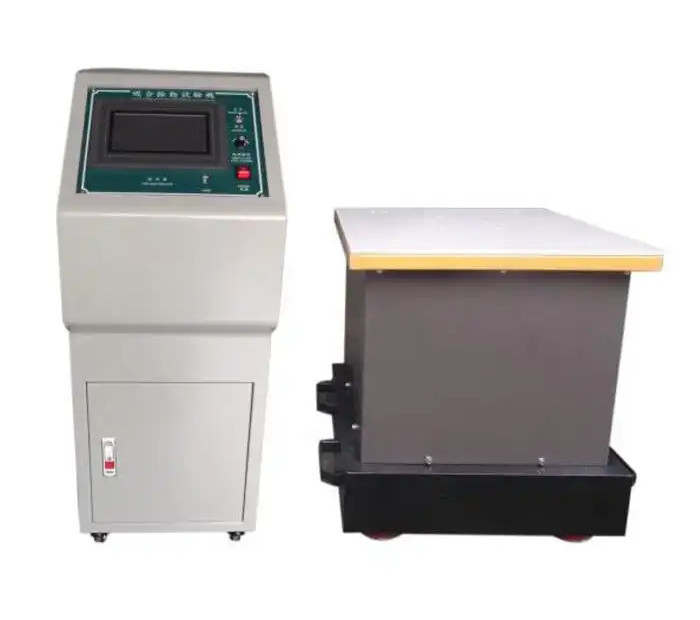

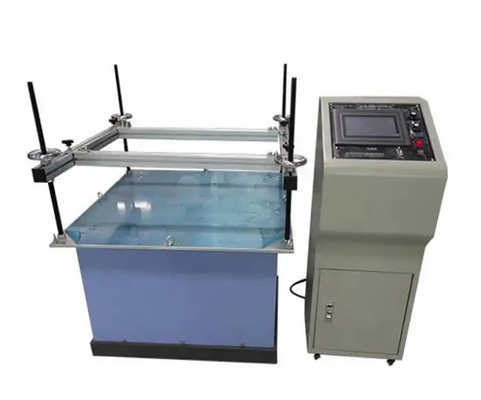

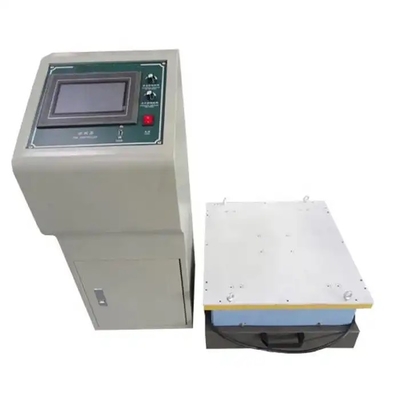

Programmable electromagnetic vibration test bench is a kind of test equipment used to test and evaluate the reliability and durability of electronic, mechanical, aerospace and other industries products under vibration environment. Different from traditional mechanical vibration test stands, it uses electromagnetic force to generate vibration signals, which has a higher frequency range and more precise control.
The programmable electromagnetic vibration test bench is mainly composed of shaking table, electromagnetic vibrator, programmable controller and data acquisition system. The electromagnetic vibrator is responsible for generating vibration signals, and the programmable controller is used to control the frequency, amplitude, phase and other parameters of vibration signals, and record the data in the process of vibration test. The data acquisition system is used to collect, process and analyze the data generated in the process of vibration test so as to evaluate the vibration performance of the product.
| Maximum test load: | 0—60 kg |
| Vibration direction: | Up and down + left and right / front and back (one machine) |
| Table size: |
Please select the appropriate counter according to the actual size of the test product. 500×500 mm 750×750 mm 1000×1000 mm 1500×1500 mm |
| Amplitude: | 0—5mm(Random, changing with frequency) |
| Sweep frequency: | 1—600Hz Can be set arbitrarily, the real standard back and forth frequency sweep (if you need 1 - 3000HZ can be customized) |
| Maximum acceleration: | 10G |
| Implementation function: | FM, programmable, time control |
| Precision: | Frequency can be displayed to 0.01Hz, precision 0.1Hz |
| Programmable function: | 1-600HZ, 1-8 segments can be arbitrarily set frequency and time, can be cycled |
| Multiplier function (0.01Hz): | 8 segments multiplied by 1 low to high frequency 2 high to low frequency 3 low to high then to low frequency / recyclable |
| Logarithmic function (0.01Hz): | 1.down to upper frequency 2.up to down frequency 3.down to up to down frequency -3 mode logarithm / recyclable |
| Vibration waveform: | Sine wave (half wave / full wave) |
| Time control: | Any time can be set (in seconds) |
| Power: | 0.75 Kw |
| Power supply voltage (V) | 220V 50HZ |
A:Factory + trade (integration),we have our own factory.
Q:Do you accept customization service?
A:Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.
Q:What is your product warranty ?
A:1Year warranty, but lifetime for services.
Q How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc.
