Product Details:
|
| Vibration Method: | Reciprocation Type | Speed: | 100-300RPM |
|---|---|---|---|
| Speed Display: | 0.1RPM | Vibration Amplitude: | 1 Inch(25.4mm) +15%, To Agree With ISTA/EN71 Transportation Standard |
| Speed Accuracy: | Not More Than ±3RPM | Age Group: | 110-240V/50-60Hz |
| Time Setting Range: | 0～99.99hour | Dimention: | 110×110×70cm |
| High Light: | Vibration Test Bench,Vibration Testing Machine |
||

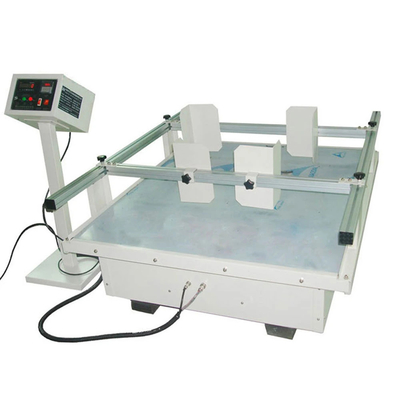

Transportation Simulation Vibration Testing Machine/Vibration Measuring Instrument
Application:
Simulation Transport Vibration Test Table is used to simulation test damage between transport for various package stuff,
PC panal, electrical products ect.
Vibration Tester Feature:
Numerical type speed monitor. The simple operation control; Adjustable time has to output function after the electric
appliances;Can the move type protect a column; The burly shape protect; The low noise operate.
Frame structure through spray a powder processing, go together with noodles and the aluminum metal alloy slippery
track combination of the stainless steel pedestal, beauty generous.
Have buffer start function, work medium noise very low.
Specifications:
| Model | GSKA-7030 |
| Design Standard | EN71 ANSI,UL,ASTM,ISTA |
| Speed | 100-300RPM |
| Speed display | 0.1RPM |
| Vibration method | reciprocation type |
| Vibration amplitude | 1 inch(25.4mm) +15%, to agree with ISTA/EN71 transportation standard |
| Max load | 100 KG |
| Effective test area | 100×90cm |
| Speed accuracy | not more than ±3RPM |
| Time setting range | 0～99.99hour |
| Motor power | 1HP |
| Max current | 5A |
| Power | 220V 50Hz single phase |
| Dimention |
110×110×70cm |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
