Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Max.load(kg): | 120KG | Continuous Displacement: | 25.4mm |
| Frequency Range: | 2~2500HZ | Power: | Electronic |
| Counter Weight: | 30kg | Random Thrust: | 300kgf Rms |
| Highlight: | Vibration Test Table,Vibration Shaker Table |
||

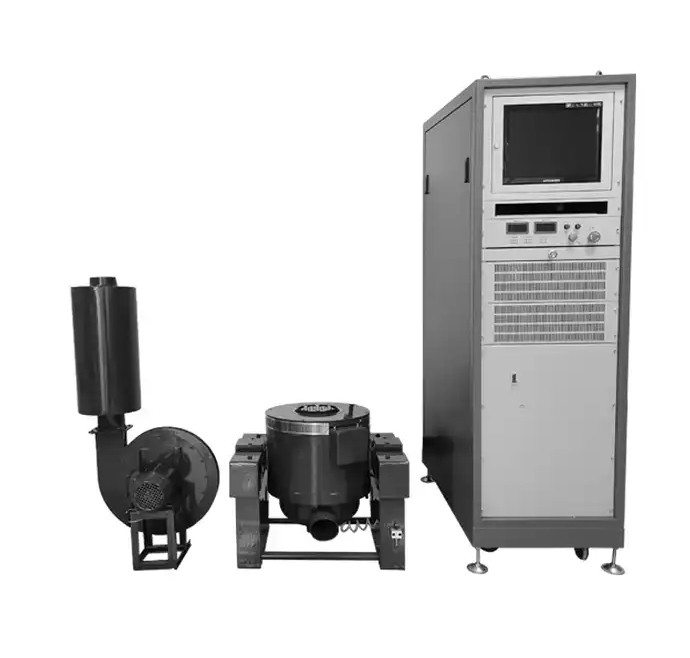

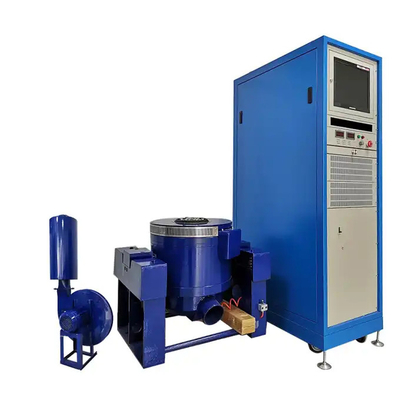

Vibration Machine, Electrodynamic Shaker,Vibration Shaker Table are used in educational, research, and laboratory environments. Advanced modern technologies and special technologies such as dual magnetic circuit structure, self generated skeleton action ring, airborne support and roller bearing, linear guidance, trunnion isolation, etc. can be used to complete the X, Y, Z three axis sine vibration test and broadband random vibration test, and the classical (half sine, trapezoid, sawtooth wave wave) pulse and shock response spectrum test can be completed. These products are widely used in fields such as national defense, weapons, aviation, aerospace, communication, electronics, electrical appliances, communication, home appliances, etc.
Electrodynamic Vibration Testing Machine Characteristics:
Ultra quiet operation; The base is made of high-quality materials, which is easy to install and operates smoothly without the need for installation. The digital control and display frequency of the control circuit, PID adjustment function, make the equipment work more stable and reliable. The frequency scanning and fixed frequency working methods are suitable for different industry testing requirements, and solve the interference of strong electromagnetic fields on the control circuit. And increase the setting of working hours to achieve accurate testing time for testing products.
| Maximum load | 120kg |
| Table weight | 1100kg |
| Mean time between failures | >3500 hours |
| Axial vibration isolation frequency | <3Hz |
| Magnetic leakage | ≤1mT |
| Impact displacement | 25mmP-P (maximum) |
| Maximum speed | 1.8m/s |
| Maximum acceleration | 981m/s2 (100g) (no load) |
| Sinusoidal thrust | 2940N (300kg.f) |
| Random thrust | 2940N (300kg.f) |
| Impact thrust | 5880N(600kg.f) |
Q:Are your company a trading one or a factory?

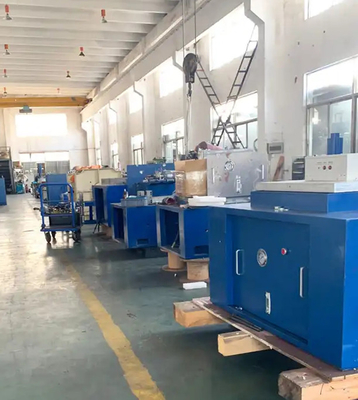

A:Factory + trade (integration),we have our own factory.
Q:Do you accept customization service?
A:Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.
Q:What is your product warranty ?
A:1Year warranty, but lifetime for services.
Q How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc.
