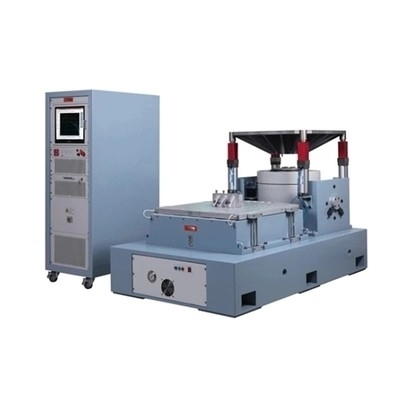

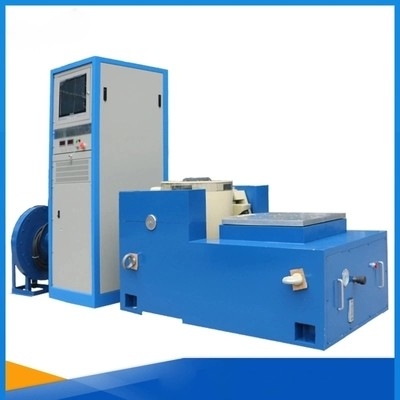

Shock And Vibration Testing Equipment , Anticorrosive Shaker Testing Device

Shock And Vibration Testing Equipment , Anticorrosive Shaker Testing Device

The temperature and humidity vibration three-combined test chamber mainly provides temperature and humidity change environment for scientific research and production units such as aerospace, aviation, petroleum, chemical industry, electronics, communication, etc. At the same time, the electric vibration stress can be applied to the test product in the test chamber at a prescribed period , For users to conduct a comprehensive stress screening test of temperature, humidity, and vibration on the whole machine (or parts), electrical appliances, instruments, materials, etc., in order to assess the suitability of the test sample or evaluate the behavior of the test sample. Compared with the effect of a single factor, it can more truly reflect the adaptability of electrical and electronic products to the changes of temperature, humidity and vibration in the environment of transportation and actual use, and expose the defects of products.

Vibration table configuration :

1. Air-cooling series electrical vibration system
2. Water-cooling series electrical cooling system
3. Digital random vibration controller
4. Digital sine vibration controller

Item	Specification
Electro-dynamic vibration generator system
Rated Force (peak) under sinusoidal	32KN
Impact thrust	64KN
Frequency range	200 Hz
Continuous displacement	59 mm p-p
Impact displacement	59 mm p-p
Maximum rated speed (sin peak)	2m/s
Maximum Acceleration (sin)	0.53 m/s²
Diameter of moving coil	445 mm
Allowable unbiased load torque	300 N•m
Equivalent mass of moving parts	301 g
Axial vibration isolation frequency	2.5 Hz
Maximum load for sample	500 kg
Magnetic flux leakage	<10 gauss
Vertical vibration tester size	4505×2500×840 mm(L*W*H, without package)
Vertical vibration tester weight	About5800 kg (without package)
Power amplifier
Maximum output power	32 kVA
S/N (Signal-to-noise Ratio) s-/N	≥65 dB
Rated output voltage	100 V
Conversion efficiency	≥90%
System protection	Output over-voltage, output over flow, amplifier over temperature, vibration table over displacement, horizontal slide over the displacement, cooling system failure, output power under-voltage, amplifier unit failure, excitation power failure, three-phase power supply failure, etc.
Power amplifier size	1720*1200*850 mm (L*W*H, without package)
Vertical spreading table
Table size	1100 *1100mm
Material	Aluminum alloy
Upper operating frequency	500Hz (Sine)
Fan
Fan power	15 kW
Blowing rate	22 m3/min
Vibration controller
Host hardware	2 analog voltage/IEPE/electric charge/TEDS(can be optional) input channel, built-in 24-bit ADC and IEPE constant current source and charge amplifier per channel, 32-bit floating-point DSP processor, 1 analog voltage output channel, 24 DAC resolution; rugged chassis design with emergency stop button and earthing terminal;
Control software	*Random control: Test bandwidth 1-5000hz, support multi-channel control strategy, random channel limit (notching) control, etc.
	* Sine control: Test bandwidth 1-5000hz, including constant frequency, stepping, sweep sine, support multi-channel control strategy, sinusoidal channel limit (notching) control, harmonic distortion measurement.
	* Typical impact: support electromagnetic requirements according to international standards.
	* Resonance search and reside
Acceleration sensor
The host hardware	Sensitivity 30pc/g, frequency response 0.5-7000hz, mileage 500g, weight 10g, side-end outlet, 6-meter-long dedicated low noise cable;temperature range -40°~160°
Computer
Model	LENOVO M4500
Configure	I3-4170-3.7GHz/DDR3-4GB/500GB/17 inches

Customer Support Services:

Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair
