Product Details:
|
| Insulation Material: | Fireproof PU Foam 110mm (150mm) | Humidity Range: | 5%-98%RH |
|---|---|---|---|
| Control Accuracy Of Temperature: | ±0.5℃ | Power: | AC380V |
| Certification: | CE, ISO | Temperature Range: | -40℃~180℃ |
| Control Accuracy Of Humidity: | ±3.5% R.H. | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

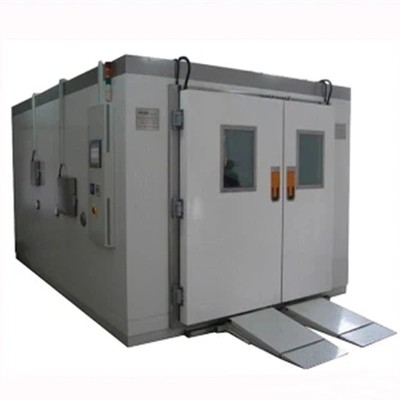

220/380V Walk-In High And Low Temperature (Wet And Hot) Laboratory OEM
Description:
The walk-in environmental laboratory is divided into (walk-in constant temperature and humidity laboratory, walk-in high and low temperature (humid heat) laboratory, walk-in aging room), which provides large parts, semi-finished products, finished products, temperature and humidity for the industry Environmental testing, such as: computer terminals, auto parts and furniture, electronic and electrical products, toys, batteries, displays, automotive electronics, power supplies, motherboards, monitors, exchange chargers and other products for constant humidity and heat in batches, suitable for It is suitable for testing equipment with a large number of products and large volume.
Feature:
1. The material of the library board is made of stainless steel and steel plate baking varnish, which has a strong structure, waterproof and beautiful appearance. The internal volume can be enlarged arbitrarily, easy to disassemble and assemble, and can be designed according to customer needs
2. LCD touch screen controller, display in Chinese and English, easy to operate.
3. The original imported compressor uses environmentally friendly refrigerant, and the refrigeration system adopts a binary low-temperature loop system design to increase the service life of the equipment.
4. Utilize the powerful air circulation system of the Doji-type blower to avoid any dead angles and make the indoor temperature and humidity evenly distributed.
5. With multiple expansion functions:
The control system is connected to the computer via the RS-232 interface, and the user can set programs on the computer screen, collect test data and records, call program execution, and remotely control machine switches and other functions. Specially designed low humidity dehumidification device, the lowest condition can reach 5ºC~5%RH. A temperature and humidity recorder can be added to provide the actual temperature record curve.
6. Complete safety protection device:
When an abnormal situation occurs, the controller screen automatically displays the fault status, cuts off the power switch, and provides troubleshooting methods.
Specifications:
| Inner chamber size w×h×d(cm) | Non-standard,depends on customers` specific requirements for customization | |||||
| Exterior chamber size w×h×d(cm) | ||||||
| Testing temperature range | 0℃,-20℃,-40℃,-60℃,+70℃,+80℃ | |||||
| Performance | Temp.fluctuation | ±0.3℃ | ||||
| humidity range | 30~90%RH | |||||
| Humidity uniformity | ±5℃%RH | |||||
| Temp.uniformity | ±3℃ | |||||
| Heat up time | 20℃~80℃≤50min | |||||
| Material | Exterior chamber material | Cold-rolled steel+Powder coating | ||||
| Interior chamber material | SUS#304 Stainless steel plate | |||||
| Insulation material | PU fiberglass wool | |||||
| System | Air circulation system | Cooling fan | ||||
| Heating system | SUS#Stainless steel high-speed heater | |||||
| Humidification system | Surface evaporation system | |||||
| Controlling system | Digital electronic indicator+SSR+PID | |||||
| Refrigeration system |
Imported tecumseh compressor+ fin type evaporator+air(water)condenser |
|||||
| Dehumidifying system | ADP dew point dehumidification method | |||||
| Other components | Multi-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable) | |||||
| Safety protection device | Over-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lamp | |||||
| Power supply | AC 3phase 380V 60/50Hz | |||||
| Customization service | Non-standard or special requirements are all welcome | |||||
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
