Product Details:
|
| Temperature Indication Resolution: | 0.1degree | Detachable Style: | -70~120 Deg C ; 20%~98%R.H When -70 To 65 Deg C |
|---|---|---|---|
| Control Accuracy Of Humidity: | ±3.5% R.H. | Temp.Rising Rate: | 0.1~3.0°C/min |
| Humidity: | 8%~98%R.H | Control Accuracy Of Temperature: | ±0.5℃ |
| Cooling System: | Water Cooling | Temp.Falling Rate: | 0.1~1.0°C/min |
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

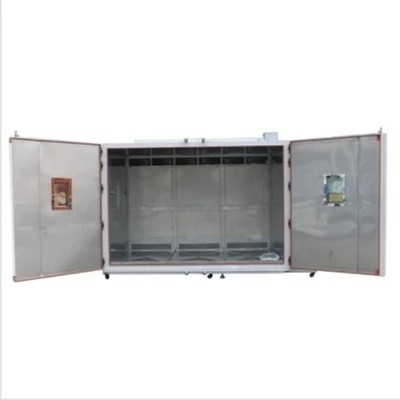

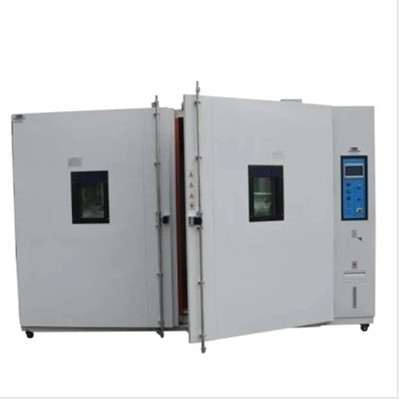

Food Accelerated Test Walk In Temperature And Humidity Environment Test Chamber
Air Supply Systems for walk in Walk In High Temperature Aging Test Room
1 Air Cycling Device: centrifugal fan, externally installed motor drive
2 Heating Mode: wire heaters made of a material called Nichrome; PID & SSR control
3 Cooling Mode: air/ water cooling
4 Humidification Mode: Stainless steel steam humidification; water purifier is provided for automatic water supply while being connected to the chamber
5 Dehumidification Mode: by compressor& de-humidify device
Climatic temperature Test chamber of construction:
1 Console Model Chamber:
1-1 The workspace is located at the left side or as to the user requirements;
1-2 Refrigeration unit cabinet located in the right side;
1-3 Electric control part is placed in the refrigeration unit cabinet, with operation panel on the front Chamber exterior is made of cold rolled steel with powder-painted, interior is stainless steel SUS304 #;
1-4 Thermal insulation material is flame retardant polyurethane rigid foam, of 100-150mm thickness.
2 Refrigeration Unit Cabinet:
2-1 Located in the right side of the chamber, and refrigeration compressors are installed on its frame,
2-2 Special door for maintenance & repair is provided.
2-3 Acoustical boards are used for lowing noise to maximum limit.
3 Chamber door:
3-1 Single door or double door, or according to customer's requirement
3-2 Silicon rubber is used for high sealing effect, high / low temperature resistance, anti-aging, and good Sealed performance.
4 Lighting Device: two interior lights of 12W/36V, moisture-proof & explosion-proof, can be directly manual switch controlled from the outside.
5 Chamber Bottom:
5-1 Height distance to the floor is 200mm; chamber base board is slightly slant with drain hole for letting out the condensed water.
5-2 Interior chamber floor contains many stiffeners, to enable the floor load capacity ≥500Kg / m2, wheel impact ability≥1MT;
5-3 Movable entry ramp is provided.
Technical Parameters:
| Model | low-temperature options : A ~ F |
| Inner Dimensions(cm) | Customers designated space size and design |
| Temperature Range | Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 80°C (80°C ~150°C is optional) |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) |
| Analytic Accuracy /Distribution Uniformity of Temperature& Humidity | 0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H. |
| Control Accuracy of Temperature and Humidity | ±0.5°C; ±2.5% R.H. |
| Temperature Rising /Falling speed Rate | Temperature rising approx. 0.1~3.0°C/min temperature falling approx. 0.1~1.0°C/min;( The Falling Speed Rate Min.1.0°C/min is a special optional condition) |
| Cooling System | Water cooling |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Slope for cart , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Brand |
| Power | AC 380 V,50/60HZ ,3ph 5 Lines |
Advantage:
1 Programmable control, touch screen operation
2. It can spray regularly, intermittently and evenly
3.24 hours online
4.Sample chamber of each model
5. Best price, fast delivery
6.OEM,ODM
7.Oversea offices
8.Own import and export business license
9.ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Need more info for Large environmental walk in chamber / walkin in stability chamber for lab test, please let us know,thank you
