Product Details:
|
| Cooling Rate: | Average 1°C/min | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Controller: | Programmable LCD Touch Screen | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| High Light: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

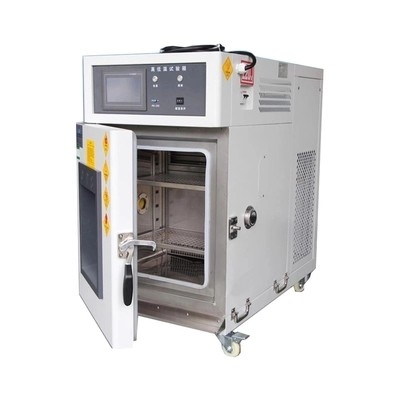

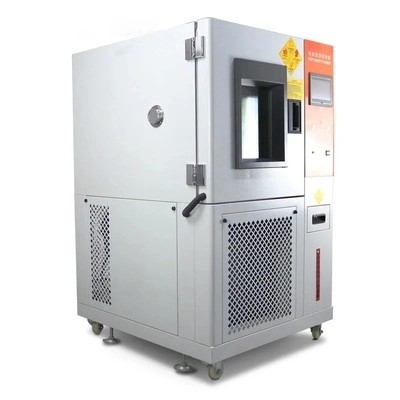

PID Control High Low Temperature Simulation Environmental Chamber Easy To Operate
Design and development:
We have extensive experience in the design and development of non-standard equipment according to the customer's specifications.
Industrial (laboratory) drying ovens, laboratory thermostats, various test climatic chambers, muffle (high-temperature) furnaces can be made according to your dimensions with a wide variety of characteristics and parameters.
It is intended for research and quality control of various materials, products, components, assemblies, structures, mechanisms, measuring instruments, etc. associated with temperature exposure at low temperatures down to -30 ° С and positive up to + 100 ° С and humidity from 10% to 98% at certain temperatures (on request).
It is used to simulate special operating conditions in laboratories of radio-electronic, mechanical engineering, food, chemical, pharmaceutical, etc. industries.
Working Principle:
This is so called Fast Shipping Thermal Shock Test Chamber,Thermal Chamber,Thermal Shock Chamber.
Sample is placed in the test chamber, more extreme temperature than test temperature can be set in high-temperature chamber and low-temperature chamber. When it comes to low temperature test, cold chamber door open, and low-temperature chamber working together with test chamber.
When converted into high-temperature test, cold chamber door closed, hot chamber door are opened, and test chamber working together with high-temperature chamber.
Conversion of mechanical action (transferring from high temperature to low temperature or low temperature to high temperature) can be completed in less than 1second, and the temperature can be quickly stabilized. During the whole test, test sample is no need to be moved, and without any human intervention.
| Size |
Inner size (W*H*D cm) |
40*50*40 | 50*60*50 | 60*85*80 | 100*100*80 | 100*100*100 |
|
Outer size (W*H*D cm) |
90*136*94 | 100*146*104 | 110*171*137 | 150*186*137 | 150*186*157 | |
| Performance | Control Methods | Balanced temperature humidity control system (BTHC) PID intelligent adjust | ||||
| Temperature and Humidity Range | -70°C~100 °C(150°C) ; 20%-98%R.H (A: -20°C B: -40°C C: -60°C D: -7°C) |
|||||
| Accuracy | ±1.0°C, ±2%RH / ±0.5°C, ±2%RH | |||||
| Resolution | ±0.1°C, ±0.1%.H / ±1°C, ±3%RH | |||||
| Heating Rate | ≤3°C/min | |||||
| Cooling Rate | Average 1°C/min | |||||
| Internal Material | SUS#304 stainless steel | |||||
| External Material | SUS#304 stainless steel or Antirust processing cold-rolled steel sheet(Spray) | |||||
| Insulation Material | Superfine wool + polyurethane foam | |||||
| Regulator | Cooling Mode | Mechanical binary refrigeration way | ||||
| Compressor | Closed compressor (French Tecumseh or German Copeland ) | |||||
| Refrigerant | R23/R404A | |||||
| Condensing Way | Air-cooling and Water-cooling | |||||
| Humidifier | Stainless steel humidifying tube | |||||
| Airflow Way | Broadband-type forced air circulation | |||||
| Controller | Operate Interfaces | Korea TEMI 880 LCD touch screen | ||||
| Memory capacity | 120 groups, each program 100 segment | |||||
| Input | PT100 or T thermocouple | |||||
| Communicate Interface | RS-232 | |||||
| Subsidiary function | Upper and lower alarm; self diagnosis ; alarm display(fault cause); time sequence protection (Automatic turn on or turn off ) | |||||
| Water supply | Water supply | Circulating water supply | ||||
| Water tank | Built-in hand type(30Kg capacity) | |||||
| Water quality | resistance >500Ω.m | |||||
| Standard Configuration | One observe window(Double hollow toughened glass);one test pattern D50mm(on the left); 2 layers sample frame; one floodlight(fluorescent lamp);one water feeding tank; | |||||
| Safety device | Power leakage protection; Dry heating protection; Water system protection Over-temperature protection switch; Temperature deviation alarm, Compressor Overpressure; overload; Water shortage; Phrase shortage, etc. | |||||
Corresponding Standard:
GB11158 GB10589-89 GB10592-89
GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001
GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93
ASTM D1735 EIA - 364-59 IEC60068-2-1.1990
IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
- A variety of industrial and laboratory drying ovens;
- Muffle and chamber furnaces;
