Product Details:
|
| Features: | Precise Control Frequency | Customized Support: | OEM, ODM, OBM |
|---|---|---|---|
| Keyword: | Vibration Testing Machine | Warranty: | 1year |
| Suitable For: | Toys, Electronics, Furniture, Gift | Test Standard: | ISO 2247 |
| Authentication Certificate: | CE | Band: | GASK |
| High Light: | Vibration Tester,Vibration Test Machine |
||

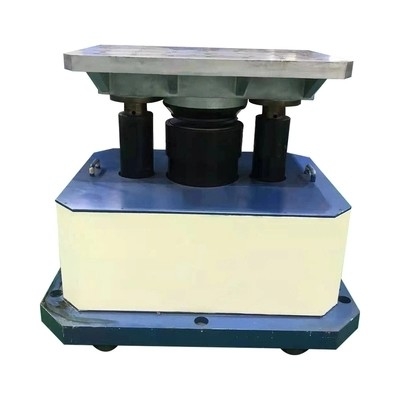

Fixed Frequency Sweep Vibration Testing Machine For Toys Electronics
Introduction:

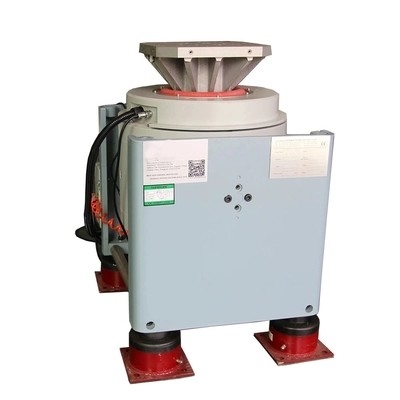

Electromagnetic vibration table is widely used in automotive parts, instrumentation, toys and other industries of product design, research and development, manufacturing process
In order to test the actual working condition and structural strength of the product, the collision and vibration generated in the transportation and use of the product are simulated.The control system adopts the color liquid crystal display with high sensitivity, direct touch option, intuitive and simple setting of test parameters, timely displaying the current execution program, timely displaying the current vibration frequency, and drawing frequency curve function.
Performance characteristics:
- Forced air cooling
- Random and sinusoidal excitation force 1:1
- Displacement peak-to-peak value up to 100mm
- The trunnion airbag has good isolation effect
- Double magnetic circuit design, low magnetic flux leakage, uniform magnetic field
- Sinusoidal excitation force range: 1kN ~ 70kN
- Double sinusoidal impact force (three times more than 2 tons)
- Light dynamic coil, optimized design, strong vibration resistance
- The center airbag has strong carrying capacity and good low frequency performance.
- Configurable horizontal slide
- The fan has good cooling effect and low noise
- The frequency of use can start from 1Hz
Test Standard:
ISO 2247 packaging - full - loaded transport packaging and unit cargo - fixed low frequency vibration test
ISO 13355 packaging - all, packed transport packaging and unit load - vertical random vibration test
IEC 60068 basic environmental test procedure
ASTM D999 test method for vibration test of shipping containers
ASTM D4728 random vibration test method for transport containers
ASTM D3580 standard for vibration test of products (vertical linear motion)
GB/T 4857 basic test of packaging and transportation packaging parts
GB/T 2423 environmental test for electrical and electronic products
Specification:
| Model | GSKA011-A | GSKA011-B | GSKA011-C |
| Frequency Range (Hz) | 5~400 | 5~600 | 5~3000 |
| Product load(Kg) | 50 | ||
| Frequency accuracy | 0.01 Hz | ||
| Maximum acceleration | <20g | ||
| Amplitude(mm) | 0.001-5 | ||
| Vibration mode | electromagnetic | ||
| Amplitude modulation mode | Electronic amplitude modulation | ||
| vibration direction | Vertical+Horizontal | ||
| vibration waveform | Sine wave | ||
| Test mode | Fixed frequency, sweep frequency, double frequency, program, logarithm, random | ||
| Time set | 0-9999H/M/S | ||
| Work table size | 500×500mm | ||
| Power(V/Hz) | 220/50±5% | ||
| Rate of power(KVA) | 3.2 | ||
| Cooling mode |
Air cooling |
||
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
