Product Details:
|
| Material: | Stainless Steel | Humidity Range: | ≥75%RH |
|---|---|---|---|
| Power: | Electronic | Lamp Power: | 40W/Piece |
| Air Pressure: | 86~ 106Kpa | Irradiation Black Panel Temperature: | 50°C~70°C |
| Brand: | GASK | Authentication Certificate: | CE |
| High Light: | UV Testing Equipment,Accelerated UV Testing Equipment |
||

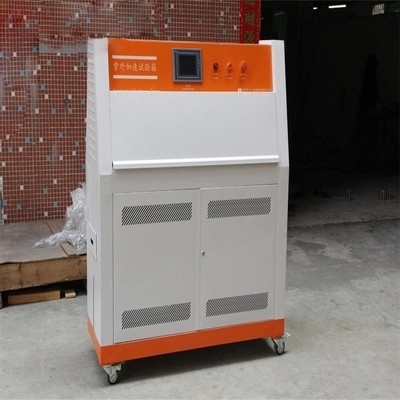

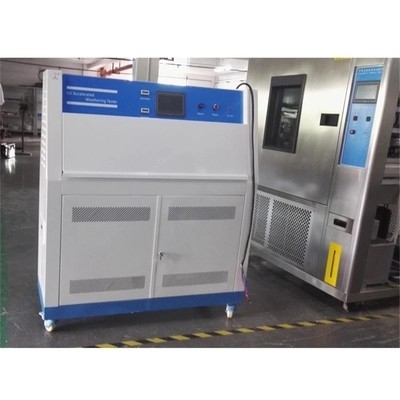

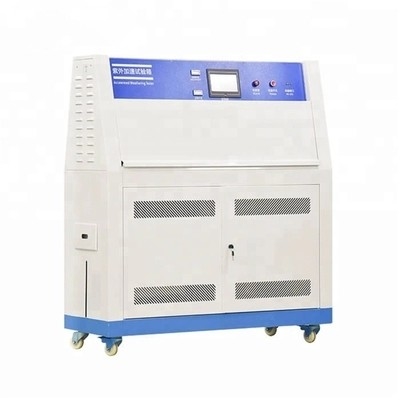

Automatic Control Of Humidification Water Supply Uv Testing Equipment UVA - 340 Tubes
Product application:
This series uses fluorescent ultraviolet lamp as the light source, by simulating the ultraviolet radiation and condensation in natural sunlight, to accelerate the weatherability test of the material, in order to obtain the results of the weatherability of the material. Can simulate the natural climate of ultraviolet, rain, high temperature, high humidity, condensation, dark and other environmental conditions, by reproducing these conditions, combined into a cycle, and let it automatically complete the cycle times. This is how the UV aging test chamber works.
Control system:
The black aluminum plate is used to connect the temperature sensor, and the blackboard temperature meter is used to control the heating, so the temperature is more stable. Radiometer probe adopts fixed type, no need to load and unload each time.
The radiation quantity adopts the special ultraviolet irradiometer with high precision display and measurement.
The radiation is not more than 50W/m2.
Illumination and condensation can be controlled independently and in alternating cycles.
The independent control time for light and condensation and the alternating cycle control time can be set arbitrarily within 1000 hours.
| Rubber Programmable Accelerated Weathering UV Aging Test Chamber Technical Parameters | ||
| Model | GSKA-UV-280 | |
| Internal Dimension W*H*D (cm) |
115*50*40 | |
| External Dimension W*H*D (cm) |
150*150*55 | |
| Applicable Standard | GB/T16422,GB/T5170.9 | |
| Temperature Range | R.T.+10degree C~+70degree C | |
| Temperature Fluctuation | ±0.5degree C | |
| Humidity Range | ≥95%R.H. | |
| Environmental Temperature for Use |
+5degree C~+35degree C | |
| Test Light Source | UVA,UVB UV light | |
| Wave Length of Test light Source (nm) |
280~400 | |
| Center Distance between Sample and Tube (mm) |
50±2 | |
| Center Distance Between Tubes (mm) |
75±2 | |
| Material of Internal Case | Stainless steel with sanding polish | |
| Material of External Case | Stainless steel with sanding polish or painting coated | |
| Heating and Humidifier | Electric-heat type steam generator ,heating and humidification | |
| Safety System | Operation Interface | Digital smarts touch key input (Programmable) |
| Running Mode | Program/constant running type | |
| Input | Black panel thermometer.PT-100 Sensor | |
| Standard Configuration | 1 pc Stainless steel shelves | |
| Safety Configuration | Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection | |
| Power | AC220V 1phase 3 lines, 50HZ | |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Package: Standard export wooden case, plywood case or according to customer's requirement.
