Product Details:
|
| Material: | 304 Stainless Steel | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Controller: | Programmable LCD Touch Screen | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| Highlight: | Temperature Humidity Test Chamber,Temperature Humidity Chamber |
||

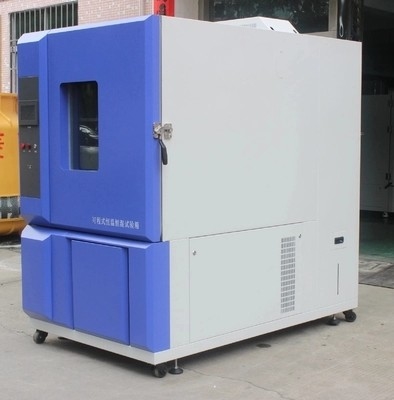

Dustproof 220V Thermal Cycling Test Equipment 3 Phase Thermostatic
Product Description:
One kind of environmental test equipment, applicable to temperature-humidity test of mini electrical, instrumentation, automotive, aerospace, electronic chemicals, materials components, and aging test, the temperature and humidity chamber adopts the most reasonable structure and most stable control method that adds value to its good appearance, easiness to operate,safeness and high-precision temperature and humidity control. It is ideal for temperature and humidity test with GB,GJB,ASTM standards met. In testingprocedure, the chamber achieves fully-automatic control of cooling, heating,dehumidification, humidification and adding water, which enable the chamber tooperate in comprehensive environmental test with temperature-humidityinvolved.
| Shock Temperature ragne | -65°C~150°C |
| Heating up time | RT~200°C about 35min |
| Cooling down time | RT~-70°C about 90min |
|
Temp recover time/ change time |
≤5min / ≤10sec |
| Temp control accuracy/ | ±0.5°C / ±2.0°C |
| distribution accuracy | |
| Inner materials | SUS 304# stainless steel plate for inner chamber,and stainless steel plate |
| + spray painting for external chamber. | |
| Insulation materials | High-temperature high-density amino acid ethyl ester foam insulator material. |
| Systems | P.I.D+S.S.R+Microcomputer balanced temperature control system. |
| Cooling systems | Semi-hermetic two-stage compressor (water-cooled) / |
| hermetic two-stage compressor (air-cooled). | |
| Safety devices | Fuse switch, high and low pressure protection switch compressors, |
| refrigerant pressure protection switch failure warning system, electronic siren. | |
| Fitting | Outlook window (special purchase), the upper and lower adjustable |
| compartment two energized measured line hole, casters,level bracket. | |
| Power | 3 phase AC380V 50HZ/60HZ |
| Controller | Tanwan TATO or TH900C |
| Compressor | Germany / Bock Brand |
The standard body has a technological hole with a diameter of 50 mm (optional additional technological holes up to 100 mm).
| Serial number | Volume | Inner size D*W*H |
Temperature range | Humidity range | Power 50hz/total rate (to be determined) |
| 01 | 80L | 400x400x 500 | 00~150°C 20~150°C -40~150°C - 50~150°C -60~150°C - 70~ 150°C Selected according to test requirements |
30~ 98%
|
220V/5 KW |
| 02 | 100L | 400x500x 500 | 220V/6KW | ||
| 03 | 150L | 500x500x 600 | 220V/6.5KW | ||
| 04 | 225L | 600x 500x750 | 220V/7KW | ||
| 05 | 408L | 800x 600x850 | 220V/7.5KW | ||
| 06 | 800L | 1000x800x1000 | 220V/7.5KW | ||
| 07 | 1000L | 1000x1000x1000 | 220V/8KW | ||
| Main indicators | a Temperature fluctuation: ≤±0.5°C, temperature uniformity: ≤+2°C b Humidity error: ≤+2%/-3%R.H c Cooling rate: 0.7~1°C/min, heating rate: 2~3°C/min d Temperature change test chamber: cooling 3~5°C/min, heating 3~5/min e Noise (dB)≤65 (all above are no-load) |
||||
How a Humidity Chamber Works
The main components of a humidity chamber are mechanisms that introduce moisture and heat. There are a variety of methods used to introduce moisture into the chamber, which can be in the form of a spray or bath. The same concept applies to heat that is supplied in the form of coils or heating elements.
In most cases, humidity chambers are designed, manufactured, and produced to fit the setting that the customer requires. Though there are many varieties of chambers, the basic components of heat and moisture are necessary to create the needed humid conditions.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
- A variety of industrial and laboratory drying ovens;
- Muffle and chamber furnaces;
Pre-sale service:
1. One-on-one pre-sales consulting service to answer your questions
2. Recommend the right products for your needs
3. Visit factory support
After-sale service:
1. All of our products have one year free warranty.
2. We have a professional after-sale solution team to solve your probelm
3. Provide technology support
4. If necessary, home repair
