Product Details:
|
| Body Materials: | Stainless Steel Plate | Equipment Power: | AC Invertors Motor |
|---|---|---|---|
| Max Load: | 100KG | Uses: | Package Transport Simulation Vibration Table |
| Amplitude: | 25mm | Effective Work Table Size: | 1000*1000mm |
| Band: | GASK | Authentication Certificate: | CE |
| Highlight: | Vibration Tester,Vibration Test Machine |
||

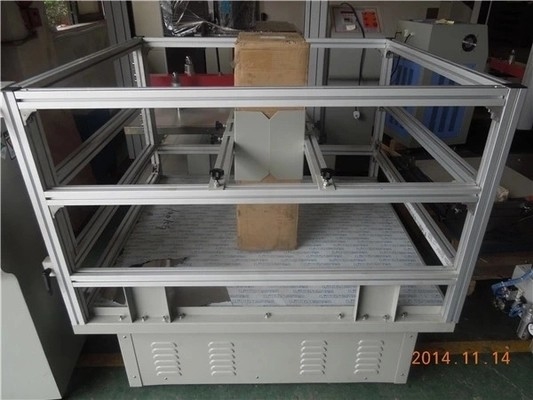

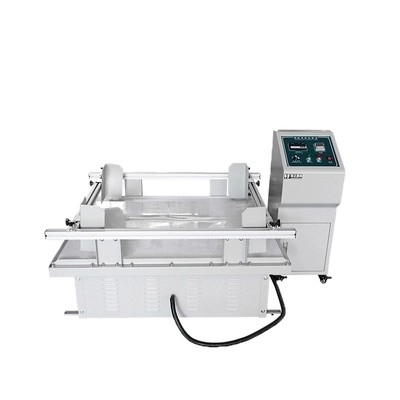

Carton Packaging Vibration Test Equipment For Simulation Transportation OEM
Uses:
Carton vibration testing machine provides the vibration environment of products in the process of manufacturing, transportation and use, and identifies whether the product has the ability to withstand this environment. It is used to find early faults, simulate the actual working condition assessment and structural strength test. Mainly used for all kinds of small and medium-sized corrugated cartons compressive strength test or other materials made of compressive strength less than 10KN packaging containers of the whole box compressive strength testing and testing, such as food and beverage instant noodles packaging, cosmetics packaging, beer packaging, grain and oil packaging and so on. The testing machine has the standard included in the parameters of the test, display, memory, statistics, printing and compression curve real-time display and other functions. With data processing function, can directly get the statistical results of each data, with automatic reset and fault diagnosis function, easy to operate
Edit the broadcast using features:
1. electronic control, vibration frequency, amplitude adjustable, driving force, small noise.
2. high efficiency, high load, high frequency width, low fault.
3. the controller is easy to operate, fully closed, extremely safe.
4. Efficiency vibration pattern.
5. mobile work base, easy to place, beautiful and generous.
6. suitable for production line, assembly line to do full inspection.
Specification:
| Oscillation Frequency: | 100~300rpm(adjustable) |
| Amplitude: | 25mm |
| Vibration Mode: | Rotary Vibration(Vertical) |
| Max load: | 100KG |
| Digital Display Precision: | 0-999H99M |
| Equipment Power: | AC Invertors Motor |
| Equipment Structure: | Anti-Vibration Pads,Aluminum Adjustment Holder,Aesthetic. |
| Effective Work Table Size: | 1000*1000mm |
| Volume: | 132*110*81(w*d*h)cm |
| Weight: | About 300kg |
Standard Compliance:
1. IEC68-2-1 (GB2423.1-2008)
2. IEC68-2-2 (GB2423.2-2008)
3. IEC68-2-3 (GB2423.3-2006)
4. IEC68-2-30 (GB2423.4-2008)
5. IEC68-2-14 (GB2423.22-2008)
6. MIL-STD-810D (GJB150.3A-2009)
7. MIL-STD-810D (GJB150.4A-2009)
8. MIL-STD-810D (GJB150.9A-2009)
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
